Product Core Brief

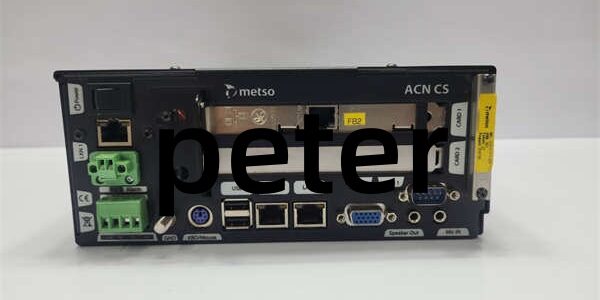

- Model: D201925 (ACN CS embedded main controller)
- Brand: Metso Automation (legacy Valmet MasterPiece 2001 DCS pulp & paper control platform)
- Series: ACN CS Industrial Controller Family ⚠️ Fully Discontinued EOL, only new original surplus / factory refurbished spare stock available
- Core Function: Main central processing unit for MasterPiece 2001 paper mill DCS racks; executes real-time closed-loop process control logic, hosts mill recipe databases, exchanges data with PMM personality modules, HMI stations, field I/O racks and variable speed drives via multi industrial communication ports
- Product Type: Rack-mounted hot-swappable embedded main CPU controller unit
- Key Specs: 32-bit high-speed RISC processor | 256MB RAM + 256MB non-volatile Flash storage | Dual 10/100Mbps Ethernet, RS232/RS485 serial, VGA HMI output | 18–36VDC backplane power | Native matching with D200175 PMM personality memory module | Condition: New Original Surplus / Factory Refurbished
Product Introduction
The Metso ACN CS controller is the primary master CPU unit for all Metso MasterPiece 2001 distributed control systems, deployed exclusively on pulp, paper, tissue and board production lines to control headboxes, calenders, reel winders and stock preparation loops. It relies on paired D200175 PMM personality modules to store unique mill tuning parameters, control logic and fault event history; without a matched PMM, the cannot complete boot-up or run closed-loop process control.This embedded controller integrates multi-port communication to offload HMI visualization, SCADA remote access and field Modbus device communication without backplane bus congestion. It differs from generic PLC CPUs via paper-industry optimized real-time control algorithms and seamless interoperability with MasterPiece D series I/O cards. OEM reliability testing records an MTBF of 92,000 operating hours under standard 40°C cabinet ambient.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full Model Identity | = ACN CS Main Embedded Process Controller for MasterPiece 2001 DCS |
| Core Processing Unit | 32-bit high-speed real-time RISC industrial processor |
| Onboard Memory | 256 MB RAM for runtime logic; 256 MB Flash non-volatile storage for firmware & logs |
| Power Supply Range | 18–36 VDC nominal 24 VDC cabinet backplane; max steady-state power consumption 15 W |
| Integrated Interfaces | 2 × 10/100 Mbps Ethernet RJ45; 1 × RS232; 1 × configurable RS485; 1 × VGA HMI display port; 2 × D-Sub I/O expansion slots |
| Supported Industrial Protocols | Modbus TCP, Modbus RTU, proprietary MasterPiece DCS backplane bus, OPC DA client/server |
| Hot-Swap Functionality | Live rack replacement; maintains safe-state hold logic during swap without full process shutdown |
| Operating Ambient Temp | -20°C to +60°C cabinet mounting; storage -40°C to +85°C |
| Built-In Protection Circuits | Overvoltage, undervoltage, reverse polarity, ESD surge, short-circuit protection for all communication ports |
| Form Factor | Standard 3U single-slot Eurocard vertical rack mount for MasterPiece 2001 control cabinets |
| Mechanical Dimensions | 305 mm L × 235 mm H × 68 mm D; total unit weight approx. 3.0 kg |
| Safety Compliance Certifications | CE, UL, RoHS, SIL2 functional safety qualified for pulp & paper continuous process control |
| Mandatory Matching Accessory | D200175 PMM Personality Memory Module (required for complete controller operation) |
| Primary Industry Application | Paper machine closed-loop speed, tension, basis weight and moisture control loops |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross serial batch codes against original Metso factory production manifests to filter counterfeit aftermarket copies. Visually inspect backplane gold edge pins, Ethernet/serial/VGA port jacks, PCB solder joints and front panel status LED lenses for scratches or deformation.
- Live Functional Test: Insert into a complete MasterPiece 2001 test cabinet with matched D200175 PMM personality module. Upload standard paper mill process logic, run a 24-hour continuous soak cycle with cyclic recipe switching and fault log recording; log CPU runtime stability and all communication link uptime hourly.
- Electrical Parameter Test: Use a 500 V Megger insulation tester to verify isolation resistance between all signal ports and chassis ground; pass threshold >10 MΩ. Validate under/overvoltage lockout protection and ESD surge tolerance on all Ethernet and serial communication ports.
- Firmware & Personality Compatibility Verification: Read onboard controller firmware revision via Metso MasterTool configuration software; record build version and cross-check compatibility matrix with target D200175 PMM firmware versions. Photograph front-panel DIP switch bus termination settings for on-site commissioning reference records.
- Final QC & Packaging: Place controller inside anti-static ESD foam packaging with plastic dust caps covering all communication and expansion ports. Affix dated QC Pass sticker listing insulation resistance test data and total soak runtime before warehouse storage.
Replacement Pitfall Guide
❗ PMM Module Mismatch Risk: The cannot boot or execute process logic without a matched D200175 PMM personality module. Mismatched PMM part numbers trigger permanent controller boot failure and full production safe stop.❗ Mill Personality Logic Migration Risk: Simply swapping a spare without cloning the original mill-specific recipes, loop tuning parameters and fault history from the old PMM will lead to severe paper quality deviation and continuous process alarm trips. Full backup/restore via MasterTool software is mandatory before commissioning.❗ RS485 Serial Bus Termination DIP Switch Misconfiguration Risk: Field Modbus RTU bus endpoints require enabled onboard termination resistors via DIP switches. Unmatched termination creates signal reflection noise and intermittent transmitter/drive communication dropout.❗ Backplane Power Headroom Miscalculation Risk: A fully loaded draws peak 15 W from the cabinet 24VDC backplane. When multiple CPU + PMM + I/O modules operate simultaneously, size cabinet power supplies with 20% overhead; underrated supplies trigger controller undervoltage lockout and recipe data loss.❗ ESD Damage Risk: Exposed backplane edge connectors and all RJ45/VGA serial ports are highly ESD sensitive during cabinet disassembly. Use a grounded anti-static wrist mat during controller swapping in low-humidity workshop environments; static discharge corrupts onboard flash storage and generates uncommanded logic freeze faults.Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- PMM Personality Memory Module → : Direct Mandatory Match — Native backplane pinout matching, zero cabinet mechanical modification required for full controller operation
- MasterPiece 2001 DCS Pulp/Paper Control Cabinets → : Native Platform Matched — Designed exclusively for paper machine process control rack architecture
- MasterPiece D Series AI/AO/DI/DO I/O Cards → : Indirect Compatible — Coexists in same rack, communicates via proprietary DCS backplane bus
- Newer Metso DNA / Advant 400 DCS Controllers → : Incompatible — Different backplane bus architecture and communication protocol, cannot intermix hardware
Benchmarks
- Full mill personality logic load time from PMM flash: ≤1.2 seconds on controller power-up
- Modbus TCP maximum register throughput: 7,200 reads/writes per second under full recipe logging and HMI load
- Continuous idle power consumption: 7.8 W; peak full communication + logic execution power draw: 14.5 W
