Product Core Brief

• Full Model: /010-011
• OEM Material Part Number: 9200-00097 (factory unique inventory/material code for this exact variant)
• Brand: EPRO (Emerson Machinery Health, Germany)
• Series: differential Hall speed/key phase sensor, matched exclusively with A6312 dual-channel speed rack monitor for A6000 / MMS6000 turbo machinery protection systems
• Model Code Breakdown = Dual differential Hall chip active pulse pickup (supports true zero-speed detection, no low-speed signal loss)/010 = 1 meter factory pre-integrated stainless steel armored braided cable-011 = Molded standard multi-pin D-Sub plug terminal, unified pin definition for direct wiring to A6312 rear terminal block9200-00097 = Internal factory material part number, used for procurement, warehouse stock & OEM order identification, identical hardware to /010-011
• Core Function: Non-contact differential Hall transducer, captures gear-tooth square-wave pulse signals to calculate real-time shaft RPM, zero-speed standstill interlock, rotation direction discrimination and key-phase reference signal for steam/gas turbines, centrifugal compressors and large blowers SIL overspeed safety protection loops, fully API 670 compliant

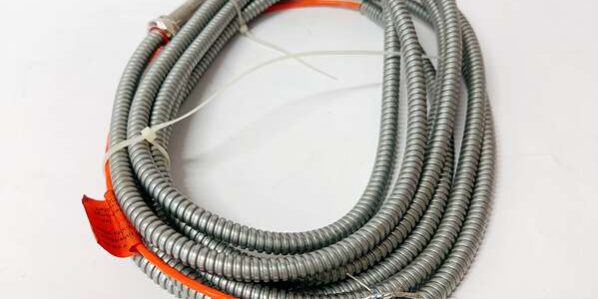

• Product Type: Complete armored cable speed probe assembly (M12 stainless sensing head + 1m anti-abrasion metal armored cable + molded D-Sub multi-pin plug)
• Key Specs: M12×1 mounting thread, dual differential Hall internal circuit; 1m stainless steel armored oil-resistant cable; 0–20kHz pulse frequency bandwidth; -40℃~+100℃ wide operating temperature; differential anti-EMI square wave output, dedicated input for A6312 rack monitorNote: Fully discontinued end-of-life machinery monitoring hardware, stocked as unopened factory new surplus; cannot be paired with PR6423 series CON021 eddy current preamplifiers, only compatible with A6312 speed monitor.



Key Technical Specifications



/010-011 (9200-00097) Sensor Assembly

1. Mechanical Structure

• Mount thread: M12 × 1 stainless steel cylindrical housing
• Sensing head diameter: 12mm, optimized for standard module steel gear tooth targets
• Integrated cable length: 1m continuous stainless steel outer armored braided cable (anti-scratch, lubricant oil splash resistant, anti-vibration friction damage)
• Cable suffix -011: Integrated molded multi-core D-Sub plug, fixed pinout matching A6312 rear terminal definition
• Minimum cable bend radius: ≥40mm; sharp small-radius bending permanently deforms metal armor and fractures internal signal wires
• IP rating: Sensing head IP67; armored cable IP68 resistant to oil mist, dust and mechanical impact

2. Electrical & Measurement Performance

• Working principle: Dual differential Hall half-bridge circuit, eliminates single-Hall magnetic drift, maintains complete stable pulse waveform even near 0 RPM (zero-speed standstill detection capability)
• Excitation supply voltage: 8–31.2 VDC (24VDC nominal, powered internally by monitor)
• Operating current: ≤20mA @ 24VDC
• Output signal: Differential push-pull square wave pulse, high common-mode EMI suppression
• Frequency bandwidth: 0Hz ~ 20kHz, maximum measurable shaft speed up to 65535 RPM
• Configurable gear tooth range: 1–255 teeth settable via service software
• Speed measurement accuracy: ≤±0.1% full scale, repeatability ≤±0.05% FS
• Recommended installation air gap: 1.0–1.5mm for standard carbon steel gear targets; stainless steel gears reduce signal amplitude and require gap reduction adjustment
• Minimum target gear tooth width: ≥2mm carbon steel ferromagnetic material

3. Thermal & Environmental Limits

• Sensing head continuous operating temperature: -40℃ ~ +100℃; short-term peak +110℃
• Metal armored cable temperature rating: -40℃ ~ +100℃
• Storage temperature: -40℃ ~ +100℃
• Vibration resistance: 50g peak continuous vibration at 60Hz bearing housing mounting
• Ambient humidity: 5%–95% non-condensing, resistant to turbine oil mist machinery house environments
• Hazardous certification: FM Class I Div 2 Groups A/B/C/D cabinet mounting certified; CE compliant



Matching Speed Monitor Reference Parameters

• Dual galvanically isolated pulse input channels, native support for Hall-effect probes
• Rack power: Dual redundant 24VDC supply for fault-tolerant protection
• Per-channel outputs: Isolated SPDT dry-contact alarm relays (overspeed / underspeed / zero-speed / sensor fault); isolated 4–20mA analog RPM trending signal
• Configuration interface: Front Mini-DIN RS232 local service port; rear RS485 fieldbus for long-term speed historical data upload
• Form factor: Single-slot 3U hot-swappable rack module for A6000 19” standard chassis



Combined Mechanical Data

• /010-011 (9200-00097) assembly net weight: ~0.21kg
• module dimensions: 128mm H × 25mm W × 160mm D



Product Introduction

This 1m stainless steel armored differential Hall speed pickup (material code 9200-00097) is the standard factory-specified pulse sensor for EPRO A6000/MMS6000 turbine overspeed SIL protection systems, widely deployed in thermal power plant steam/gas turbines and petrochemical large centrifugal compressors.Compared with traditional single-coil passive magnetic speed probes, the dual differential Hall internal design solves low-speed missing-pulse defects during unit startup/shutdown, achieving reliable zero-speed standstill interlock protection and avoiding blind speed measurement faults critical to turbine safety trips.The /010 1m factory pre-assembled metal armored cable is purpose-built for bearing housing areas with dense lubricating oil pipelines and frequent maintenance mechanical friction; stainless steel armor outer sheath prevents cable sheath scratch, oil corrosion and abrasion, extending service life in harsh machinery house environments. The molded -011 D-Sub multi-pin plug unifies wiring pin definition, eliminating on-site cable stripping and core terminal processing work, reducing field wiring error risks and maintenance downtime.It transmits differential anti-interference pulse signals to the rack monitor, which converts gear-tooth frequency into real-time shaft RPM values and triggers independent overspeed/zero-speed alarm relay contacts to output safety trip interlock signals to plant DCS control logic, while providing isolated 4–20mA analog speed signals for continuous long-term trending recording.Typical application scenarios: Main turbine shaft redundant overspeed measurement, compressor rotor zero-speed standstill interlock, unit startup key-phase signal collection for rotor vibration phase analysis.



QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference OEM serial batch logs and material code 9200-00097 label; inspect M12 sensing head surface for scratches, metal armor deformation, cracked molded D-Sub plug shell and internal pin bending; verify original ESD anti-static factory packaging and CE certification seal integrity.
2. Live Bench Functional Testing: Mount probe on adjustable gear rotation test jig, powered by Fluke stabilized 24VDC regulated supply paired with monitor; run 24-hour continuous full RPM sweep test from 0–20kHz, validate complete differential pulse waveform integrity, overspeed/zero-speed relay trip logic and linear 4–20mA analog RPM output.
3. Electrical Insulation Test: Megger insulation resistance >10MΩ between signal cores and armor shielding ground; perform cyclic cable bending vibration test to confirm molded D-Sub plug maintains stable differential pulse without intermittent signal dropout.
4. Parameter Configuration Backup: Archive factory default parameter template (gear tooth count, overspeed trip threshold, pulse filter window) for field maintenance reference; record D-Sub plug pin mapping polarity.
5. Final QC Packaging: Attach serialized printed test pass tag listing speed linearity and pulse waveform test results; coil the 1m armored cable with foam separators to avoid armor extrusion deformation; seal full probe assembly in foam-lined static-shielded bag for warehouse storage and transit protection.



Installation Pitfalls & 4-Step Replacement Guide

❗ Hardware Matching Risk: /010-011 (9200-00097) Hall sensor only supports speed monitor input channels; cannot connect to PR6423 series CON021 eddy current preamplifiers, mismatched front-end hardware will output no valid pulse signals.❗ Air Gap Misadjustment Risk: Standard installation nominal gap =1.0~1.5mm; gap exceeding 2mm weakens differential pulse amplitude, causing missing gear tooth counts and false overspeed safety trip faults on SIL-rated protection loops.❗ Armor Cable Bending Damage Risk: Strictly maintain ≥40mm minimum bend radius at all routing points; repeated small-radius bending permanently crushes internal multi-core signal wires leading to intermittent speed signal dropout during turbine vibration.❗ EMI Interference Risk: Route the full 1m armored cable completely separated from VFD high-current motor power cables; parallel power wiring distorts differential pulse waveform and triggers random abnormal speed alarm jumps on DCS monitoring screens.❗ ESD Circuit Damage Risk: Ungrounded technicians touching molded D-Sub plug pins damage internal differential Hall chip circuitry; latent ESD damage causes slow pulse attenuation that surfaces after 2–4 weeks of continuous turbine runtime.

4-step replacement guide:

1. Pre-install LOTO: Lock out rotating turbine machinery and A6000 rack dual 24VDC power supply; attach grounded anti-static wrist strap to cabinet DIN rail ground bus; photograph original probe mounting thread depth and molded D-Sub plug wiring pin mapping for reference.
2. Removal: Unscrew legacy M12 probe from gear tooth mounting bracket; carefully uncoil the 1m armored cable maintaining ≥40mm minimum bend radius; disconnect molded D-Sub multi-pin plug from rear terminal block, label all power and signal wiring terminals.
3. Hardware Install: Thread new /010-011 (9200-00097) probe into mounting bracket; adjust lock nut to set 1.2mm nominal air gap measured via precision feeler gauge; route metal armored cable away from high-current power pipelines, avoid sharp metal flange edges scratching armor outer layer; insert molded D-Sub plug into rear terminal block following original pin polarity, fasten cable fixing clip to eliminate vibration pull force on plug pins.
4. Power-on Validation: Restore rack power supply; simulate full gear-tooth RPM sweep test from 0–20kHz, verify complete stable differential pulse waveform; access /DCS monitoring screens to confirm accurate real-time RPM reading, no missing tooth counts, overspeed relay trip activation and stable 4–20mA analog speed output without noise-induced false fault alerts.



FAQ

Q: What does 9200-00097 stand for?A: 9200-00097 is EPRO’s internal factory material part number, used for procurement, warehouse stock management and OEM order tracking; the physical hardware, wiring, parameters and compatibility are 100% identical to /010-011, they are two labels for the exact same sensor.

Q: Can /010-011 (9200-00097) complete both speed measurement and key-phase signal collection at the same time?A: Yes. Install a single trigger tooth on the shaft to generate one pulse per revolution as key-phase reference signal for rotor vibration phase analysis; multi-tooth gear targets are used for continuous high-precision RPM calculation.

Q: What is the core difference between Hall speed probe and PR6424 eddy speed pickup?

1. (9200-00097): Active differential Hall sensor with built-in excitation circuit, outputs square-wave pulse, supports true zero-speed detection, requires dedicated speed monitor
2. PR6424+CON021: Passive eddy current displacement probe, outputs analog gap voltage, no pulse shaping circuit, cannot reliably measure near-zero shaft rotation speed

Q: Does the rack monitor support hot-swapping while the A6000 chassis remains fully energized?A: The module is rated hot-swappable, but the molded D-Sub plug wiring must be fully disconnected before extracting from the rack slot; live wire disconnection generates inductive voltage spikes that damage internal pulse comparator circuits.

Q: What warranty coverage applies to bench-tested surplus /010-011 (9200-00097) sensors?A: All stocked assemblies carry a 12-month functional warranty covering differential Hall chip, metal armored cable integrity, molded D-Sub plug and pulse output circuit defects. Damage caused by improper air gap adjustment, excessive small-radius cable bending, unshielded EMI wiring, reversed excitation power polarity or ungrounded ESD handling is excluded from warranty coverage.

Q: Is there a direct drop-in modern replacement for the discontinued series with material code 9200-00097?A: Emerson’s current AMS speed pickup series provides equivalent differential Hall pulse performance, but M12 mounting thread armor cable structure, molded D-Sub plug pin definition and rack input signal voltage level differ; full cabinet wiring re-termination and turbine overspeed trip threshold revalidation are mandatory, with no unmodified direct swap solution available.

Q: What working scenarios select the -011 molded D-Sub armored cable variant /010-011 (9200-00097)?A: Bearing housings within 1m distance from marshalling cabinets, oil mist and heavy vibration machinery houses requiring anti-abrasion metal armor protection, power plant/petrochemical projects requiring unified plug wiring without on-site cable stripping and terminal processing.
