Key Technical Specifications

• Compatible Rack IOM: FC-SDO-0824 8-channel loop-monitored solid-state safety digital output IOM
• Channel Layout: 8 fully independent sourcing output channels, no shared load bus between circuits
• Nominal Field Operating Voltage: 24VDC, valid operating window 20–32VDC, max transient 36VDC
• Per-Channel Continuous Load Rating: 0.5A DC; total aggregate module limit 3.8A
• Terminal Specs: Screw compression terminals, accepts AWG14–22 solid/stranded wire, torque 0.5Nm, max wire cross-section 2.5mm²
• Onboard Circuitry: Independent RC flyback snubber per channel, bidirectional surge suppression, loop sense feedback resistors for lead-break detection
• Interconnect Interface: SICC locking ribbon cable, direct edge mating connector to paired rack IOM
• Galvanic Isolation: 1500VAC optical isolation boundary separating SIS rack logic and field actuator wiring
• Ambient Operating Temperature: -40°C minimum to +70°C maximum cabinet ambient
• Hazardous Location Approval: FM Class I Div 2 Groups A/B/C/D cabinet mounting certified
• Environmental Protection: Full IEC 60664-3 Type A conformal coated PCB
• Mount Standard: TS35 DIN rail snap-in mounting
• Physical Dimensions: 170mm L × 70mm W × 48mm D; net unit weight 170g

Product Introduction

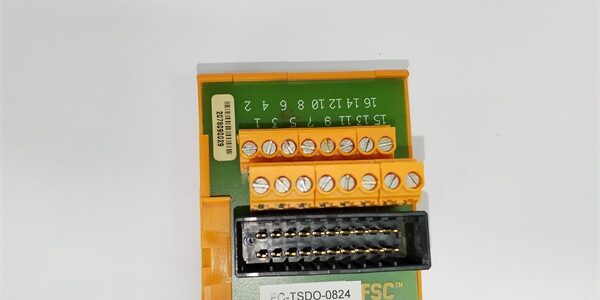

This termination base acts as the dedicated physical wiring interface between the rack-mounted safety IOM and critical shutdown field actuators. Integrated per-channel snubber networks suppress inductive flyback spikes from solenoid coils without external auxiliary diodes.Dedicated sense resistors feed loop health signals back to the paired safety IOM, enabling continuous open-wire and short-circuit diagnostics required to maintain >99% fault coverage for SIL3 safety loops per IEC 61508.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference serial barcodes against Honeywell OEM batch production logs; inspect PCB for coating delamination, cracked solder joints, bent SICC ribbon connector pins, and damaged terminal lugs; validate original factory anti-static packaging seal integrity.
2. Live Testing: Mated with spare FC-SDO-0824 on a bench Safety Manager rack powered by a Fluke 115 regulated 24VDC supply; run 24-hour cyclic channel toggle testing with simulated open-loop and short-circuit fault injection across all eight channels.
3. Electrical Testing: Megger insulation resistance test >10MΩ between each field channel and SICC ribbon bus pins; confirm snubber flyback suppression limits transient voltage below 40V, and loop sense resistance thresholds trigger consistent fault alerts on the bench logic solver.
4. Firmware/Config Backup: No onboard programmable firmware storage; capture high-resolution photos of rack address routing jumpers for field service reference before bench testing.
5. Final QC & Packaging: Attach serialized printed test pass tag; seal unit in foam-lined static-shielded bag to protect SICC edge connector pins during warehouse storage and transit.

Installation Pitfalls & Guide (Engineer to Engineer)

❗ Firmware Rev Compatibility Risk: Safety Manager R140 and older solver firmware lacks full loop fault diagnostic logging; upgrade rack logic solver firmware to R160 or newer before FTA swap to avoid blind wiring failure conditions on SIL safety loops.❗ Jumper Configuration Loss: Capture high-res photos of rack address coding jumpers on the removed old unit; misconfigured address jumpers create backplane bus conflicts that block safety logic from commanding solenoid trips.❗ Wiring Incompatibility: This assembly’s SICC ribbon pinout does not interchange with FC-TSAI analog safety FTAs; cross-substitution without full field harness retermination produces unrecognized backplane bus device faults.❗ Inductive Load Miscalculation: Solenoid coils exceeding 0.5H inductance exceed onboard snubber suppression limits; install parallel external freewheeling diodes across all heavy inductive field loads.❗ ESD Component Damage Risk: Ungrounded technicians have destroyed optical isolation chips during rack IOM/FTA swap-outs; latent ESD damage creates intermittent channel dropout that surfaces after 3–5 weeks of continuous runtime.

4-step replacement guide:

1. Pre-install: Activate cabinet LOTO on 24VDC rack power and all field solenoid wiring; secure grounded anti-static wrist strap to chassis DIN rail ground lug.
2. Removal: Document rack address jumper positions via photo; disconnect SICC ribbon cable from rack FC-SDO-0824 IOM, remove each field solenoid wire sequentially channel by channel from screw terminals, slide the unit off TS35 DIN rail.
3. Install: Mount new hardware to DIN rail, replicate all address jumper settings from reference photos, reterminate field solenoid wiring to matching channel terminal blocks, fully seat and lock the SICC ribbon cable connector to the paired safety IOM.
4. Power-on Test: Restore rack and field power; open Safety Builder diagnostic screens to confirm zero active open/short loop faults and verify each channel energizes its paired shutdown solenoid on safety trip command.

FAQ (Frequently Asked Questions)

Q: Can this termination base operate in redundant SIL3 SIS rack configurations?A: The hardware itself does not include dual mirrored signal buses for native channel redundancy. Redundant safety shutdown actuation requires dual independent FC-SDO-0824 IOM + FC- FTA hardwired parallel to field solenoids; single FTA slots cannot deliver 1oo2 fault tolerance for SIL-rated critical reactor and distillation shutdown loops.Q: Does the assembly support hot-swapping of the paired FC-SDO-0824 IOM while the Safety Manager rack remains energized?A: The rack IOM card can be extracted from the live rack slot, but all external field solenoid wiring must be fully disconnected via LOTO before detaching the SICC ribbon cable from the base. Live inductive load disconnection induces flyback voltage transients that damage the onboard snubber filter networks on the PCB.Q: What warranty coverage applies to bench-tested surplus stocked units?A: All inventory units carry a 12-month functional warranty covering factory PCB, terminal, and snubber circuit defects. Damage from unfiltered inductive flyback, misconfigured address jumpers, or ungrounded ESD handling is excluded from all coverage terms.Q: Is there a direct drop-in modern replacement for this discontinued safety output FTA hardware?A: Honeywell’s current-generation universal safety termination hardware provides equivalent loop-monitored output wiring, but full field harness retermination and Safety Builder SIL logic revalidation is mandatory; SICC ribbon communication handshake timing and loop sense resistance mapping do not match for unmodified direct swap.Q: What fault isolation do the independent channel circuits provide during field wiring shorts?A: Each channel uses separate drive sense and snubber circuitry; a shorted solenoid wire only disables one shutdown path, leaving the remaining seven safety actuator circuits fully functional for partial process hazard mitigation.Q: Can multiple shutdown solenoids be wired in parallel to a single output channel terminal?A: Permitted only if combined total coil current stays below the 0.5A per-channel continuous rating. Parallel loads exceeding this threshold trigger persistent overcurrent limiting and repeated minor rack fault alarms during normal process operation.Q: Can this FTA be paired with analog safety IOM hardware like FC-SAI series input modules?A: Not supported. The SICC ribbon pinout and onboard output signal conditioning circuits are engineered exclusively for FC- solid-state safety output IOM hardware. Mismatched analog IOM pairing produces unrecognized backplane bus device faults and permanent snubber circuit overload damage within minutes of power application.
