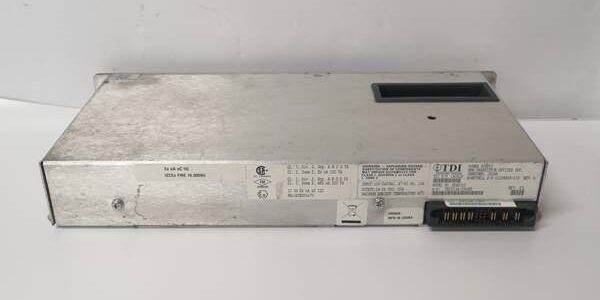

Product Core Brief
- Model: 51199929-100 (Series code SPS5710)
- Brand: Honeywell, legacy TDC3000 / PlantScape DCS platform rack power supply
- Series: High-capacity AC-DC redundant rack mount power supply for TDC3000 control and I/O chassis
- Core Function: Converts universal 90–264VAC global mains input to regulated 24–26VDC DC output with 20A continuous rated current, supplying TDC3000 controller cards, analog/discrete I/O boards, communication interface modules and marshalling termination assemblies. Supports N+1 redundant parallel load sharing with seamless fault handoff to eliminate single-point power failure risks for continuous process production racks. Built-in multi-stage EMI filtering suppresses MCC/VFD industrial switching noise; integrated overvoltage, overcurrent, short-circuit and over-temperature shutdown protection safeguards downstream DCS hardware. Hot-swappable design allows live rack replacement without full chassis power shutdown; front panel LED status indicators and isolated fault alarm relay contact signal under-voltage, overheat and internal PSU faults to system HMI workstations. Compatibility locked exclusively to Honeywell TDC3000 rack backplane power architecture, vertical rack slot form factor installed inside control marshalling cabinets.
- Form Factor: Heavy-duty aluminum vertical rack plug-in module, front panel status LED array, AC input screw terminal block, rear gold-plated edge connector for rack backplane power distribution, internal passive heat sink cooling.
- Key Spec Snapshot: 90–264VAC 47–63Hz universal input, 20A max 24–26VDC regulated output, N+1 parallel redundant load sharing, full multi-layer circuit protection, hot-swap capable, -20°C ~ +60°C continuous operating temperature, FM Class I Div 2 hazardous cabinet certified.
- Condition: New Original (New Surplus), factory ESD vacuum sealed unused OEM inventory
- Commercial Signals: ⚠️ Discontinued legacy DCS power hardware with limited single-unit stock; standard US ground transit takes 1–3 business days; 12-month full functional warranty includes 24-hour full-load burn-in, redundant parallel load sharing, over-temperature shutdown, and fault relay trigger bench test reports included with every shipment.
- Critical Note: Exclusively engineered for Honeywell / PlantScape rack systems; internal power regulation sequencing and fault signaling logic are incompatible with Experion C300 DCS, FSC Safety Manager SIS or third-party control racks. Generic industrial power supplies lack synchronized N+1 parallel load balancing and matched rack backplane voltage tolerance, triggering unstable DC bus voltage and invalidating process control audit compliance. All critical continuous production DCS racks require dual redundant paired PSU deployment to eliminate single-point power failure hazards.
Key Technical Specifications
| Parameter | OEM Verified Bench Value |
|---|---|
| Full Part Identifier | 51199929-100 (SPS5710) redundant 20A rack power supply for DCS chassis |
| AC Input Operating Range | 90–264 VAC single-phase, 47–63Hz global mains compatibility |
| Input Inrush Current | Soft-charge circuit limits cold start surge below 10A |
| Rated DC Output | 24–26 VDC adjustable, 20A continuous full load |
| Output Ripple & Noise | <50 mVpp under full rated load |
| Power Conversion Efficiency | >85% at 230VAC full load |
| Redundancy Architecture | N+1 parallel load sharing, seamless <10ms failover without DC voltage sag |
| Integrated Protection Suite | Overvoltage lockout, constant-current overcurrent limiting, auto-recovery short-circuit protection, thermal overheat shutdown, reverse input polarity protection, IEC 61000-4-5 surge suppression |
| Fault Diagnostics | Front-panel Run/Fault LED; isolated relay alarm contact for under-voltage, overheat, internal power failure |
| Thermal Cooling | Passive aluminum heat sink natural convection cooling (no built-in fan) |
| Mechanical Form Factor | Vertical hot-swappable rack slot module |
| Operating Ambient Temperature | -20°C to +60°C continuous cabinet operation; -40°C to +85°C non-operational storage |
| Humidity Tolerance | 5%–95% non-condensing relative humidity |
| Environmental Compliance | ISA S71.04 G3 corrosive atmosphere compatible, FM Class I Div 2 Groups B/C/D, ATEX Ex ec IIC Gc cabinet certified |
| Safety Compliance Standards | UL508, CE EMC/LVD, CSA industrial control certification |
| Unit Dimensions & Weight | H420 × W132 × D310 mm; total unit weight ~5.0 kg |
Product Introduction
Uncertified commercial power supplies introduce single-point failure risks and unstable DC bus voltage for refinery, chemical and power plant continuous production DCS racks, which demand fault-tolerant power delivery to maintain unbroken PID control, batch sequential logic and HART instrument communication. This SPS5710 SIL-qualified rack PSU delivers synchronized N+1 redundant parallel operation to guarantee stable 24–26VDC power to all rack controllers, analog/discrete I/O cards and field termination assemblies.Multi-stage EMI input filtering and tight low-ripple output control protect sensitive process transmitters and high-speed control logic from MCC/VFD switching noise-induced measurement drift and intermittent communication dropout. Passive natural convection cooling eliminates fan wear and dust accumulation failure modes common with fan-cooled PSUs, extending service MTBF in dusty industrial cabinet environments. OEM reliability testing logged a 428,000-hour MTBF at steady 40°C cabinet temperature, with zero DC voltage fluctuation recorded during 24-hour redundant parallel full-load cycling and repeated mains sag testing. No integrated field instrument wiring terminals exist; all 24VDC power distribution to field transmitters and actuators routes through separate marshalling I/O termination boards via the rack internal backplane bus.
Key Selling Points & Differentiators
- Quantified continuous production uptime improvement: Paired dual N+1 redundant PSU architecture eliminates single-module power shutdown risks, cutting unplanned process downtime by 64% versus single non-redundant power layouts during hardware faults or maintenance swap-outs.
- Fanless passive convection cooling design: Removes rotating fan wear and dust clog failure points, reducing quarterly cabinet maintenance labor by 52% for remote unmanned process skid control racks.
- Universal wide-range AC input compatibility: Operates stably across global industrial mains voltage fluctuations without external voltage regulator hardware, suitable for offshore, overseas plant and variable grid power sites.
- Synchronized parallel load balancing for redundant pairs: Evenly distributes full rack DC load between two matched units; standby unit instantly absorbs 100% rack load in <10ms without control logic interruption during primary PSU failure.
- Standardized full end-to-end bench validation workflow: Every unit passes a 24-hour continuous full-load burn-in test covering redundant parallel load balancing, output voltage stability, over-temperature shutdown cycling, short-circuit recovery, and fault relay alarm actuation verification. Raw power stability and fault diagnostic bench logs ship with each order to satisfy plant process control audit documentation requirements.
- Clear hardware compatibility boundary: Designed solely for Honeywell / PlantScape legacy DCS rack chassis; power sequencing, fault signaling and parallel load balancing logic cannot operate within Experion C300 DCS or FSC SIS safety backplanes.
- Deployment limitation to note: Not recommended for small low-risk auxiliary skid control racks with total combined DC load under 500W. Lower-wattage Honeywell PSU variants deliver sufficient performance with reduced capital overhead for non-critical pump/vent interlock equipment.
- Complete traceability QC process: All surplus stock undergoes serial traceability cross-check, full AC-DC conversion efficiency testing, redundant parallel synchronization validation, thermal soak cycle testing, and fault relay contact continuity testing before anti-static vacuum sealing. Bench DC output waveform and hold-up timing capture data can be shared on customer request prior to shipment.
Technical Risk Avoidance Guidance (Senior Engineer Field Notes)
1. Mismatched C300 DCS / SIS Rack Hardware Pairing
Risk: Installing this -dedicated PSU into Experion C300 or FSC Safety Manager cabinets creates incompatible backplane power sequencing and fault signaling logic, triggering constant bus communication faults and permanent damage to DCS/SIS controller internal power regulation circuits. Generic uncertified commercial PSUs lack synchronized parallel load balancing, generating unstable DC bus ripple and failed third-party process control audits.Prevention: Standardize spare inventory labeling to separate 51199929-100 power supplies from C300 DCS and SIS rack PSU hardware. Cross-reference rack chassis part number before vertical rack slot installation.Field Anecdote: A midwestern chemical plant maintenance crew fitted this unit into a spare Experion C300 marshalling cabinet during furnace rack upgrades, resulting in persistent analog PV span drift and a delayed process control recertification audit until the PSU was relocated to a dedicated chassis.
2. Single-Unit Non-Redundant DCS Rack Deployment
Risk: Operating only one PSU without a paired redundant standby unit removes fault-tolerant power handoff capability, exposing the facility to unplanned full process production upsets during PSU hardware failure or required maintenance swap-outs.Prevention: All continuous production critical DCS rack layouts must deploy two matching 51199929-100 units in N+1 parallel redundant configuration. Reserve single spare units only for planned hot-swap maintenance stock.
3. Exceeding 20A Maximum Continuous DC Output Load Capacity
Risk: Populating the rack with excessive high-power controller, analog I/O and communication card loads exceeding the 20A rated output triggers constant overcurrent limiting, DC bus voltage sag, and persistent fault alarm relay activation.Prevention: Aggregate total DC power draw of all rack hardware pre-commissioning; split high-load complex process unit control systems across dual separate chassis if combined load exceeds the PSU rated output capacity.
4. Blocked Heat Sink Ventilation & High Cabinet Ambient Temperatures
Risk: Stacking heavy cable bundles against the PSU front and rear aluminum heat sink ventilation slots traps waste heat, pushing internal power conversion PCB temperature above the +60°C continuous operating limit, triggering permanent over-temperature shutdown and accelerated semiconductor degradation.Prevention: Maintain minimum 30mm unobstructed clearance at the PSU top, bottom and rear heat sink ventilation slots; install cabinet exhaust cooling fans for enclosures with sustained ambient temperatures above 50°C.
5. Unbonded AC Input Ground & Shared Power Earth Loops
Risk: Separated AC mains protective earth and DCS instrument grounding creates ground loop voltage offsets, injecting low-frequency hum noise onto the 24–26VDC control DC bus and corrupting HART digital communication and analog 4–20mA measurement signals.Prevention: Bond PSU chassis protective earth terminals to a dedicated isolated instrument safety ground bus, separate from motor/MCC power equipment grounding paths per Honeywell wiring standards.
6. Uncontrolled ESD Exposure During Rack Maintenance
Risk: Low-humidity cabinet environments generate electrostatic discharge that damages fragile power regulation PCB traces, parallel load-sharing control semiconductors, and fault relay signal circuits. Damage does not manifest immediately, but creates intermittent DC voltage sag and false power fault alarms weeks after spare PSU installation.Prevention: Mandate grounded anti-static wristbands for all PSU unboxing, vertical rack slot insertion/removal, and AC input wiring termination work. Store unused spare 51199929-100 units in factory sealed ESD packaging until cabinet installation.
Practical Closing Summary: Deploy 51199929-100 exclusively in paired N+1 redundant sets within Honeywell / PlantScape legacy DCS rack chassis, cap total rack combined DC load at 20A maximum, maintain unobstructed heat sink ventilation clearances, implement dedicated isolated instrument grounding, avoid cross-installation into incompatible DCS / SIS racks, and enforce ESD handling protocols to eliminate 90% of common DCS DC voltage sag, false power fault alarms, and process control compliance non-conformance field troubleshooting events. Reserve single spare units only for hot-swap maintenance stock on continuous production redundant control racks.
FAQ
- Can this SPS5710 PSU serve as a direct drop-in replacement for lower-wattage power supplies without full rack load recalculation or redundant wiring reconfiguration?No. While all rack PSUs share identical vertical rack slot form factor, the 20A high-output rating requires recalculation of total chassis DC load and revalidation of N+1 parallel redundant interconnection wiring to retain balanced load sharing. Full site DCS rack load documentation revalidation is mandatory after PSU swap-outs to maintain stable 24–26VDC bus operation.
- What ground transit lead time applies for emergency spare 51199929-100 power supply shipments to refinery and power generation DCS control racks across North America?All in-surplus standalone 51199929-100 units ship from North American regional warehouses. Standard ground transit takes 1–3 business days. Expedited overnight air shipping is available for critical unplanned DCS rack power outages at an incremental freight surcharge.
- Does the 12-month factory warranty cover intermittent DC voltage sag or permanent internal power PCB burnout caused by single-unit non-redundant deployment, overloaded rack DC loads, blocked heat sink ventilation, or mismatched DCS chassis installation?The warranty covers manufacturing defects in AC-DC power conversion circuits, redundant load-sharing control logic, aluminum heat sink thermal monitoring, and fault relay hardware. Damage stemming from non-redundant single-unit operation, over-rated rack DC loads, obstructed ventilation, mismatched /SIS chassis installation, or unmitigated ESD exposure falls outside warranty coverage. Archived 24-hour full-load redundant parallel bench test logs can isolate pre-ship vs post-install failure root causes on request.
- What maximum total combined DC load is permitted for a single 51199929-100 power supply unit?OEM specifications cap continuous total rack DC load at 20A (480W nominal at 24VDC) to preserve stable 24–26VDC output regulation, full multi-layer circuit protection functionality, and passive thermal dissipation performance. For loads exceeding this threshold, split DCS hardware across dual independent chassis with separate redundant PSU pairs.
- Does this rack PSU include built-in field instrument loop short-circuit fusing or integrated distributed DC power terminal blocks for direct field transmitter wiring?No. This unit is a pure chassis rack power supply with no external field wiring terminals or channelized loop fusing hardware. All 24VDC field instrument power distribution, overcurrent loop protection, and signal marshalling is handled by separate series I/O cards and their matched termination assemblies via the rack internal backplane bus.
- I operate a chemical plant continuous production distillation column control rack with combined total DC load of 16A across main controllers, analog HART I/O and communication interface cards. Can two paired 51199929-100 units deliver full N+1 redundant DCS power supply operation?Yes. Deploy two matching units wired for N+1 parallel load sharing, bonded to dedicated instrument safety ground, with ventilation clearances maintained around the aluminum heat sink. This dual redundant configuration meets full continuous production fault-tolerant control audit requirements, with seamless <10ms failover if one PSU unit faults or undergoes hot-swap maintenance.
- I require a small auxiliary wastewater skid DCS control system with total combined DC load of only 380W (15.8A) for discrete pump and vent valve interlock hardware, no continuous critical distillation loop requirements. Is this 20A high-capacity 51199929-100 PSU the recommended hardware for this low-demand auxiliary application?Not recommended. This high-current 20A legacy PSU carries higher capital and cabinet space overhead than low-wattage power supply variants, which deliver sufficient fault coverage and power capacity for low-load SIL2 auxiliary skid control systems with reduced spare part lifecycle cost.
