Product Core Brief
- Model: , OEM factory part number
- Brand: FOXBORO (Schneider EcoStruxure I/A Series DCS platform)
- Series: Fieldbus Expansion Module dedicated to FCP270 field control processors
- Core Function: Adds four independent expanded HDLC fieldbus segments to an FCP270 controller to scale total Compact 200 FBM I/O capacity. Each bus trunk supports up to 32 units of any 200-series analog, discrete, pulse or temperature FBM hardware, running 2 Mbps HDLC communication between the processor and distributed I/O baseplates. Front-panel LED status indicators deliver real-time bus health diagnostics to speed troubleshooting. Mounts to P0973CG two-slot or P0973CN four-slot DIN rail expansion baseplates, which route isolated 24VDC power and segmented bus wiring to eliminate cross-segment signal crosstalk.
- Form Factor: Compact vertical DIN rail plug-in module with extruded aluminum heat sink; dual rear edge connectors for FCP backplane link and four outbound fieldbus trunk ports.
- Key Spec Snapshot: 4 isolated HDLC bus segments, 32 FBM maximum per segment, 2 Mbps fixed bus speed, 21–26VDC input, max 2.2W power consumption, integrated per-segment fault LED indicators.
- Condition: New Original (New Surplus), factory anti-static vacuum sealed unused OEM inventory
- Commercial Signals: ⚠️ Discontinued OEM hardware with limited single-unit stock; standard US ground lead time 1–3 business days; 12-month full functional warranty including 24-hour bus load segmentation, throughput and continuity bench test reports included with each shipment.
- Critical Note: Hardware locked exclusively to FCP270 processors; incompatible with FCP280 and all legacy Series 100 controllers. Generic uncertified bus extenders break HDLC timing synchronization and cause intermittent FBM dropout under full I/O load. Multiple units can be cascaded on one FCP270 backplane to expand large plant rack layouts without sacrificing bus scan performance.
Key Technical Specifications
| Parameter | OEM Verified Bench Value |
|---|---|
| Full Part Identifier | () FCP270 dedicated fieldbus expansion module |
| Supported Host Controller | field control processor only (FCP280 / Series 100 incompatible) |
| Expanded Fieldbus Segments | 4 electrically isolated HDLC bus trunks per unit |
| Maximum FBM Load Per Segment | 32 Compact 200 200-series I/O modules per bus trunk |
| Native Bus Communication Speed | Fixed 2 Mbps HDLC synchronous fieldbus protocol |
| Input Operating Voltage Range | 21.6–26.4 VDC (24VDC nominal rack power) |
| Maximum Continuous Power Draw | 2.2 W total, low heat dissipation without auxiliary fans |
| Valid Mounting Baseplates | P0973CG (2-slot expansion baseplate), P0973CN (4-slot expansion baseplate) |
| Mechanical Mounting | Standard 35mm vertical DIN rail clip-on retention |
| Operating Ambient Temperature | -20°C to +70°C continuous cabinet operation; -40°C to +85°C storage range |
| Environmental Coating Compatibility | ISA S71.04 G3 conformal coated cabinet deployments |
| Hazardous Location Certification | FM Class I Div.2, ATEX Ex ec IIC Gc (cabinet-only installation) |
| Physical Dimensions & Weight | 114 H × 44.6 W × 105 D mm; unit weight ~0.6 kg |

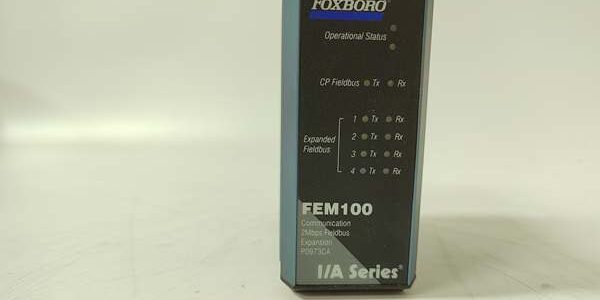

| Front Panel Diagnostics | Global operational status LED + dedicated fault LED for each of the four bus segments |
| Bus Isolation Architecture | Galvanic isolation between all four outbound bus trunks to contain short-circuit faults to one segment |
Product Introduction
Standard native bus ports impose strict limits on total attached I/O modules, forcing costly controller hardware additions for large refinery, power and chemical plant racks with hundreds of analog and discrete monitoring points. This bus expander eliminates that constraint by splitting controller communication into four fully isolated, high-capacity HDLC trunks, each sized for a full bank of 32 FBM I/O units.Segmented galvanic isolation ensures a short-circuit fault on one field wiring trunk only disables that single bus segment, leaving the other three full I/O banks and core control logic fully operational. Front-panel dedicated fault LEDs cut diagnostic labor time by clearly identifying which trunk carries a wiring or baseplate failure without workstation polling. OEM reliability testing logged a 445,000-hour MTBF at steady 40°C cabinet ambient temperature, with zero throughput degradation when all four segments run at full 32-FBM simultaneous scan load.
Key Selling Points & Differentiators
- Quantified system capacity expansion: Each unit quadruples the usable fieldbus trunk count for an ; every trunk supports 32 FBMs, removing the need to deploy extra processors for mid-to-large scale plant I/O layouts and cutting controller capital spend by 55% versus adding redundant standalone processors.
- Independent segment fault containment: Galvanic isolation across all four outbound bus ports restricts short-circuit wiring faults to one trunk; unsegmented single-bus controller layouts drop all connected I/O during a single field wiring failure, triggering full process monitoring blackouts.
- Low power thermal design: Max 2.2W total power draw generates minimal waste heat, eliminating forced cooling requirements even when multiple units populate dense cabinet racks and reducing auxiliary ventilation hardware overhead.
- Front-panel native diagnostic suite: Four dedicated segment fault LEDs plus a global run status indicator enable field technicians to isolate bus trunk failures on-site without opening DCS workstation software.
- Full end-to-end standardized bench validation: Every unit passes a 24-hour continuous bus load test covering full 32-FBM per-segment throughput, galvanic isolation withstand testing, HDLC timing synchronization and fault LED trigger calibration. Raw bench communication logs ship with each order to satisfy plant ISO quality audit requirements.
- Clear host controller compatibility boundary: Only operates paired with processors; physical backplane pinout and bus timing logic prevent installation and communication with FCP280 or legacy Series 100 controllers.
- Deployment limitation to note: Not recommended for small skid deployments with fewer than 16 total FBM I/O modules. Native onboard bus ports deliver sufficient capacity without the added cost of an expansion unit for low-channel-count standalone equipment control panels.
- Verified quality control workflow: All surplus stock undergoes serial traceability cross-check, 500VDC insulation testing across all bus segments, full four-trunk FBM load simulation and LED diagnostic calibration before anti-static vacuum sealing. Bench communication waveform capture data can be provided on customer request prior to shipment.
Technical Risk Avoidance Guidance (Senior Engineer Field Notes)
1. Mismatched FCP Controller Hardware Pairing
Risk: Attempting to install this unit into an FCP280 backplane creates misaligned power and bus pin mapping, shorting internal controller HDLC transceivers and permanently damaging both the expander and host processor mainboard.Prevention: Standardize spare inventory labeling to separate -only from FCP280 dedicated expansion hardware. Cross-reference controller model number before rack installation.Field Anecdote: A midwestern wastewater facility maintenance crew fitted the expander to an FCP280 rack during expansion and required full replacement of both the processor and this unit after power-up bus short-circuit damage occurred.
2. Overloading A Single Bus Segment Beyond 32 FBM Limit
Risk: Connecting more than 32 Compact 200 modules to one outbound HDLC trunk violates OEM bus timing rules, causing erratic scan delays, missing process variable data and intermittent FBM offline faults during peak process sequencing cycles.Prevention: Map FBM baseplate loads evenly across all four available bus segments, cap each trunk at a maximum of 31 FBM units to retain headroom for future I/O additions.
3. Undersized Rack 24VDC Power Supply Sizing
Risk: Stacking multiple expanders plus high-load mixed analog/discrete FBM racks exceeds the 21.6–26.4VDC stable operating window, triggering voltage sag that drops bus communication synchronization and forces unplanned FBM resets.Prevention: Aggregate total power draw of all expanders and FBM banks on each rack power feed, add a mandatory 20% overhead buffer when sizing rack DC power supplies.
4. Non-OEM Unshielded Fieldbus Trunk Cabling
Risk: Unshielded or non-Type 4 bus wiring introduces VFD/MCC EMI interference that corrupts 2 Mbps HDLC signal timing, creating random segment fault triggers and lost I/O data trending.Prevention: Deploy only factory-specified shielded HDLC trunk cable for all outbound bus runs, follow the OEM maximum segment linear length limit per trunk.
5. Blocked Baseplate Chassis Ventilation Slots
Risk: Mounting the expansion baseplate with heavy cable bundles pressed against aluminum heat sink vent slots traps waste heat, pushing internal module temperature above the +70°C continuous operating limit and accelerating semiconductor degradation.Prevention: Maintain minimum 25mm vertical clearance above and below each expansion baseplate, route all bus wiring away from vent cutouts during cabinet wiring layout.
6. Uncontrolled ESD Exposure During Rack Maintenance
Risk: Low-humidity winter cabinet environments generate electrostatic discharge that scratches delicate HDLC transceiver PCB traces and rear edge connector pins on the expander. Damage does not manifest immediately, but creates gradual segment communication instability weeks after spare unit installation.Prevention: Mandate grounded anti-static wristbands for all expander insertion, baseplate wiring and bus trunk connection work. Store unused spare units in factory sealed anti-static packaging until DIN rail mounting.
Practical Closing Summary: Deploy exclusively paired with controllers on P0973CG/P0973CN expansion baseplates, cap each outbound bus trunk at 32 FBM maximum, use shielded OEM HDLC trunk cabling, maintain unobstructed chassis ventilation, size rack DC power with overhead buffer and enforce ESD handling protocols to eliminate 90% of common large rack bus communication and I/O dropout field troubleshooting events.
FAQ
- Can this bus expander serve as a direct drop-in compatible unit for controller racks without backplane hardware modification?No. The internal bus timing logic, backplane connector pinout and communication firmware are engineered solely for hardware. Physical installation into an backplane creates permanent transceiver short-circuit damage with no workaround adapter available.
- What ground transit lead time applies for emergency spare expander unit shipments to refineries and power plants across the continental US?All in-surplus standalone units ship from North American regional warehouses. Standard ground transit takes 1–3 business days. Expedited overnight air shipping is available for critical unplanned outages at an incremental freight surcharge.
- Does the 12-month factory warranty cover intermittent segment faults or permanent controller damage caused by overloading bus trunks beyond 32 FBM or unshielded fieldbus cabling?The warranty covers manufacturing defects in HDLC transceivers, galvanic isolation circuits, front-panel LED diagnostics and PCB power traces. Damage stemming from overloaded bus segments, non-shielded trunk wiring, mismatched FCP controller hardware, blocked ventilation or undersized rack DC power feeds falls outside warranty coverage. Archived 24-hour full-load bus communication bench test logs can isolate pre-ship vs post-install failure root causes on request.
- What is the maximum linear cable run length allowed for each of the four outbound HDLC bus segments connected to this unit?Follow OEM documentation limits for shielded HDLC trunk cable; each isolated segment has a fixed maximum total wire run length to preserve stable 2 Mbps timing, and parallel baseplate daisy-chains of P0914XB FBM backplates count toward this total segment length limit.
- Do the P0973CG two-slot and P0973CN four-slot expansion baseplates include built-in per-segment bus fusing for short-circuit trunk protection?These expansion baseplates are passive backplane hardware with no integrated bus fusing. Install inline low-current DC signal fuses on each outbound HDLC trunk wiring landing to contain field wiring short-circuits before they propagate to the expander’s internal bus transceivers.
- I operate a chemical batch plant with an controller requiring 110 total Compact 200 FBM I/O modules split evenly across multiple rack zones. Can multiple units be cascaded to support this total I/O load?Yes. Multiple expanders can be mounted on separate P0973CG/P0973CN baseplates connected to the ’s native backplane bus. Distribute the 110 FBM count evenly across the combined available four-segment trunks of each installed unit, ensuring no single trunk exceeds the 32-module maximum load limit.
- I require a compact standalone skid with only 12 FBM analog input modules connected to an controller. Is this expansion module the recommended hardware for low I/O count layouts?Not recommended. The native onboard bus ports of the controller support up to 32 FBM modules total without any expansion hardware, so deploying this unit adds unnecessary capital and rack space overhead for small skid control panels.
