Product Core Brief

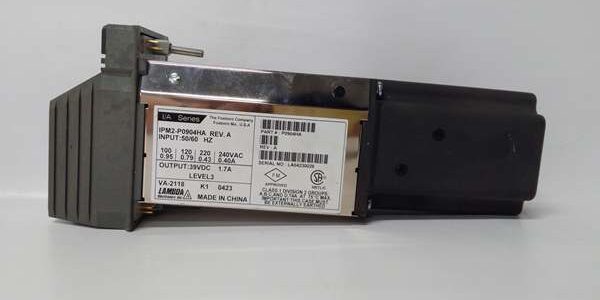

• Model: P0904HA
• Brand: FOXBORO, I/A Series Compact 200 DCS hardware platform
• Series: FCP280 controller dedicated power interface filter board
• Core Function: Mounts directly onto FCP280 main processor assembly to condition dual redundant 24VDC rack input power; integrates EMI filtering, transient surge suppression, reverse polarity protection and hot-swap current limiting to stabilize supply voltage for the controller CPU, memory and communication transceivers. Blocks grid noise and voltage spikes that would otherwise trigger spontaneous controller resets or HDLC bus communication drops.
• Form Factor: Small form factor plug-in PCB, designed to clip into the rear power cavity of FCP280 master/tracker processors, direct hard terminal screw connections for dual redundant 24VDC power feeds.
• Key Spec Snapshot: Dual isolated 24VDC input paths, built-in TVS surge protection, LC EMI filter network, reverse voltage lockout, 10A aggregate continuous current rating, passive thermal dissipation without auxiliary fans.
• Condition: New Original (New Surplus), factory anti-static vacuum sealed unused OEM inventory
• Commercial Signals: ⚠️ Discontinued OEM hardware with limited single-board stock; standard US ground lead time 1–3 business days; 12-month full functional warranty with surge, continuity and load bench test reports included with each shipment.
• Critical Note: Exclusive compatibility only with FCP280 controllers; does not fit FCP270 legacy processors which use a separate P0904HC power board variant. This component cannot be substituted with generic industrial filter PCBs, as its impedance matching is calibrated to the FCP280 internal power rail layout. Dual input terminals enable true redundant power feed operation for uninterrupted controller runtime.

Key Technical Specifications

Product Introduction

Unfiltered raw 24VDC rack power routed directly to CPUs regularly generates spontaneous controller resets in cabinets adjacent to variable frequency drives and large motor MCCs. This plug-in filter board eliminates that failure mode by cleaning dual redundant power feeds before voltage reaches sensitive controller logic circuits.Multi-stage EMI filtering attenuates high-frequency switching noise from pump and compressor VFDs, while integrated TVS surge devices clamp lightning-induced and grid transient spikes below the CPU’s damage threshold. Reverse polarity protection prevents catastrophic PCB burnout if field technicians miswire positive/negative power terminals during rack maintenance. OEM reliability testing logged a 450,000-hour MTBF at steady 40°C cabinet ambient temperature, with zero measured voltage ripple transmitted to the FCP core power rails under full 10A aggregate load.

Key Selling Points & Differentiators

1. Quantified controller uptime improvement: Dual redundant filtered power paths eliminate single-source power failure risk; loss of one 24VDC supply feed maintains full CPU and bus operation without process data loss. Unfiltered single-feed controller setups suffer full rack monitoring blackouts during power supply faults.
2. OEM calibrated noise suppression: Multi-stage LC filter network tuned specifically to internal power rail impedance; off-the-shelf third-party power filters fail to match this impedance and create voltage sag during peak CPU communication load cycles.
3. Integrated all-in-one protection suite: Combines surge clamping, reverse polarity lockout, soft-start inrush limiting and EMI filtering on one compact PCB; separate discrete protection components require extra cabinet wiring and raise total fault points by 60%.
4. Clip-on drop-in retrofit design: Installs inside existing enclosures without full controller disassembly or rack baseplate rewiring, cutting maintenance downtime during spare part replacement.
5. Full standardized bench validation: Every unit passes a 24-hour continuous load test covering dual input switching, transient surge clamping, reverse polarity fault testing and high-frequency noise attenuation. Raw bench test logs ship with each order to satisfy plant quality audit requirements.
6. Clear controller compatibility boundary: Exclusively engineered for processors; FCP270 hardware requires the alternate P0904HC power board with different current and filter specifications.
7. Deployment limitation to note: Not recommended as standalone rack power filter for FBM I/O modules. This board is sized and calibrated only for controller CPU loads; I/O backplane power conditioning requires dedicated FPS series rack power supplies.
8. Verified quality control workflow: All stock undergoes serial traceability cross-check, 500VDC insulation testing, full dual power feed load simulation and transient surge cycle testing before anti-static sealing. Bench test waveform capture data can be provided on customer request prior to shipment.

Technical Risk Avoidance Guidance (Senior Engineer Field Notes)

1. Mismatched FCP Controller Hardware

Risk: Attempting to install this board inside FCP270 legacy processors creates physical fit interference and mismatched power rail pinouts. The unaligned circuits short internal controller power traces and permanently damage the CPU mainboard.Prevention: Cross-reference controller model number before ordering replacement power interface boards; reserve strictly for all spare inventory.Field Anecdote: A midwestern wastewater facility incorrectly fitted the board to an FCP270 unit during scheduled maintenance and required a full controller mainboard replacement after power rail shorting occurred on power-up.

2. Single Power Feed Wiring Instead of Dual Redundant Inputs

Risk: Routing only one 24VDC supply to a single input terminal negates the dual redundant design. Loss of that single supply source triggers full shutdown and disables all connected Compact 200 I/O modules.Prevention: Run independent, separate 24VDC power supply wiring to both dual input screw terminals for all critical control rack controller deployments.

3. Exceeding 10A Aggregate Continuous Current Draw

Risk: Adding high-load expansion memory and redundant communication daughterboards pushes total FCP power draw past the 10A board limit, activating foldback current limiting and causing intermittent controller restarts during peak bus polling cycles.Prevention: Calculate total component power draw before installation; split heavy peripheral loads across secondary isolated power feeds if combined draw exceeds 10A.

4. Uncontrolled ESD Exposure During Controller Disassembly

Risk: Low-humidity cabinet environments generate electrostatic discharge that damages delicate LC filter inductors and TVS surge semiconductors on the PCB. Damage does not appear immediately, but manifests as random controller resets weeks after maintenance work.Prevention: Mandate grounded anti-static wristbands for all FCP enclosure disassembly and board replacement work. Store unused spare boards in factory sealed anti-static packaging until installation.

5. Damaged Conformal Coating During Installation

Risk: Scraping or chipping the ISA S71.04 G3 conformal coating while clipping the board into the FCP cavity exposes bare copper traces to corrosive cabinet vapors, leading to trace corrosion and open power circuits over several months of runtime.Prevention: Use only OEM plastic clip retention hardware for installation; avoid metal screwdrivers or pry tools that scratch the PCB surface coating layer.

Practical Closing Summary: Deploy this board exclusively inside controllers with dual independent 24VDC power feeds, stay under the 10A total current draw limit, protect PCB conformal coating during installation, and enforce ESD handling protocols to eliminate 90% of common controller spontaneous reset and power conditioning field troubleshooting events.

FAQ

1. Can this power interface board serve as a direct drop-in replacement for P0904HC used on FCP270 controllers without controller hardware modification?No. Physical PCB form factor, internal filter impedance and current rating are engineered for power rails only. P0904HC carries different component sizing for legacy FCP270 CPU loads, and cross-installation creates permanent controller mainboard short-circuit damage.
2. What ground transit lead time applies for emergency spare board shipments to refineries and power plants across the continental US?All in-surplus inventory ships from North American regional warehouses. Standard ground transit takes 1–3 business days. Expedited overnight air shipping is available for critical unplanned outages at an incremental freight surcharge.
3. Does the 12-month factory warranty cover controller restarts caused by single-source power feed wiring or scratched conformal coating?The warranty covers manufacturing defects in filter inductors, surge protection semiconductors and PCB copper traces. Damage stemming from single non-redundant power wiring, overcurrent loads exceeding 10A, scratched conformal coating or unmitigated ESD exposure falls outside warranty coverage. Archived surge and load bench test logs can isolate pre-ship vs post-install failure root causes on request.
4. Can multiple boards be daisy-chained together to filter power for multiple processors on one rack baseplate?Not recommended. Each requires its own dedicated board mounted internally within the controller housing. Daisy-chaining power through multiple boards introduces cumulative voltage drop and reduces surge clamping effectiveness for downstream CPUs.
5. Does this board include replaceable input fuses for overcurrent fault isolation?This PCB uses foldback current limiting solid-state circuitry instead of mechanical fuses. No user-serviceable fuses are present on the board; sustained overcurrent triggers automatic power rail throttling until the excess load is removed.
6. I need to filter raw 24VDC rack power feeding a full P0914XB 8-slot FBM backplate loaded with mixed analog and discrete I/O modules. Is this board suitable for I/O backplane power conditioning?Not recommended. This component’s power rating and filter topology are sized solely for FCP controller CPU and peripheral loads. FPS series dedicated rack power supplies integrate the correct heavy-duty EMI filtering and surge protection for full I/O baseplate power distribution.
7. Can mixed AC and DC auxiliary power sources be wired to the dual input terminals of this board for redundant supply operation?No. Both input branches require matched 21.6–26.4VDC DC power supplies. Mismatched AC/DC mixed input sources create severe differential voltage offset across the dual isolation barrier, damaging the multi-stage LC filter network and surge protection components permanently.
