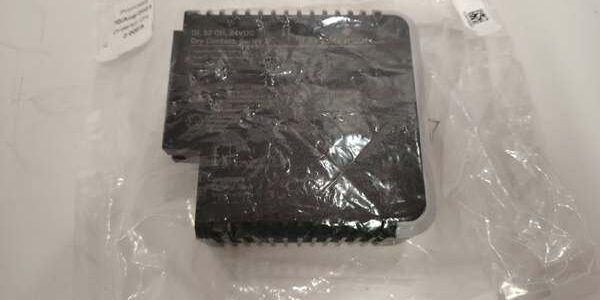

Product Core Brief
- Model: VE4001S2T2B2 (cross part KJ3201X1-BA1, 12P2535X042)
- Brand: Emerson DeltaV
- Series: M-Series Traditional Rack I/O
- Core Function: 8-channel discrete input card to read passive 24VDC dry contact valve/pump status signals
- Product Type: Plug-in rack-mounted DI I/O interface card, fused termination compatible
- Key Specs: 8 isolated channels | 24VDC wetting power | EOL wire break detection | LocalBus rack communication
- Note: Discontinued OEM hardware; new surplus stock available, only compatible with M-series I/O carriers
Key Technical Specifications
| Parameter | Value |
|---|---|
| Channel Count | 8 independent discrete input channels |
| Input Type | Passive dry contact, no external field power required |
| Field Wetting Voltage | 24 VDC ±10%, per-channel current limiting |
| Channel Isolation | Opto-isolated per channel, 1500 VDC withstand rating |
| Fault Diagnostics | EOL resistance detection for open wire / short circuit faults |
| Backplane Bus | DeltaV LocalBus 12VDC rack backplane communication |
| Hot-Swap Support | Safe hot removal on energized racks (safe zone cabinets only) |
| Operating Temperature | -40°C to +70°C operational; -40°C to +85°C storage |
| Environmental Rating | ISA S71.04 G3 corrosive gas resistant, full PCB conformal coating |
| Physical Dimensions | 107 mm W × 41 mm H × 105 mm D; net weight 0.249 kg |
| Mounting | DIN rail M-series I/O carrier rack slot installation |
| Certifications | CE EMC, FM Class I Div2, NEMA 12 cabinet rated, IP20 internal |
| Compatibility Restriction | Not physically interchangeable with S-series I/O carriers |
Product Introduction
This rack-mounted discrete input hardware collects passive switch feedback for process equipment like valve limit switches, pump run relays, and safety interlock contacts. It delivers isolated per-channel wetting voltage to eliminate separate field 24VDC wiring circuits.Per-channel opto-isolation blocks ground loop interference from long field cables, and built-in EOL logic lets operators identify broken wiring without field site inspections. The LocalBus backplane interface transmits all channel status and fault data directly to DeltaV controllers without signal lag.
QA & Testing SOP
- Incoming Inspection: Match serial numbers against OEM factory batch logs; inspect gold backplane edge connectors for oxidation and conformal coating for peeling. Reject units with cracked plastic housings or bent pin headers.
- Live Functional Testing: Install on matching M-series carrier, supply rack 12VDC LocalBus power via Fluke 115 multimeter. Cycle dry contact inputs 500 times and validate consistent state reporting to DeltaV HMI.
- Isolation & Fault Stress Test: Run 1500VDC hipot isolation test between each channel and system ground (>100MΩ pass threshold); simulate wire short/open states to confirm EOL fault alarms trigger correctly.
- Firmware Logging: Capture factory firmware revision through DeltaV Diagnostic Console and save screenshots tied to the unit serial number for full traceability.
- Final QC & Packaging: Blow PCB surfaces with dry nitrogen to remove industrial dust; seal in static-shield bag with printed test report containing 24-hour continuous runtime stability data.
Installation Pitfalls & Guide
❗ ESD Component Failure: Ungrounded contact with backplane pins destroys opto-isolator chips; component replacement labor exceeds $2,100. Always attach a grounded anti-static wrist strap to cabinet safety ground before handling the card.❗ Cross-Series Carrier Mismatch: This hardware only fits M-series racks. Forced insertion into S-series carriers bends backplane gold pins and disables full rack LocalBus communication.❗ Zone 0/1 Hazardous Area Misuse: The card holds only Div2 certification. Deploying it in Zone 0 or 1 flammable gas zones voids all safety approvals and creates ignition risks.❗ Missing EOL Termination Resistors: Without matching EOL resistors at field contact endpoints, the system cannot differentiate an intentional open switch from a broken signal wire.❗ EMI Wiring Separation Failure: Run 24VDC AC power cables a minimum 10cm apart from DI signal wiring. Parallel routing causes random contact state flicker and false fault alarms during process load swings.
4-Step Replacement Guide
- Pre-install: Activate interlock bypass logic on the DeltaV workstation for all 8 associated field loops; photograph terminal block wiring layout for reference. Hot-swap is permitted in safe zone cabinets.
- Removal: Release the card’s front retention latch, pull the unit straight outward horizontally to avoid bending backplane edge pins.
- Install: Align the new card’s gold backplane connector with the carrier slot, push fully until the retention latch clicks into locked position.
- Power-on Test: Clear all loop bypasses; cycle each field dry contact repeatedly, then simulate wire short and open conditions to confirm diagnostic alarms register without delay.
FAQ
Q: Can this hardware read active NPN/PNP proximity sensor signals?A: No. It is engineered exclusively for passive dry contact loops. Active transistor-based sensors require a dedicated active discrete input card variant.Q: Does hot-swapping the card disrupt other I/O modules on the same carrier rack?A: The M-series carrier includes buffered hot-swap circuitry; removing or inserting the unit while rack power stays energized will not interrupt signal processing for other installed cards.Q: What physical limitation blocks use with S-series DeltaV racks?A: M-series and S-series carriers use incompatible backplane pinout geometries and LocalBus signaling timings; forced installation permanently damages the carrier’s backplane connector pins.Q: What hardware behavior signals a failed unit?A: All 8 channels report constant open-circuit faults, random contact state flutter with stable field wiring, full LocalBus communication timeout on the carrier rack, or missing channel LED status indicators.Q: What warranty coverage applies to new surplus stock?A: A 12-month limited warranty covers factory PCB and assembly defects. Damage from ESD mishandling, field-side overvoltage, or deployment in unapproved hazardous zones is excluded from coverage.Q: Can multiple dry contacts wire in series on a single channel?A: Yes, provided total combined loop resistance does not exceed the internal sensing threshold; excessive series resistance registers false open-circuit fault alarms.
