Product Core Brief

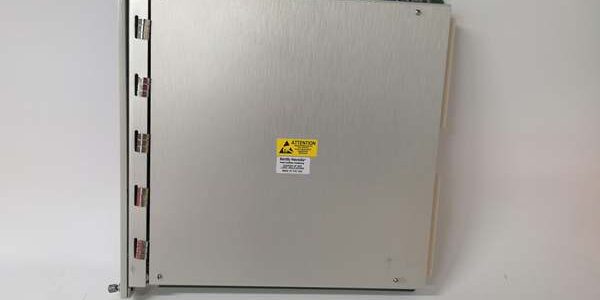

- Model: 3500/92-03-01-00, Front Card PWA 136180-01
- Brand: Bently Nevada (Baker Hughes)
- Series: 3500 Turbine Supervisory Instrumentation (TSI) Machinery Protection Platform
- Suffix Breakdown:
- 03 = Rear base I/O variant: Dual 10/100Mbps Ethernet + isolated RS232 serial port
- 01 = Low memory firmware variant with standard Modbus register table capacity
- 00 = No supplementary third-party hazardous location agency certifications
- Core Function: Full-height split front/rear gateway module that aggregates all rack vibration, temperature, speed, and alarm telemetry over the proprietary backplane bus; translates internal rack data to Modbus TCP over Ethernet and Modbus RTU over RS232 for integration with plant DCS, PLC, and SCADA systems
- Product Type: Hot-swappable M-series communication front card paired with dedicated 03-type serial/Ethernet rear terminal base
- Key Specs: Dual redundant RJ45 Ethernet | Isolated RS232 serial | Custom editable Modbus register mapping | 5.6 W typical power draw
- Condition: New Original (New Surplus), active OEM spare with no formal end-of-life obsolescence schedule
Key Technical Specifications
表格
| Parameter | Defined Value |
|---|---|
| Front Card PCB Part Number | 136180-01, only compatible with 03-series rear I/O termination base |
| External Communication Ports | Dual 10/100BASE-TX RJ45 Ethernet; galvanically isolated RS232 serial port on rear base |
| Supported Industrial Protocols | Modbus TCP/IP, Modbus RTU (RS232), proprietary Bently protocol for Rack Configuration Software and System 1 asset monitoring tools |
| Memory Tier | Low memory (suffix 01); fixed maximum Modbus register depth sized for standard single-turbine rack channel counts |
| Modbus Functionality | User-configurable register mapping utility to match site DCS tag database layouts for measurements, fault flags, and module status |
| Backplane Bus Interface | High-speed bidirectional proprietary rack bus to pull live data from all installed monitor, speed, and relay modules |
| Power Consumption | 5.6 W steady-state draw from the chassis 24 VDC backplane bus under full communication load |
| Rear Terminal Base Matching Unit | Surge-protected Ethernet + wiring termination base for field serial and network cabling |
| Front Panel Diagnostic LEDs | OK (module health), Ethernet TX/RX activity, Serial TX/RX activity, Backplane Bus Fault |
| Standard Operating Temperature | −30°C to +65°C; conformal coated variants rated −40°C to +85°C for offshore coastal cabinet deployments |
| Humidity Tolerance | 5%–95% RH non-condensing cabinet atmosphere |
| Physical Dimensions | 241.3 mm H × 24.4 mm W × 241.8 mm D; front card unit weight 0.82 kg |
| Compliance Standards | Base factory certification: API 670, CE EMC, UL Class I Div 2, ATEX Zone 2 Ex nA IIC T4, SIL 2 functional safety; suffix 00 adds no extended hazardous location approvals |
| Functional Limitation | Cannot drive 3500-series local LCD operator displays; local HMI functionality requires a separate 3500/93 DIM module |
Product Introduction
This gateway acts as the primary standardized data export bridge for 3500 machinery protection racks, eliminating hundreds of discrete 4–20 mA analog hardwire runs to central control room automation platforms. The 03 hardware variant delivers dual redundant Ethernet links alongside serial Modbus to support legacy PLC hardware, while the low-memory 01 variant fits standard turbine and compressor rack channel counts without over-provisioning unused register capacity.
The split rear terminal base allows technicians to rework field Ethernet and cabling without removing the front measurement hardware during scheduled unit outages. The unit contains no transducer signal conditioning circuits; dedicated 3500/42M, 3500/50, and 3500/60 modules handle raw vibration, speed, and temperature measurement tasks independently. It supersedes older 3500/90 gateways with flexible editable Modbus register tables to align with any plant DCS tag structure.
Firmware/Software Versions & Upgrade Notes
Minimum compatible rack gateway firmware: 3500/20 TDI Revision G; minimum rack configuration software: 3500 Rack Configuration Software v3.10. All M-series modules installed inside the 3500/05 chassis must run matching firmware builds; mismatched revisions break backplane data aggregation and disable Modbus register publishing to external controllers.Downgrades below Revision G remove custom Modbus register mapping logic and dual Ethernet link fault-tolerant failover capability. Firmware flashes over the rack backplane bus via official Bently rack configuration software. Always export full Modbus register layouts, static IP addressing schemes, and baud rate parity settings before initiating firmware updates to avoid complete rework of DCS communication mapping tables. No firmware resides on the rear terminal base; all protocol translation logic resides entirely on the front card PCB. Low-memory 01 variants have fixed register table limits that cannot be expanded via firmware upgrades.
Frequently Asked Questions (FAQ)
- Is hot-swapping the front gateway card safe while the 3500 rack remains energized?Yes, the front card supports hot-swap with rack power active. All active machinery safety trip interlocks retain valid alarm states during replacement; DCS Modbus polling will briefly timeout until the new unit completes a backplane communication handshake and reloads stored register mapping tables. The paired rear terminal base cannot be detached while powered, as this breaks field serial signal isolation and latches persistent serial fault flags on the rack diagnostic log.
- Is this part scheduled for obsolescence, and are direct drop-in hardware upgrades available?This gateway remains an active OEM catalog spare with no formal end-of-life date. The closest hardware upgrade variant is 3500/92-04-01-00, which swaps the port for multi-drop RS485 serial terminals; it requires field wiring rework and is not a zero-modification plug-and-play swap. No revised second-generation front card exists with identical pinout, slot geometry, and port layout for full unmodified backward compatibility.
- Will Modbus register mapping, static IP addresses, or serial communication parameters erase if the full rack loses power?No, all Ethernet static IP assignments, serial baud/parity configurations, and custom Modbus register tables store in non-volatile flash memory on the unit itself. Full rack power loss does not permanently erase any communication configuration data; the rear terminal base contains zero user-programmable logic or stored settings. Low-memory 01 variants retain all saved register layouts after complete rack power cycles.
- What warranty terms separate New Surplus inventory from refurbished alternatives?New Surplus stock carries a 12-month functional warranty covering Ethernet transceivers, serial drivers, backplane bus logic, and front diagnostic LED hardware. Refurbished units typically offer only 3–6 month limited coverage and carry hidden risks of aged network ICs, untested channel isolation barriers, and undocumented prior field fault exposure that trigger intermittent DCS communication dropouts during turbine load transients.
- Why does New Surplus pricing sit higher than generic used/refurbished marketplace listings?All New Surplus inventory completes mandatory standardized QC validation: serial traceability cross-check against OEM production logs, 24-hour continuous thermal soak bench testing with simulated Modbus TCP and RTU traffic across all ports, 500 V megger insulation testing verifying >10 MΩ serial port-to-ground isolation, full Modbus register configuration validation, and anti-static sealed foam packaging. Refurbished lots skip this multi-step validation workflow, introducing unplanned downtime risk for plant-wide turbine DCS communication links.
- Can local 3500 LCD operator displays connect directly to the serial port on this unit’s rear base?No, the serial ports implement standard industrial Modbus only and do not support the proprietary serial display protocol required for 3500 operator LCD panels. Local HMI hardware must interface exclusively with a dedicated 3500/93 DIM display interface module instead. Verify with the OEM datasheet before connecting non-Modbus serial hardware to avoid permanent serial transceiver circuit damage.
- Does the unit locally store vibration fault waveforms or long-term machinery trending logs?No, the gateway has no on-board high-speed waveform or long-term trending storage memory. All transient orbit snapshots, timestamped fault event logs, and continuous amplitude trending records are captured and retained exclusively by the Slot1 3500/20 TDI master communication gateway module. This unit only formats and forwards real-time measurement and alarm data to external automation systems via Modbus TCP or serial Modbus RTU.
