Product Core Brief

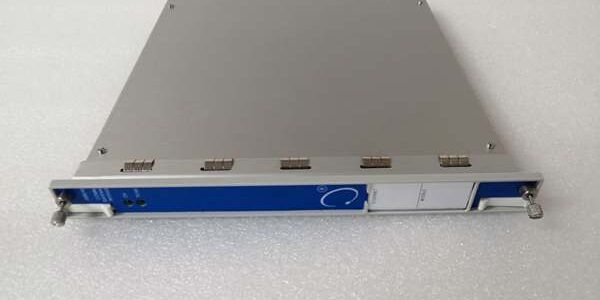

- Model: 3500/92, Front Card PWA 136180-01
- Brand: Bently Nevada (Baker Hughes)
- Series: 3500 Turbine Supervisory Instrumentation (TSI) Machinery Protection Platform
- Core Function: Full-height communication gateway front card that aggregates all rack measurement values, alarm states, and fault logs via internal backplane bus; translates rack data to Modbus TCP and serial Modbus RTU for third-party DCS, PLC, and SCADA integration
- Product Type: Hot-swappable split front/rear base M-series gateway card; mates with rear terminal base PN 136188-02
- Key Specs: Dual Ethernet + multi-serial ports | Custom Modbus register mapping | 5.6 W typical power draw | API 670 compliant
- Condition: New Original (New Surplus), active OEM production spare with no published obsolescence timeline
Key Technical Specifications
| Parameter | Defined Value |
|---|---|
| Supported Communication Interfaces | Dual 10/100Mbps Ethernet RJ45; rear base provides RS232, RS422, RS485 multi-drop serial ports |
| Supported Industrial Protocols | Modbus TCP/IP, Modbus RTU (serial), proprietary Bently protocol for System 1 & Rack Configuration Software |
| Modbus Functionality | User-configurable Modbus register mapping utility to customize vibration, temperature, speed, and alarm data registers |
| Backplane Bus Interface | Proprietary high-speed 3500 rack internal bus, bidirectional data exchange with all monitor and relay modules |
| Power Consumption | 5.6 W steady-state draw from rack 24 VDC backplane bus |
| Matching Rear Terminal Base | PN 136188-02 (serial wiring termination, surge protection for field serial cabling) |
| Front Panel Diagnostic LEDs | OK (module health), TX/RX Ethernet, Serial TX/RX, Backplane Comms Fault |
| Standard Operating Temp | −30°C to +65°C; conformal coated variants rated −40°C to +85°C offshore cabinet environments |
| Humidity Tolerance | 5%–95% RH non-condensing cabinet atmosphere |
| Physical Dimensions | 241.3 mm H × 24.4 mm W × 241.8 mm D; front card weight 0.82 kg |
| Compliance Standards | API 670, CE EMC, UL Class I Div 2, ATEX Zone 2 Ex nA IIC T4, SIL 2 functional safety |
| Functional Boundary | Cannot drive local 3500 LCD operator displays; local HMI duty assigned to the 3500/93 DIM module |
Product Introduction
This gateway acts as the primary data export bridge between the 3500 safety protection rack and plant-wide automation systems. It eliminates discrete 4–20 mA signal wiring by streaming all machine health data over standard Ethernet or serial Modbus links to central control rooms.
The split rear terminal base lets technicians rework field serial and Ethernet cabling without removing the front measurement hardware during planned shutdowns. The unit cannot process raw transducer signals; dedicated 3500/42M, 3500/50, and 3500/60 modules handle vibration, speed, and temperature measurement tasks. It supersedes older 3500/90 gateways with flexible user-defined Modbus register tables to match any DCS tag layout.
Firmware/Software Versions & Upgrade Notes
Minimum compatible rack gateway firmware: 3500/20 TDI Revision G; minimum rack configuration software: 3500 Rack Configuration Software v3.10. All M-series modules installed in the chassis must run matching firmware builds; mismatched revisions break backplane data aggregation and disable Modbus register publishing.Downgrades below Revision G remove custom Modbus register mapping and dual Ethernet fault-tolerant failover logic. Firmware flashes over the rack backplane bus via official Bently rack configuration software. Always export full Modbus register layouts, IP addressing, and serial baud rate settings before initiating firmware updates to avoid complete rework of DCS communication mapping. No firmware resides on rear terminal bases; all protocol translation logic resides on the front board assembly.
Frequently Asked Questions (FAQ)
- Is hot-swapping the front gateway card safe while the 3500 rack remains energized?Yes, the front card supports hot-swap with rack power active. Active machinery safety trip interlocks retain valid alarm states during replacement; DCS Modbus polling will briefly timeout until the new unit completes backplane handshake and reloads register mapping tables. The paired rear terminal base cannot be detached while powered, as this breaks field serial isolation and locks persistent serial fault flags.
- Is this part scheduled for obsolescence, and are direct drop-in hardware upgrades available?This gateway remains an active OEM catalog spare with no formal end-of-life date. No revised second-generation front card exists with identical pinout and slot geometry for full backward compatibility. The only functional predecessor is legacy 3500/90, which lacks configurable Modbus registers and dual Ethernet ports, so it is not a zero-modification plug-and-play swap.
- Will Modbus register mapping, static IP addresses, or serial communication parameters erase if the full rack loses power?No, all Ethernet IP settings, serial baud rates, and custom Modbus register tables store in non-volatile flash memory on the unit itself. Full rack power loss does not permanently erase any communication configuration data; the rear terminal base contains zero user-programmable settings.
- What warranty terms separate New Surplus inventory from refurbished alternatives?New Surplus stock carries a 12-month functional warranty covering Ethernet transceivers, serial RS485 drivers, backplane bus logic, and front diagnostic LED hardware. Refurbished units typically offer only 3–6 month limited coverage and carry hidden risks of aged network ICs, untested channel isolation, and undocumented prior field fault exposure that trigger intermittent DCS communication dropouts during turbine load transients.
- Why does New Surplus pricing sit higher than generic used/refurbished marketplace listings?All New Surplus inventory completes mandatory QC validation: serial traceability cross-check against OEM production logs, 24-hour continuous thermal soak bench testing with simulated Modbus TCP and RTU traffic across all ports, 500 V megger insulation testing verifying >10 MΩ serial port-to-ground isolation, full Modbus register configuration validation, and anti-static sealed foam packaging. Refurbished lots skip this multi-step validation workflow, introducing avoidable operational risk for plant-wide turbine DCS communication links.
- Can local 3500 LCD operator displays connect directly to the serial ports on this unit’s rear base?No, the serial ports implement industrial Modbus only and do not support the proprietary display protocol required for 3500 operator panels. Local HMI hardware must interface with a dedicated 3500/93 DIM display interface module instead. Verify with the OEM datasheet before connecting LCD hardware to avoid permanent serial transceiver damage.
- Does the unit locally store vibration fault waveforms or long-term machinery trending logs?No, the gateway has no on-board high-speed waveform storage memory. All transient orbit snapshots, timestamped fault event logs, and long-term trending records are captured and retained exclusively by the Slot1 3500/20 TDI master communication gateway. This unit only formats and forwards real-time measurement and alarm data to external automation systems via Modbus.
