Product Core Brief

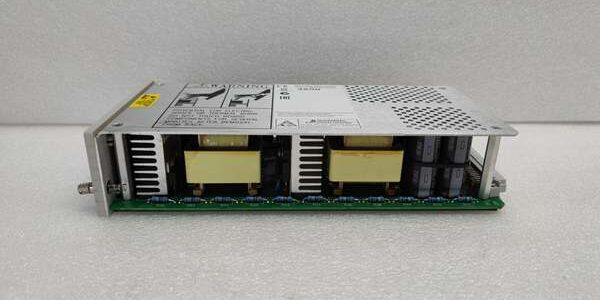

• Model: 3500/15 127610-01
• Brand: Bently Nevada (Baker Hughes)
• Series: 3500 Machinery Protection TSI Rack System
• Core Function: Half-height AC input power converter that delivers regulated multi-rail DC power to the rack backplane for all vibration, temperature, speed, relay and communication monitor hardware
• Product Type: Dedicated half-slot rack power supply, parallel redundant capable for single-point failure elimination
• Key Specs: 85–264 VAC universal mains input | 150 W continuous output power | Full hot-swap support
• Condition: New Original Factory Sealed available with medium lead time; fully refurbished bench-tested surplus stock ships within 3 working days

Key Technical Specifications

• AC Input Range: 85 to 264 VAC RMS, 47–63 Hz single-phase global industrial mains
• DC Backplane Output Rails: Regulated +5 VDC, +12 VDC, −12 VDC for all rack I/O modules
• Maximum Continuous Output Power: 150 W, minimum 90% efficiency under full rated load
• Physical Form Factor: Half-height module, installs exclusively in two dedicated left-side rack power bays
• Unit Dimensions: 120.7 mm H × 50.8 mm W × 251.5 mm D
• Net Weight: 1.39 kg
• Operating Ambient Temperature: −30 °C to +65 °C continuous cabinet operation; storage −40 °C to +85 °C
• Humidity Rating: 0–95% RH non-condensing, no internal condensation allowed
• Built-In Hardware Protection: Overvoltage, overcurrent, short-circuit, overtemperature auto-shutdown lockout
• Front Status Indicator: Green OK LED steady lit for normal stable output state
• Compliance & Hazardous Certifications: API 670, CE EMC, CSA NRTL/C, Class I Div 2 / ATEX Zone 2 Ex nC IIC T4
• Redundancy Operation: Two identical units may run in parallel active backup; lower slot = primary, upper slot = standby

Product Introduction

Critical power generation and refinery turbomachinery protection racks require redundant power feeds to satisfy API 670 safety standards, and this component is purpose-built to meet that requirement for full-size 14-slot 3500 chassis. It converts variable global AC mains into tightly stabilized multi-rail DC power without voltage sag even when the rack is fully populated with vibration, thermal and relay I/O cards.Its universal wide-range AC input removes the need to stock region-specific power variants, cutting spare parts inventory overhead by half for multi-site plant fleets. This component cannot operate standalone; it requires a matching passive backplane rack chassis to distribute DC power to measurement modules. Not recommended for compact 7-slot mini 3500 rack layouts, which use low-wattage DC-only power hardware with incompatible pinouts.

Key Selling Points & Differentiators

1. Global universal AC input eliminates site-specific step-down transformers, reducing cabinet fabrication and commissioning labor for cross-border power and oil & gas facilities.
2. 150 W full-load capacity supports a fully populated 14-slot chassis with mixed vibration, temperature, relay and communication I/O without power derating.
3. Parallel redundant active backup maintains unbroken backplane DC power if one unit faults, complying with mandatory single-failure elimination rules for steam and gas turbine safety systems.
4. Full hot-swap design allows replacement while the rest of the rack’s protection relay logic stays energized, avoiding full machine shutdown during planned power supply maintenance windows.
5. Refurbished surplus units carry a 12-month functional warranty covering DC regulation, fault protection circuits and backplane connector integrity; factory-new assemblies ship with a full 36-month OEM manufacturer warranty.
6. Integrated multi-layer fault protection automatically cuts output current during field wiring short circuits, preventing permanent damage to expensive monitor and relay cards installed in the rack.

Quality Transparency SOP

1. Incoming Verification: Cross-reference serial numbers against OEM production archives to reject counterfeit assemblies. Complete visual audit of PCB solder joints, front OK LED lens, rack edge gold contact pins and rear AC terminal block hardware; timestamp photos of cracked casings, burned traces or tarnished pins.
2. Live Bench Test: Mount the unit into a calibrated full-size test rack with a full simulated 14-slot load bank for a continuous 24-hour thermal cycling test. Record DC rail voltage stability every two hours across minimum and maximum AC input limits.
3. Electrical Tests: 500 V megohmmeter insulation test confirms resistance >10 MΩ between AC input terminals and rack protective ground; validate all overcurrent and overvoltage shutdown trigger thresholds match OEM factory limits.
4. Firmware & Layout Backup: This power supply contains no user-configurable firmware; technicians document paired redundant unit serial numbers and planned rack slot assignments for permanent site maintenance records.
5. Final QC & Packaging: Run a 10-minute full-load soak test as final validation. Attach serialized QC Passed tag with timestamped voltage readout data. Wrap the unit in anti-static foam and ship inside rigid shock-resistant cardboard crates. Test bench photos and raw voltage stability logs are available to buyers on formal written request.

Technical Risk Avoidance Section

❗ Single Supply Operation Risk: Running the chassis with only one installed unit creates a single point of power failure, violating API 670 rotating machinery protection requirements. Prevention: Populate both dedicated left half-slots with matching identical units for all critical turbine and high-pressure compressor racks. Field anecdote: A combined-cycle gas turbine suffered an unplanned full trip after one power unit failed, with no backup supply to sustain vibration protection interlock logic.❗ AC Input Wiring Underrating Risk: 18 AWG or smaller wire gauge leads create voltage drop under full 150 W load, triggering intermittent OK LED fault states and unstable DC rails. Prevention: Specify minimum 16 AWG copper conductors for AC mains termination at the rear terminal block.❗ Thermal Clearance Violation Risk: Stacking field wiring bundles directly against the unit’s ventilation slots restricts passive heat dissipation, raising internal PCB temperatures above rated limits and shortening component service life. Prevention: Maintain minimum 20 mm unobstructed air gap along the top and bottom edges of each power supply module.❗ Hot-Swap Misalignment Risk: Twisting the unit during extraction bends fragile backplane gold contact pins, creating permanent intermittent power rail voltage fluctuations. Prevention: Use both front extraction levers to evenly disengage the edge connector before sliding the unit free of the rack slot.❗ ESD Damage Risk: Ungrounded field tools touching exposed backplane pins discharge static and destroy internal PWM control ICs; OEM PCB repair labor costs exceed $1,400 for failed power assemblies. Prevention: Mandate grounded ESD wrist straps for all rack module insertion and removal tasks while the chassis is energized.

Quick summary: Deploy dual redundant matching units, size AC wiring correctly, preserve ventilation clearance, and use balanced extraction lever motion during hot-swap service to eliminate nearly all common rack power supply field failures.

FAQ

Q: Can I install this unit inside the compact 7-slot mini 3500 rack?A: No. Mini chassis half-height power bays accept only low-wattage DC input power variants with different pinout and form factor geometry. This AC unit cannot physically seat into mini rack guide rails.Q: Does hot-swapping this unit interrupt active machinery protection relay logic on the rack’s measurement cards?A: With a second redundant unit installed in the adjacent power slot, backplane power remains fully stable during hot-swap removal and replacement. If operating with a single unit, all monitor card power drops momentarily, triggering full rack fault annunciations and safety relay dropout.Q: What input voltage range will the unit operate within for offshore oil platform global deployments?A: The universal AC input accepts any mains feed from 85 VAC up to 264 VAC at 47–63 Hz, covering all standard industrial grid voltages across North America, Europe, Asia, and Australia without transformer conversion hardware.Q: I only need to monitor non-critical auxiliary cooling pumps with no ESD trip interlocks. Is single-unit operation acceptable for this low-risk rack?A: Electrically it will function, but it does not meet API 670 safety standards for any rotating machinery monitoring. For non-safety auxiliary equipment with no hard shutdown interlocks, single-supply deployment is allowable per plant internal risk assessment procedures.Q: What warranty coverage applies to refurbished surplus inventory of this power unit?A: Refurbished assemblies carry a 12-month functional warranty covering DC regulation output, fault protection circuits, and rack connector integrity. Cosmetic surface scuffs and minor terminal block wear are excluded from claim eligibility. Factory-new OEM units ship with a full 36-month manufacturer warranty.Q: Will mixing mismatched wattage power supply models in the redundant slots create cross-load instability?A: Yes. Parallel operation requires two identical assemblies with matching part numbers and production firmware revisions; mismatched units will unevenly split the rack load and trigger persistent OK LED fault alerts.Q: Does this power supply store any machine vibration or speed measurement data locally on its PCB?A: No. All steady-state and transient fault measurement data is processed and stored exclusively by the rack’s Slot 1 TDI master communication module; this component only handles raw power conversion and distribution tasks.
