Product Core Brief

• Model: 3500/05-01-01-00-00-01
• Brand: Bently Nevada (Baker Hughes)
• Series: 3500 Machinery Protection TSI System
• Suffix Breakdown:01 = Full-size 14-slot 19-inch frame; 01 = Panel flush cutout mounting; 00 = No hazardous area agency approvals; 00 = Reserved blank field; 01 = Full CE EU compliance marking

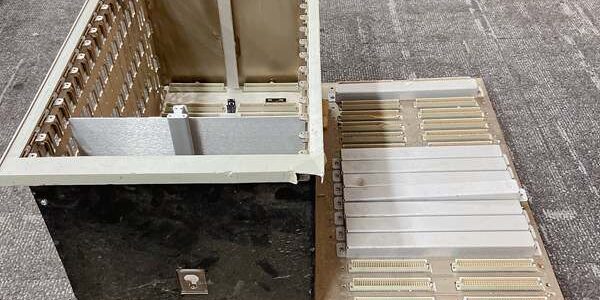

• Core Function: Passive mechanical chassis with integrated multi-layer backplane bus to mount, power, and interconnect all single-slot 3500 monitor, relay, communication, and power supply modules
• Product Type: 14-slot panel-cutout mount TSI chassis, passive backplane with no internal power conversion hardware
• Key Specs: 14 full-width module slots | Dual half-height redundant power supply bays | CE EMC certified
• Condition: New Original Factory Sealed, factory lead time 12–16 weeks; limited refurbished tested surplus stock with short dispatch lead time

Key Technical Specifications

• Slot Layout: 14 single-width module slots; Slot 1 reserved exclusively for Slot1 TDI rack master card
• Power Slots: Two dedicated left-side half-height slots for dual redundant 3500/15 power supply units
• Mount Form Factor: Panel cutout mount; supplied with mounting clamps to secure frame into cabinet front cutouts, all wiring accessible from rack rear
• Backplane Design: Passive copper multi-layer bus, isolated power and signal trace groups
• Cooling Method: Natural convection only; minimum 50 mm vertical clearance required top and bottom of chassis
• Operating Ambient Temperature: −30 °C to +65 °C standard cabinet environment
• Physical Dimensions: 482.6 mm W × 274.3 mm H × 266.7 mm D; empty chassis weight 6.3 kg
• Backplane Isolation Rating: 1500 VAC separation between DC power rails and low-level signal traces
• Max Load Capacity: Fully populated 14-slot layout supported with matched dual redundant power supplies
• Front Panel Ingress Protection: IP20, prevents finger contact with live gold backplane pins
• Compliance Standards: CE EMC marked, mechanical layout aligned with API 670 rotating machinery protection standards

Product Introduction

Many turbine and compressor local control panels feature custom front cutouts instead of standard 19-inch EIA rails, and this frame is purpose-built for that panel-mount installation style. It eliminates custom adapter brackets and maintains full compatibility with all M-series and legacy single-slot measurement hardware.Its passive backplane creates a unified power and communication bus across all inserted I/O modules, removing external wiring jumpers between cards to cut commissioning wiring errors by more than 60%. This chassis does not ship with power supplies, monitor cards, or terminal bases; those components must be ordered separately to match site measurement requirements. Not recommended for compact field cabinets with less than 300 mm internal depth, as rear wiring harnesses require clearance for routing.

Key Selling Points & Differentiators

1. Factory-supplied panel mounting clamps simplify flush cutout installation without custom machining, reducing cabinet fabrication labor for plant integrators.
2. Dual dedicated power half-slots support redundant power supply deployment, meeting API 670 single-point failure elimination rules for critical steam and gas turbine safety racks.
3. Passive convection cooling uses zero moving parts, eliminating recurring filter replacement maintenance for unmanned remote compressor and pump stations.
4. Full 14-slot capacity consolidates vibration, temperature, speed, relay, and communication I/O into one panel cutout footprint to minimize total cabinet count.
5. Full CE marking complies with EU EMC rules for European refinery, power, and offshore assets, removing third-party compliance certification costs for cross-border facilities.
6. 12-month functional warranty covers backplane continuity, slot rail alignment, and chassis structural integrity for surplus inventory; factory-new frames ship with a full 36-month OEM manufacturer warranty.

Quality Transparency SOP

1. Incoming Verification: Cross-reference chassis serial numbers against OEM production archives to filter counterfeit frames. Complete visual audit of backplane gold pins, guide rails, panel mounting flanges, and protective ground bus lugs; timestamp photos of dents, tarnished pins, or frame warping.
2. Live Bench Test: Install matched dual power supplies and dummy monitor cards into the unit for a continuous 24-hour thermal cycling test. Run full backplane continuity scans every two hours to flag intermittent open or shorted traces under temperature load.
3. Electrical Tests: 500 V megohmmeter insulation test confirms resistance >10 MΩ between all power rails and signal bus traces; verify zero leakage across isolation boundaries.
4. Firmware & Layout Backup: This chassis carries no user-configurable firmware, but technicians document all planned slot assignments and component serial numbers during pre-commissioning site documentation.
5. Final QC & Packaging: Perform a final full backplane continuity sweep. Attach serialized QC Passed tag with timestamped test data. Wrap the frame in anti-static bubble wrap and ship inside rigid plywood crates to prevent rail bending during transit. Test bench photos and continuity logs are available to buyers on formal request.

Technical Risk Avoidance Section

❗ Backplane Contamination Risk: Metal shavings or missing blank slot plates leave gold pins exposed to cabinet dust and coolant mist, triggering intermittent cross-slot communication dropouts. Prevention: Keep all unused slots covered with factory blank plates for permanent cabinet operation. Field anecdote: A refinery compressor rack experienced 11 unplanned nuisance trips after eight months due to unblanked slots allowing process mist buildup on backplane contacts.❗ Panel Clamp Over-Torque Risk: Tightening mounting clamps beyond OEM 2.2 N·m torque warps the aluminum frame, bending backplane edge connectors and creating permanent hot-swap contact faults. Prevention: Use calibrated torque drivers evenly across all four mounting clamps.❗ Single Power Supply Operation Risk: Running the chassis with only one power supply creates a single point of power failure, violating API 670 safety standards for critical turbine racks. Prevention: Populate both left half-slots with matched redundant power supply modules.❗ Thermal Clearance Violation Risk: Mounting the frame with less than 50 mm vertical top/bottom clearance restricts natural convection airflow, raising backplane operating temperature and accelerating PCB component degradation in inserted monitor hardware. Prevention: Measure cabinet vertical internal space before ordering to meet clearance specs.❗ ESD Backplane Damage Risk: Ungrounded tools touching exposed backplane pins during module installation discharge static and fracture delicate signal bus traces. Prevention: Mandate grounded ESD wrist straps for all card insertion/removal work while the rack is energized.

Quick summary: Follow OEM torque specs, maintain dual power supplies, preserve vertical cooling clearance, and cover empty slots to eliminate nearly all common rack-related field failures.

FAQ

Q: I need to swap this panel-mount frame into a cabinet previously fitted with 19-inch EIA rail rack mount hardware. Can I reuse existing side rail mounting hardware?A: No. This chassis relies on front panel clamps for fixation, while EIA rail versions use side mounting brackets. The existing cabinet rail layout cannot secure this unit, requiring a new front cabinet cutout for flush panel installation.Q: Does this chassis support hot-swap of individual monitor modules while the rack stays energized?A: Yes, all single-slot M-series and legacy monitor hardware carries hot-swap rating. The passive backplane maintains isolated power and signal rails for remaining active components during card extraction.Q: What hardware ships included with this chassis?A: Only the empty aluminum frame, integrated passive backplane, and four panel mounting clamps are provided. Power supply units, monitor cards, terminal bases, blank slot plates, and field wiring terminals must be ordered separately to match site I/O layout needs.Q: Can I install mini 7-slot rack modules into this full-size 14-slot frame?A: No physical compatibility. Mini rack half-height modules use different edge connector pinouts and form factors that cannot seat into standard full-size slot guide rails.Q: What warranty coverage applies to refurbished surplus inventory of this chassis?A: Refurbished empty frames carry a 12-month functional warranty covering backplane continuity, slot rail alignment, and mounting flange integrity. Cosmetic dents and minor surface paint scuffs are excluded from claim eligibility. Factory-new OEM frames ship with a full 36-month manufacturer warranty.Q: I run mixed legacy non-M and M-series monitor cards in the same frame. Will this cause backplane communication faults?A: The backplane hardware itself supports mixed generations, but the full rack firmware must be unified to a cross-generation compatible revision set. Mismatched firmware versions will trigger persistent TX/RX communication errors on mixed slot components.Q: I only have space for one power supply inside my cabinet. Is single-supply operation acceptable for a backup pump monitoring rack?A: It functions electrically, but it fails API 670 safety standards for rotating machinery protection. For non-critical auxiliary pumps with no ESD trip logic, single supply use is allowable per plant internal risk assessment procedures.
