Component Snapshot At-a-Glance

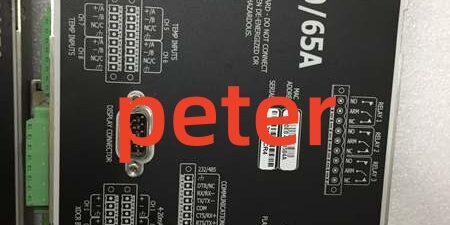

• Model: 1900/65A
• Alt. P/N: 1900/60A (single-channel vibration monitor, no Keyphasor speed input, non-interchangeable firmware/terminal pinout)
• Product Series: Bently Nevada 1900 Compact Machinery Protection Monitor Platform
• Hardware Type: Dual-channel panel/DIN mount eddy-current proximity displacement/vibration monitor with Keyphasor speed input
• Key Feature: 2 independent proximity transducer channels, dedicated Keyphasor phase/speed input, 6 SPDT alarm relays, four isolated 4–20mA analog outputs, buffered test signal jacks
• Primary Field Use: Monitor radial shaft vibration, thrust axial position, shaft rotational speed on small compressors, boiler feed pumps, blowers, auxiliary steam turbines without full 3500 rack systems.

Hard-Numbers: Technical Specifications

• Protocol Support: Analog 4–20mA to DCS/PLC; Modbus RTU RS485 optional comm port; accepts raw -2 to -18VDC signal from 3300 XL Proximitors
• Port Count: 2 proximity probe input terminals; 1 Keyphasor speed input; 6 SPDT relay terminal bank; four isolated 4–20mA recorder outputs; buffered signal test jacks; rear 24VDC power terminals; front channel LED display + OK/Alert/Danger indicators
• Baud/Data Rate: Modbus RTU baud 9.6k–115.2k bps; vibration sampling 1kHz per channel; fixed 100ms analog output refresh cycle
• Operating Temperature: -20°C to +65°C standard; coated factory variant rated -40°C to +85°C non-condensing offshore cabinet duty
• Isolation Rating: 1000VAC galvanic isolation between transducer inputs, 4–20mA outputs, relay contacts and internal logic core
• Power Draw: Max 12W continuous; supply range 21.6–26.4 VDC nominal -24VDC control power
• Measurement Ranges: Displacement 0–2000 μm pk-pk; vibration velocity/acceleration software configurable; frequency response 10Hz–10kHz
• Relay Contact Rating: SPDT 5A @ 250VAC, 160W DC max switching power; epoxy-sealed contacts for oil mist resistance
• Physical Mount: 196.9×149.4×74.4mm panel cutout mount; TS35 DIN rail adapter optional; IP20 front panel; weight 0.4kg
• Certifications: API 670, CE EMC, UL 61010, ATEX Zone 2 Ex nA II T4 hazardous cabinet approval

The Real-World Problem It Solves

Full-size 3500 rack systems cost excessive rack space and spare parts for small auxiliary pumps and blowers. Separate single-channel 1900/60A monitors double cabinet footprint and lack built-in shaft speed monitoring for imbalance and synchronous vibration analysis.Unisolated third-party vibration transmitters leak VFD drive noise onto transducer wiring, causing continuous false Alert/Danger shutdown trips during blower startup load swings.Discrete relays and external signal conditioners add dozens of loose wire splices prone to cabinet vibration; splice corrosion creates unsteady gap voltage readings that mask bearing wear faults.Where you’ll typically find it:

• Refinery auxiliary centrifugal pump local control panels monitoring journal radial vibration
• Combined-cycle power plant boiler feedwater pump and induced draft blower machinery cabinets
• Offshore FPSO Zone 2 auxiliary compressor skids using coated 1900/65A hardware to resist salt fog and hydrocarbon condensationDual-channel design consolidates two shaft monitoring points into one compact unit, native Keyphasor speed input eliminates external tachometer signal conditioning, and isolated 4–20mA outputs deliver clean vibration data to plant DCS without external signal isolators.

Hardware Architecture & Under-the-Hood Logic

This monitor uses a dedicated DSP signal processing core to linearize Proximitor gap voltage signals locally; dual-stage alarm threshold comparison runs independent of Modbus/DCS communication loss to maintain machinery protection relay trip logic. No rack backplane dependency, fully standalone operation.

1. -24VDC cabinet supply feeds multi-stage EMI filtered isolated PSU; split power rails separate DSP measurement core, transducer input frontends, relay drive circuits and analog output hardware to block variable frequency drive harmonic noise.
2. Two fully independent proximity input frontends accept -2VDC to -18VDC linear gap signal from any matched-length 3300 XL Proximitor preamp; each channel has bidirectional TVS surge suppression for long field coaxial cable lightning transients.
3. Dedicated Keyphasor shaping circuit converts magnetic pickup pulse signals to digital RPM/phase data; DSP pairs speed data with vibration waveforms to calculate synchronous vibration and imbalance signatures.
4. Software-configurable dual-threshold alarm logic (Alert pre-warning + Danger shutdown) latches fault states; six SPDT relays route discrete trip signals to unit ESD interlock logic and HMI alarm inputs.
5. Buffered signal test jacks allow technicians to tap raw vibration waveforms with portable analyzers without disconnecting transducer field wiring during live machinery operation.
6. Conformal coated PCB variants seal DSP ADC converters, isolation transformers and signal traces against unconditioned cabinet temperature cycling, dust and offshore salt fog exposure.

Field Service Pitfalls: What Rookies Get Wrong

Dual-End Grounding Probe Coaxial Shield Cables

New techs ground transducer coaxial shield braid at both 1900/65A terminal block and pump/turbine junction boxes. Rotating machinery hull ground potential differences create circulating ground loop current, distorting gap voltage and triggering random false high vibration Danger shutdown trips during compressor startup transients.Field Rule: Terminate all proximity probe coaxial shield braid only at the monitor cabinet chassis ground stud; fully tape and isolate shield conductors at all machinery field junction boxes, no secondary ground points.

Substituting Single-Channel 1900/60A Monitor In Place Of 1900/65A

Field crews swap spare 1900/60A single-channel units onto dual-probe pump monitoring panels. Missing second channel and Keyphasor speed input leave thrust position and shaft imbalance unmonitored; mismatched relay terminal pinouts break existing ESD trip interlock wiring.Quick Fix: Strict part number matching for dual-probe + speed monitoring skids: deploy only 1900/65A. Reserve 1900/60A exclusively for single-point vibration monitoring on small standalone fans with no speed measurement requirement.

Skipping Channel Configuration & Alarm Threshold Reload After Unit Swap

Techs hot-swap a spare 1900/65A and retain factory default measurement settings. Unmatched displacement/vibration range and uncalibrated Alert/Danger setpoints either generate constant nuisance trips or fail to trigger shutdown during severe bearing degradation.Field Rule: Upload validated site-specific channel scaling, alarm thresholds and Keyphasor speed parameters post replacement; inject calibrated gap voltage signal to each proximity channel and verify 4–20mA DCS readback matches machinery design limits before returning rotating equipment to automatic run mode.

Commercial Availability & Pricing Note

Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
