Component Snapshot At-a-Glance

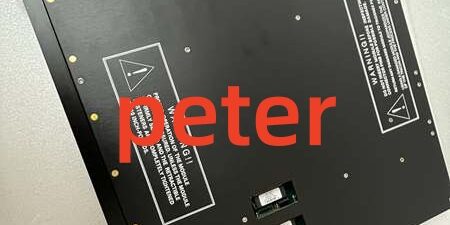

• Model: 3501TN2
• Alt. P/N: Base standard 3501; 3501TN = light coating; 3501TN2 = full heavy-duty conformal coated offshore harsh environment variant
• Product Series: Triconex Tricon Triple Modular Redundant (TMR) Safety Instrumented System (SIS)
• Hardware Type: Rack-mounted 32-channel isolated digital input (DI) TMR module
• Key Feature: 32 non-commoned 115VAC/VDC field inputs, triple independent signal legs, full PCB conformal coating for salt fog/chemical vapor corrosion resistance
• Primary Field Use: Collect hardwired trip switches, valve position feedback, fire/gas detectors, equipment fault contacts for SIL3 emergency shutdown and safety interlock logic.

Hard-Numbers: Technical Specifications

• Protocol Support: TriBus proprietary 25Mbps rack backplane bus, TriStation configuration software
• Port Count: 32 isolated digital input channels via dedicated rear TA terminal assembly; front panel per-channel LED status indicators
• Input Voltage Range: 90–155VAC / 90–155VDC nominal 115V class wet/dry contact inputs
• Input Current: 6–9mA per channel at nominal voltage
• Channel Isolation: 1500VAC galvanic isolation between each input bank and internal TMR logic
• Operating Temperature: -20°C to +70°C operational; -40°C to +85°C storage
• Isolation Rating: 1500VAC field-to-backplane isolation per channel group
• Power Draw: 5VDC TriBus backplane, max 5.2W per module
• Response Time: <10ms channel state update, software configurable filter delay
• Diagnostics: Per-channel open wire, short circuit, overvoltage fault detection
• Certifications: IEC 61508 SIL3, ATEX Zone 2, UL, CE, ISA-84 offshore marine coating rating
• Hot-Swap Capable: Yes, internal hold-up circuit prevents rack fault during live module replacement
• Humidity Rating: 5%–95% non-condensing
• Dimensions (H×W×D): 406mm × 33mm × 410mm
• Weight: 1.45kg

The Real-World Problem It Solves

Uncoated base 3501 and lightly coated 3501TN PCBs corrode rapidly in offshore FPSO, coastal refinery salt fog and chemical vapor environments. Single-path non-TMR digital input cards create unmitigated single-point failure risks that break SIL3 safety compliance for critical shutdown signals. Commoned input designs introduce ground loop noise and cross-channel signal leakage.Where you’ll typically find it:

• Refinery reactor, distillation unit ESD emergency shutdown safety racks
• Offshore drilling rig & FPSO fire/gas (F&G) toxic gas detection cabinet feedback inputs
• Fossil power plant boiler, turbine burner management SIL3 safety interlock racks

This heavy-duty fully coated TMR digital input card delivers 32 isolated high-voltage field points, eliminates single input leg failures, and resists corrosive plant air to extend service life in harsh industrial sites.

Hardware Architecture & Under-the-Hood Logic

Three fully independent identical digital signal processing legs (TMR triple redundancy); every input state undergoes hardware two-out-of-three voting to reject single-leg circuit faults or noise interference.

1. Rack backplane 5VDC feeds isolated power rails to each of three separate input conditioning assemblies.
2. Each channel independent optical isolation blocks field-side surges and EMI noise from polluting TMR logic.
3. 25Mbps TriBus backplane synchronously transmits validated digital input status to Tricon 3008N main processors every 10ms scan cycle.
4. Onboard fault diagnostics flag open wiring, short circuits and out-of-range voltage to TriStation HMI.
5. Front panel individual red LEDs display real-time channel energized state; global PASS/FAULT LEDs show module TMR voting health.
6. Full conformal coating fully encapsulates all PCB traces, ICs and passive components to block salt dust, moisture and corrosive chemical vapor.
7. Non-commoned channel design eliminates cross-channel leakage and ground loop crosstalk between separate field devices.

Field Service Pitfalls: What Rookies Get Wrong

Mismatched rear TA terminal assembly for 115V DI moduleTechs install 24VDC analog/digital TA blocks to 3501TN2 slot pinouts. Misaligned power and signal pins short field loops and blow internal input protection fuses.

• Field Rule: Only use dedicated 115V DI rear TA terminal assemblies; cross-reference TA drawing to module pin mapping before wiring.

Dual-ended shield grounding creates severe 50/60Hz measurement noiseInstallers bond cable shields to both field switch housing and cabinet terminal block. Large ground potential difference injects hum noise that flips digital input states randomly at steady operation.

• Quick Fix: Terminate shield only at the TA terminal block side; leave field end shield floating electrically.

Blocking rack side ventilation with dense cable bundlesStacking high-wattage PS8310 power supplies adjacent to 3501TN2 blocks chassis airflow. Sustained heat pushes operating temperature above 70°C, triggering TMR voting mismatch faults and intermittent channel dropout.

• Field Rule: Maintain minimum 30mm vertical clearance top and bottom of DI slot; clean cabinet intake air filters monthly to remove salt dust buildup.
