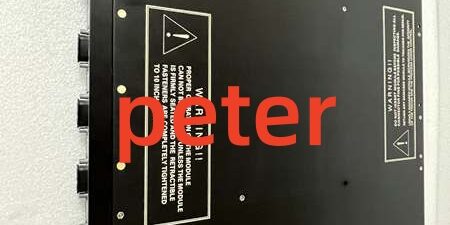

Component Snapshot At-a-Glance
- Model: 4352AN
- Alt. P/N: Base standard 4352A; suffix N = full PCB conformal coated harsh environment variant
- Product Series: Triconex Tricon Triple Modular Redundant (TMR) Safety Instrumented System (SIS)
- Hardware Type: Rack-mounted TCM (Tricon Communication Module) triple redundant communication gateway
- Key Feature: Triple independent communication processing legs, dual copper Ethernet + 4 multi-protocol serial ports, salt/fog resistant conformal coating
- Primary Field Use: Bi-directional data exchange between Tricon TMR main processors, plant DCS, HMIs, historians, and third-party PLCs for safety shutdown systems.
Hard-Numbers: Technical Specifications
- Protocol Support: Modbus TCP/IP, Modbus RTU, OPC, TriStation proprietary, RS232/422/485 serial, fiber media option
- Port Count: 2×10/100Mbps RJ45 Ethernet, 4×DB9 multi-mode serial ports, TriBus backplane edge connector
- TriBus Bus Rate: 25Mbps synchronous rack-wide communication
- Operating Temperature: 0°C to +60°C operational; -40°C to +85°C storage
- Isolation Rating: 1000V galvanic isolation between all external comm ports and TMR internal logic
- Power Draw: 5VDC backplane supply, max 11W per module
- Architecture: Full triple modular redundant signal processing with 2oo3 hardware voting
- Serial Baud Range: 300bps ~ 115.2kbps software configurable per channel
- Certifications: IEC 61508 SIL3, ATEX Zone 2, UL, CE, marine/offshore conformal coating rating
- Hot-Swap Capable: Yes, internal hold-up circuit avoids rack fault during live replacement
- Humidity Rating: 5%–95% non-condensing
- Dimensions (H×W×D): 406mm × 33mm × 410mm
- Weight: 1.52kg
The Real-World Problem It Solves
Uncoated base 4352A communication boards corrode rapidly in offshore FPSO, coastal refinery salt fog and chemical vapor environments. Single-path non-TMR communication cards create unmitigated single-point failure risks that break SIL3 compliance for safety interlock data links.Where you’ll typically find it:
- Refinery ESD emergency shutdown racks linking SIS to distributed DCS control systems
- Offshore drilling rig & FPSO fire/gas safety cabinets connecting to vessel HMIs and historians
- Fossil power plant boiler and turbine burner management safety instrumented racks
This triple redundant coated communication gateway eliminates single communication leg failures and resists corrosive plant air to extend service life in harsh industrial locations.
Hardware Architecture & Under-the-Hood Logic
Three fully independent identical communication processing legs (TMR triple redundancy); every data transmit/receive operation undergoes hardware two-out-of-three voting to suppress single-leg circuit faults.
- Rack backplane 5VDC feeds isolated power rails to each of three separate communication CPU assemblies.
- Each leg independently handles Ethernet and serial protocol conversion without shared signal circuits.
- 25Mbps TriBus backplane synchronously exchanges safety tag data with Tricon 3008N main processors.
- Hardware voting logic compares data packets from three legs; single leg mismatch flagged as fault without interrupting communication.
- Dual Ethernet ports support redundant plant LAN routing to eliminate single cable network failure.
- Conformal coating fully encapsulates all PCB traces and components to block salt dust, moisture and chemical vapor corrosion.
- Front panel PASS / FAULT / LINK LEDs display module health and per-port communication activity for rapid on-site diagnostics.
Field Service Pitfalls: What Rookies Get Wrong
Mismatched firmware revision across redundant 4352AN modulesTechnicians swap one 4352AN without flashing matching firmware to paired redundant communication cards. Cross-leg voting mismatch triggers constant MAJOR FAULT rack alarms and intermittent loss of DCS/SIS data exchange.
- Field Rule: Load identical TriStation firmware revision to all redundant TCMs; verify PASS LED steady green before returning rack to service.
Unshielded Ethernet cabling routed parallel to 480V motor power cablesUnshielded Cat5e cable picks up VFD and motor EMI noise. Constant packet loss creates missing safety alarms, broken SOE event timestamps and erratic setpoint communication.
- Quick Fix: Deploy shielded industrial Cat6 cable; ground cable shield only at cabinet switch end; separate power and signal cable trays by minimum 30cm.
Blocking rack side ventilation with dense wiring loomsStacking high-wattage PS8310 power supplies adjacent to 4352AN blocks chassis airflow. Sustained heat pushes operating temperature above 60°C, triggering communication timeouts and thermal fault alarms.
- Field Rule: Maintain minimum 30mm vertical clearance top and bottom of TCM slot; clean cabinet intake air filters monthly to remove salt dust buildup.
