Component Snapshot At-a-Glance

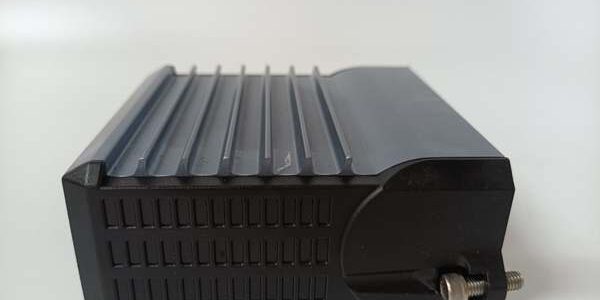

- Model: FBM224
- Alt. P/N: Factory base part number P0926GG, no cross-replacement OEM equivalent, suffix changes denote PCB revision only
- Product Series: Foxboro I/A Series / Evo DCS FBM peripheral communication family
- Hardware Type: Rack plug-in serial gateway PCB, pairs with dedicated TA terminal base assembly, aluminum shielded housing
- Key Feature: Four fully independent, galvanically isolated software-selectable RS232/422/485 ports supporting Modbus RTU/ASCII master operation
- Primary Field Use: Translate I/A backplane bus data into standard Modbus frames to pull/write values to remote VFDs, skid PLCs and smart process analyzers
Hard-Numbers: Technical Specifications
- Protocol Support: 2Mbps redundant I/A proprietary backplane bus + Modbus RTU/ASCII master protocol
- Port Count: 4 individually configurable serial ports per single module
- Baud/Data Rate: Backplane fixed 2Mbps; field baud selectable 300bps up to 115200bps per port
- Operating Temperature: -20°C ~ +60°C continuous rated cabinet operation; -40°C ~ +70°C non-operational storage
- Isolation Rating: 600VAC one-minute withstand isolation per channel, channel-to-backplane galvanic barrier
- Power Draw: Max 7W total operating power sourced entirely from rack 24VDC backplane feed
- Max Field Nodes: Up to 64 Modbus slave devices total across all four module ports; 2000 DCI register mapping limit
- Supported Wire Gauge: 16AWG through 24AWG solid copper for screw terminal field wiring
- Scan Timing: Per-slave adjustable scan cycle 0.5s ~ 255s via DCS software configuration
The Real-World Problem It Solves
Site crews previously stacked standalone external Modbus gateways inside cramped DCS cabinets, each requiring separate 24VDC power supplies and intermediate junction wiring. Extra hardware multiplied ground loop and surge failure points with no native DCS fault tagging for offline bus alerts.Where you’ll typically find it:
- Utility boiler control rack: Combustion fan and feedwater pump VFD parameter polling into I/A DCS database
- Refinery fractionation cabinet: Local skid-mounted PLC and online gas analyzer Modbus register data collection
- Offshore crude pump panel: Remote wellsite flow transmitters and motor protection device status acquisitionEliminating external gateway hardware cuts spare inventory and removes multiple intermediate wiring failure layers from control architecture.
Hardware Architecture & Under-the-Hood Logic
This card includes independent dedicated onboard ARM MCU per port bank plus discrete optocoupler isolation stacks separating field serial circuits from backplane transceiver logic; no shared line drivers between individual four channels to limit cross-channel noise bleed.
- Host FCP controller downloads Modbus address map, baud rate and polling schedule data over redundant 2Mbps I/A backplane bus
- Onboard MCU partitions four port tasks independently, storing unique slave register tables for each configured serial channel
- Internal logic converts native DCS DCI register values into compliant Modbus RTU read/write frame format before feeding isolated line driver circuitry
- Per-channel galvanic isolation blocks VFD switching surge and cabinet common-mode noise from propagating onto DCS rack backplane traces
- Detected parity errors, slave timeout and bus short faults get timestamped locally then transmitted back to DCS operator alarm display for troubleshooting
Field Service Pitfalls: What Rookies Get Wrong
Incorrect End-of-Bus Termination PlacementNew technicians install 120Ω termination resistor at multiple intermediate RS485 drop points instead of only trunk endpoints, creating signal reflection that triggers intermittent random slave dropouts during cabinet heat cycling.Field Rule: Mount 120Ω resistor exclusively at physical first and last device on each RS485 trunk; all mid-bus taps remain unterminated.
Dual-Ended Cable Shield Grounding On Modbus TrunksApprentices bond Modbus cable drain shield to earth at both module TA base and field device enclosures, creating voltage potential loops that inject AC hum and corrupt Modbus checksum values mid-scan.Quick Fix: Terminate cable shield solely at cabinet earth bar; leave all field-side shield ends floating ungrounded.
Mixed RS485/RS232 Devices On Single Configured PortRookie commissioning locks a port to RS485 mode then splices RS232 point-to-point device onto identical terminal strip; mismatched electrical levels burn internal port line driver chips instantly.Field Rule: Strictly isolate differing physical layer wiring onto separate module ports, match port software config to field device hardware standard before powering field loops.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
