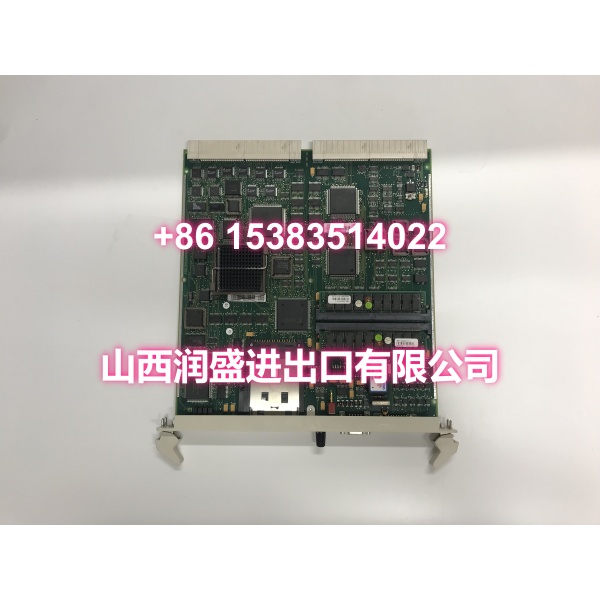

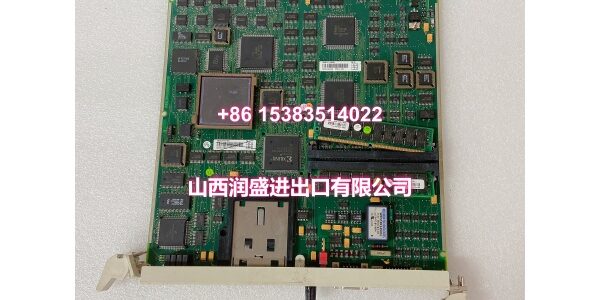

Product Quick Summary
- Model: PM511V08
- Part Number: 3BSE011180R1
- Brand: ABB
- Core Function: Processor module (CPU) for the Advant OCS and Advant Master distributed control systems
- Memory: 8 MByte dynamic RAM with ECC
- Expandable Storage: PCMCIA slot for flash memory card
- Condition: New surplus / legacy discontinued — ready to ship
- Origin: Finland
The PM511 series is the upgraded successor to the PM510, adding error-correcting memory and a PCMCIA slot for application storage. The V08 variant carries 8 MB of RAM.
Core Technical Specifications
| Parameter | Detail |
|---|---|
| Product Type | Processor Module (CPU) |
| Part Number | 3BSE011180R1 |
| System Platform | ABB Advant OCS / Advant Master |
| RAM Capacity | 8 MByte dynamic RAM with ECC |
| Expansion Slot | PCMCIA slot for flash memory card |
| Included Accessory | SIMM memory module (3BSC120004R2) — 2 pcs |
| Installation | Rack-mounted on Advant backplane |
| Communication Buses | MB300, AF100 |
| Status Indicators | LED (RUN, STOP, ERROR) |
| Country of Origin | Finland |
| Typical Use | Sequential control, PID regulation, I/O management |
| Condition | New surplus / legacy |
Engineer’s Perspective
The ABB PM511V08 3BSE011180R1 is the processor module that runs the logic in an ABB Advant OCS or Advant Master control rack. If you’re keeping a power plant, chemical process line, or water treatment facility online with this legacy platform, this CPU is the single most critical spare in your cabinet.
The PM511 series was ABB’s step up from the older PM510 line. The two key upgrades are the ECC-protected dynamic RAM — which catches and corrects single-bit memory errors before they cause a processor fault — and the PCMCIA flash card slot, which lets you store the application program on removable media instead of relying solely on a download from the engineering station. That PCMCIA slot is a lifesaver during a cold restart: pop in the card, power up, and the controller boots with its program already loaded.
The “V08” suffix means 8 MB of RAM. That’s enough headroom for most mid-size control programs with PID loops, interlocks, and sequential logic. If your site originally ran a PM511V16 (16 MB), this V08 won’t accept that larger program without trimming it down. But if you’re replacing a failed PM511V08 or upgrading from a PM510V08, this unit drops in cleanly.
Sourcing genuine, tested units matters here. ABB stopped producing these years ago, and the aftermarket is full of pulled modules with unknown histories. The ABB PM511V08 3BSE011180R1 is not a part you want to gamble on.
Installation, Compatibility & Risk Avoidance
Hardware compatibility: This module mounts directly into the Advant OCS/Advant Master rack backplane. Before swapping, verify your rack power supply has enough headroom — the PM511 draws slightly more current than the older PM510 due to the ECC memory circuitry.
PCMCIA card handling: If the replacement comes with a PCMCIA flash card already installed, do not remove it until you’ve confirmed the application program matches your plant’s current configuration. If the card is blank, you’ll need to download the program from your Control Builder engineering station.
ECC memory behavior: The ECC RAM will correct single-bit errors silently. If you see intermittent ERROR LED flashes that self-resolve, it’s likely the ECC doing its job — not necessarily a failing module. Persistent errors, however, indicate a deeper hardware issue.
Node address configuration: After installation, confirm the MB300 or AF100 node address matches the original. A mismatched address means the controller runs locally but is invisible to operator stations and peer controllers.
Memory downgrade caution: Replacing a PM511V16 (16 MB, part number 3BSE011181R1) with this V08 unit will fail if your program exceeds 8 MB. Check your compiled program size in Control Builder before attempting the swap.
Field Note: Before pulling the failed CPU, photograph the front panel LEDs, the DIP switch positions, and the PCMCIA card label. Also note the node address written on the rack label. Five seconds of documentation saves hours of guessing when the replacement doesn’t come up immediately.
Natural FAQ
Can I replace a PM510V08 with the PM511V08? Yes, in most cases. The PM511 is the direct successor to the PM510 and is backward compatible with the same rack backplane. The PM511 adds ECC memory and a PCMCIA slot — both improvements. Your existing program will download and run without modification. Confirm your rack power supply can handle the slightly higher current draw, though.
The module powers up but won’t accept a program download. What’s the first thing to check? Verify the PCMCIA slot. If a flash card is inserted and write-protected, the download will be blocked. Remove the card or unlock the write-protect switch, then retry. If no card is present, check that the module is in STOP mode — downloads won’t proceed while the CPU is in RUN.
Is this module tested before shipping? Yes. Every unit goes through incoming visual inspection, anti-counterfeit verification, live functional rack testing, electrical insulation checks, and static-proof packaging before it leaves our facility. We don’t ship untested legacy parts.
What’s the difference between the PM511V08 and the PM511V16? RAM capacity. The V08 (3BSE011180R1) has 8 MB; the V16 (3BSE011181R1) has 16 MB. Both have ECC memory and a PCMCIA slot. If your compiled program is under 8 MB, the V08 is a cost-effective replacement. If it exceeds 8 MB, you need the V16.
Do you offer warranty or return support? All modules are covered under our in-house warranty policy. If the ABB PM511V08 3BSE011180R1 fails to operate correctly upon installation under normal conditions, contact our support team for replacement or refund options.
