Product Core Brief

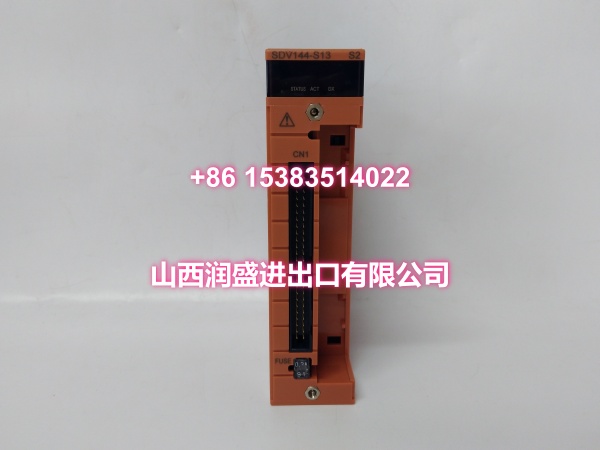

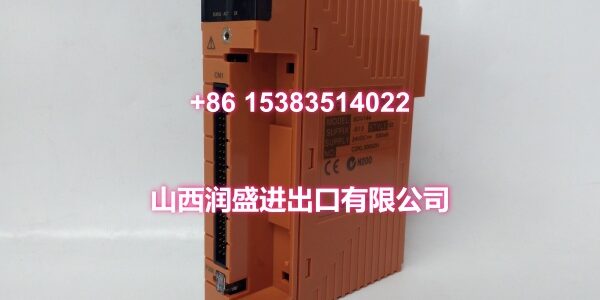

- Model: AKVZ31-M010/SDV144
- Brand: YOKOGAWA
- Series: ProSafe-RS Safety System
- Core Function: Receives and isolates sixteen 24VDC digital signals for safety interlocks.
- Product Type: Safety Digital Input Module
- Key Specs: 16 Channels | 24VDC | Signal Cable Adapter (-S63)
- Condition: New Original / New Surplus
Product Introduction
YOKOGAWA AKVZ31-M010/SDV144 digital input modules serve as the critical safety interface for the ProSafe-RS system. This industrial automation unit provides sixteen fully isolated channels for reliable safety signal acquisition.
The AKVZ31-M010/SDV144 includes the /SDV144 suffix, indicating it utilizes the SDV144-S63 hardware variant with a signal cable interface adapter. This specific replacement module saves procurement time by bundling the necessary wiring adapter for rapid field installation.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Input Signal | 24 VDC (Positive/Negative Common) |
| Number of Channels | 16 (Fully Isolated) |
| Safety Certification | SIL3 (Single Module Architecture) |
| Hardware Variant | -S63 |
| Wiring Interface | Signal Cable Adapter (No Explosion Proof) |
| Target Node Unit | SNB10D / SSC10 / SSC50 |
| Operating Temperature | -20°C to 70°C |
| Environmental Standard | ISA Standard G3 |
| Diagnostic Support | SCB100 / SCB110 Elements |
| System Compatibility | ProSafe-RS / CENTUM VP |
Quality Control Process
Every AKVZ31-M010/SDV144 undergoes strict hardware validation before shipping. We first inject precise 24VDC signals into all sixteen channels using calibrated power supplies to verify switching thresholds and LED indicators. Next, technicians use a Megger to test the isolation resistance between the ModuleBus and the input stages.
We also verify the included signal cable adapter by checking the pinout continuity and mechanical seating. The module is then powered up on a safety test rack to confirm stable node communication. Finally, the unit is sealed in anti-static packaging to protect the sensitive logic during transit.
Replacement Pitfall Guide
❗ Never mix up the wiring suffix codes. The /SDV144 suffix specifically uses the -S63 signal cable adapter. If your panel uses pressure-clamp terminals, you must order the -S53 variant instead.
❗ Verify the diagnostic element requirements. If using field wiring diagnostics, remember to install SCB100 (for open detection) or SCB110 (for short detection) near the field device. Missing these will cause false safety trips.
❗ Check the operating temperature range. This module is rated for -20°C to 70°C per ISA G3 standards. Installing it in an unventilated enclosure exceeding this limit will trigger thermal derating.
❗ Mind the safety architecture. The single module architecture is SIL3 certified, but ensure your node unit (SNB10D or SSC50) supports this specific input card before ordering.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor Model | Compatibility Level (Direct/Needs Adaptation) | Migration Notes |
|---|---|---|---|
| -S63 | YOKOGAWA / | Direct | Drop-in replacement with bundled adapter |
| -S53 | YOKOGAWA / | Needs Adaptation | Different wiring interface; requires terminal board swap |
| -SE3 | YOKOGAWA / | Needs Adaptation | Downgrading from explosion-proof to standard |
- Safety Integrity Level: Single module SIL3 certification simplifies safety architecture design.
- Channel Density: 16 fully isolated channels per module, maximizing backplane utilization for safety systems.
