Product Core Brief
- Model: F3237
- Brand: HIMA
- Series: H41q / H51q HIQuad
- Core Function: Processes discrete safety signals for emergency shutdown systems.
- Product Type: 8-Channel Digital Input Module
- Key Specs: 24 VDC | 2oo4D Architecture | TÜV SIL3/AK6
- Condition: New Original / New Surplus
Product Introduction

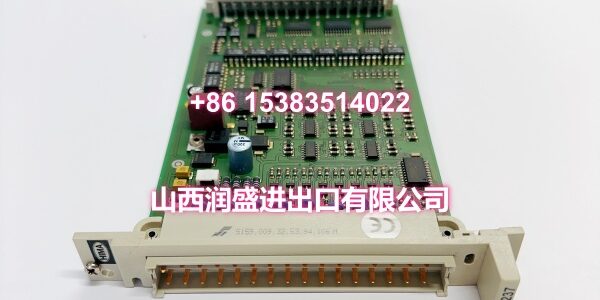

HIMA is an 8-channel digital input module for safety-critical systems. It reads discrete field signals and routes them through the QMR architecture.
This OEM controller operates safely from -40°C to +70°C. It supports hot-swapping with zero repair time restrictions during live operations.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | HIMA |
| Channel Count | 8 Channels |
| Nominal Voltage | 24 VDC |
| Signal “0” Range | 0.35–1.2 mA |
| Signal “1” Range | 2.1–6.0 mA |
| Switching Time | Typ. 8–10 ms |
| Max Line Length | 1000 m (0.5 mm²) |
| Safety Rating | TÜV SIL3 / AK6 |
| Redundancy | 2oo4D (QMR) |
| Diagnostic Storage | 500 Channel Events |
| Operating Temp | -40°C to +70°C |
Quality Control Process

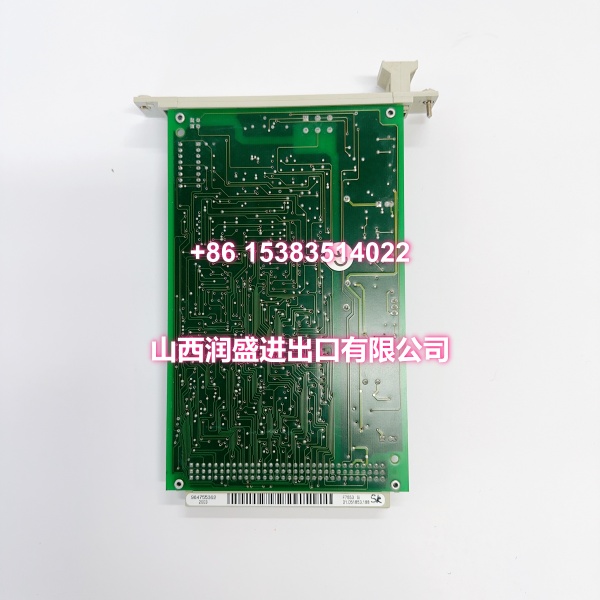

We test every HIMA rigorously before release. First, we inspect the PCB for cold solder joints or trace corrosion under magnification. Next, the industrial automation unit goes on a safety test bench. We inject precise milliamp signals to verify the “0” and “1” logic thresholds. We also trigger simulated short-circuit and wire-break faults to confirm diagnostic accuracy. Finally, we verify the internal closed-loop test functions and pack it in anti-static shielding.
Replacement Pitfall Guide
❗ Hot-Swap WD Switch: Never pull this module live without checking the WD switch. You must toggle it to “OFF” before disconnecting cables. Pulling it tilted can bend the backplane pins.
❗ Firmware Version Match: The OS version on the replacement module must match your existing system exactly. A version mismatch will trigger an immediate system stop.
❗ ACK Button Sync: After installing the new hardware, you must press the ACK button on the central CU module. Skipping this step prevents the redundant system from synchronizing states.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor Model | Compatibility Level (Direct/Needs Adaptation) | Migration Notes |
|---|---|---|---|
| HIMA | HIMA | Direct Drop-In | Verify OS version matches CU module |
| HIMA | HIMA F3236 | Needs Adaptation | Check channel count and wiring pinout |
- Switching Time: Typical 8 ms response for discrete inputs
- Diagnostic Coverage: 100% hardware self-test within one scan cycle
Need the wiring diagram for the ? I can pull up the terminal pinout layout for your reference.
