Product Core Brief
- Model: 330101-00-28-10-12-05
- Brand: BENTLY NEVADA
- Series: 3300 XL 8mm
- Core Function: Measures dynamic vibration and static position of rotating shafts.
- Product Type: Eddy Current Proximity Probe
- Key Specs: 8mm Tip Diameter | 1.2m System Length | 28mm Shell Length
- Condition: New Original / New Surplus
Product Introduction

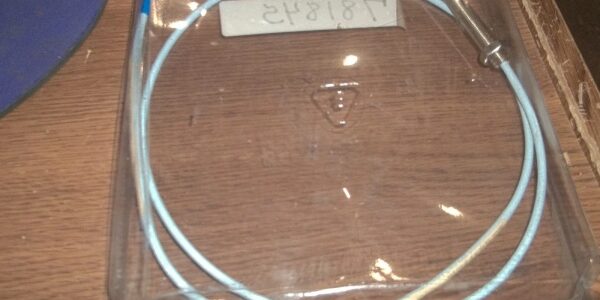

BENTLY 330101-00-28-10-12-05 is an 8mm eddy current proximity probe for shaft monitoring. It converts tip-to-target distance into a proportional voltage signal for your monitoring system.
This industrial automation unit offers a linear range of 2mm with 1.2m total system length. It maintains stability across -35°C to 177°C operating temperatures.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Probe Tip Diameter | 8mm (0.315 in) |
| System Electrical Length | 1.2 Meters |
| Shell Length (BB Code) | 28mm (1.10 in) |
| Linear Range | 2.0mm (80 mils) |
| Recommended Gap | 1.27mm (50 mils) |
| Operating Temperature | -35°C to +177°C |
| Thread Specification | 3/8-24 UNF |
| Cable Type | Standard Non-Armored |
| Connector Type | Micro-Coaxial |
| Compliance | API 670 (4th Ed) |
Quality Control Process
We verify every BENTLY 330101-00-28-10-12-05 before shipment. First, we measure DC resistance on the probe coil using a precision LCR meter. Values outside ±5% fail immediately.
Next, we perform a gap-voltage calibration check against a certified steel target. Linearity must stay within 1% across the full 2mm range. We also inspect the micro-coax connector pins under magnification for corrosion or bending.
Finally, each replacement module gets sealed in anti-static shielding with desiccant. This prevents moisture damage during transit.
Replacement Pitfall Guide
❗ System Length Mismatch: The “12” in your part number dictates a 1.2m total electrical length. Probe cable plus extension cable MUST equal this exactly. Even 10cm of error ruins calibration.
❗ Ground Loop Noise: Never ground the probe shield at both ends. This creates a ground loop that mimics vibration signals. Ground only at the proximitors side.
❗ Thread Engagement: The 3/8-24 UNF thread is fine-pitch. Cross-threading destroys the housing seal. Hand-start only, then torque to spec.
❗ Cable Routing: Keep probe cables away from VFD output lines. High-frequency switching noise will corrupt your displacement signal.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor Model | Compatibility Level | Migration Notes |
|---|---|---|---|
| 330101-00-28-10-12-05 | 330101-00-28-10-02-05 | Direct | Verify system length matches |
| 330101-00-28-10-12-05 | 330100-00-28-10-02-05 | Needs Adaptation | Older 3300 series; check linearity |
| 330101-00-28-10-12-05 | 330106-00-28-10-02-05 | Direct | XL series backward compatible |
- Sensitivity: 7.87 mV/µm (200 mV/mil) nominal
- Frequency Response: 0–10 kHz (-3dB)
Need the matching proximitors and cable kits for this probe? I can pull up the compatible 3300 XL system parts.
