Product Core Brief
- Model: MTL4549C
- Brand: MTL (Eaton Crouse-Hinds)
- Series: MTL4500 / MTL5500 Series Intrinsic Safety Isolators
- Core Function: Provides 3-port galvanic isolation and dual-channel signal output for hazardous area interfacing.
- Product Type: Dual Channel Output Isolator / Safety Barrier
- Key Specs: 3-Port Isolation | Open-Circuit Detection | HART Compatible | DIN Rail Mount
- Condition: New Original (New Surplus)
Product Introduction
The is a high-performance, dual-channel output isolator from the MTL4500 series, engineered for critical hazardous area interfacing. Unlike traditional Zener barriers, this isolator features advanced 3-port isolation (input, output, and power are mutually isolated), eliminating the need for a dedicated intrinsically safe grounding system and significantly simplifying system design and installation.
The is designed to handle 4-20mA signals and is fully compatible with HART communication protocols. A key diagnostic feature of this specific variant is its built-in open-circuit (broken line) detection, which alerts operators to field wiring faults without requiring short-circuit detection. Its compact, ultra-thin design and quick-release mechanism make it highly space-efficient and easy to maintain in dense control panels.

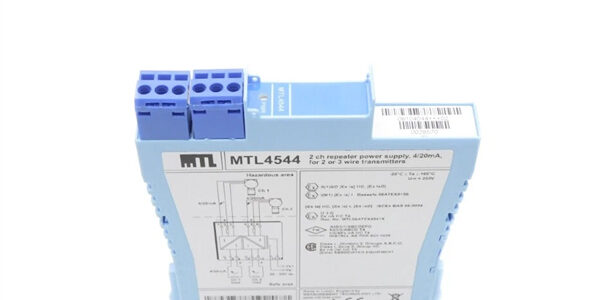

MTL 4544AS
Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Dual Channel Output Isolator |
| Isolation Type | 3-Port Isolation (Input, Output, Power) |
| Signal Compatibility | 4-20mA, HART Protocol |
| Diagnostics | Open-Circuit (Broken Line) Detection |
| Mounting | 35mm T-section DIN Rail |
| Installation | Quick Install and Release Mechanism |
| Module Packing Density | High-density multi-channel I/O |
| Origin | United Kingdom |
| Certifications | Intrinsic Safety (IS), Hazardous Area Standards |
Quality Control Process (Engineer’s Perspective)
We don’t just box these and ship them. Here is our actual bench test workflow.
- Incoming Verification: We verify the serial number against MTL/Eaton traceability records. A visual inspection checks for physical damage, ensures the DIN rail clip is intact, and verifies the quick-release mechanism functions smoothly.
- Live Functional Test: We mount the unit in a live test rack. We inject 4-20mA signals into both channels and verify that the dual isolated outputs accurately replicate the input signal.
- HART Communication Test: We connect a HART communicator to verify that digital protocol signals pass through the module without degradation or interference.
- Diagnostic Injection Test: We intentionally disconnect the field loop to confirm the module’s open-circuit detection triggers the appropriate alarm/status indicator.
- Final QC & Packaging: The module is sealed in an anti-static bag with silica gel. A QC sticker showing the test date and technician initials is applied to the exterior.
Replacement Pitfall Guide
Field replacements on safety barriers are unforgiving. Watch out for these traps.
- Diagnostic Variant Mismatch: ❗ Critical. The only provides open-circuit (broken line) detection. It does not have short-circuit detection. If your legacy system or safety logic relies on short-circuit alarms, replacing it with a 4549C will result in missing fault data. Verify your exact diagnostic requirements.
- Grounding Requirements: ❗ Critical. Because the utilizes 3-port isolation, it does not require a dedicated IS ground. Attempting to ground the safe-area side unnecessarily can introduce ground loops and defeat the purpose of the isolation.
- HART Signal Integrity: While HART compatible, ensure that the loop impedance and field wiring are within spec. Excessive capacitance in the field cable can attenuate the HART signal, even if the 4-20mA analog signal looks fine.
- Terminal / Cable Incompatibility: Inspect the field wiring before connecting. An open wire will trigger the module’s open-circuit diagnostic, mimicking a module failure. Ensure terminal screws are torqued to spec to prevent intermittent connections.
- ESD Damage: Safety barriers are sensitive to electrostatic discharge. Always wear a grounded wrist strap when handling the bare PCB. I’ve seen modules fail bench testing because they were handled on a dry winter day without protection.
Keep these in mind and you’ll cut 90% of rework time.
MTL 4544AS
Compatibility Matrix & Benchmarks
Compatibility
- MTL → : Direct Replacement – Verify open-circuit diagnostic requirement.
- MTL MTL4549Y → : Needs Adaptation – The 4549Y includes both open and short-circuit detection. Downgrading to a 4549C will lose short-circuit diagnostics.
- MTL MTL4500 Series → MTL5500 Series : Upgrade Path – MTL5500 is the newer generation with higher packing density; verify footprint and backplane compatibility.
Benchmarks
- Signal Accuracy: 4-20mA pass-through with < 0.1% error
- Diagnostic Response: < 100 ms (from open-circuit fault to alarm assertion)
Need the wiring diagram for the ? I can pull up the termination schematic showing the 3-port isolation connections and the correct wiring for HART-compatible field devices.
