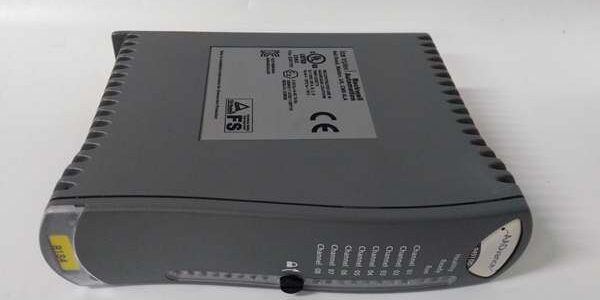

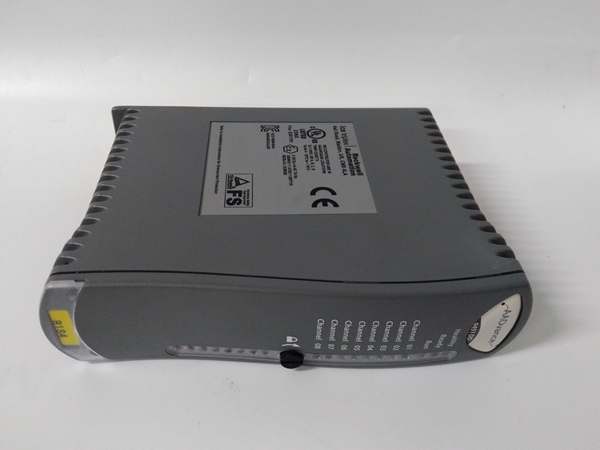

Product Core Brief
- Model: T9451
- Brand: ICS TRIPLEX (Rockwell Automation)
- Series: AADvance / Trusted TMR
- Core Function: Drives 8 channels of 24 VDC digital outputs with triple-modular redundancy for safety systems.
- Product Type: Digital Output (DO) Module
- Key Specs: 8 Channels | 24 VDC | 1 A Continuous Load
- Condition: New Original (New Surplus)
Product Introduction
ICS TRIPLEX serves as an 8-channel digital output module for AADvance and Trusted TMR safety systems. This unit switches field loads through three independent voting circuits to ensure fail-safe operation.
Unlike standard DO cards, this module supports Hardware Implemented Fault Tolerance (HIFT) to mask internal failures without spurious trips. Output voltage tolerance spans up to 32 VDC with full channel diagnostics. Verify with OEM datasheet for exact short-circuit protection thresholds.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Output Channels | 8 Independent |
| Output Voltage | 24 VDC (Max 32 VDC) |
| Continuous Current | 1 A Per Channel |
| Signal Type | Digital Output (Sourcing) |
| Isolation | Channel-to-Channel |
| Safety Rating | SIL3 (IEC 61508) |
| Fault Tolerance | HIFT / TMR |
| Operating Temp | -40 °C to +85 °C |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: We trace source serial numbers against factory records. Visual inspection checks for pin corrosion or PCB scratches.
- Live Functional Test: Power-on self-check runs first. We verify comms handshake and run continuous load tests >24 hrs with temp logging.
- Electrical Parameter Test: Insulation resistance gets tested at 500 V Megger (>10 MΩ required). Ground continuity is mandatory.
- Firmware Verification: Read and record firmware version immediately. Photograph DIP switch and jumper settings before racking.
- Final QC & Packaging: Seal in anti-static bag. Apply QC Passed label with test date and engineer initials.
Replacement Pitfall Guide
❗ Firmware Mismatch: New module firmware may conflict with older AADvance controllers. Always check version compatibility before racking.
❗ DIP Switch / Jumper Misconfiguration: Factory defaults rarely match field settings. Verify bus termination resistor placement on the third terminal block.
❗ Terminal / Cable Incompatibility: Pin definitions change between revisions. Check shield grounding at the T9193 terminal board to prevent noise.
❗ Power Supply Mismatch: Calculate total rack power draw. Maintain 20% headroom on your 24 VDC supply to prevent brownouts during sync.
❗ ESD Damage: Use anti-static mat and wrist strap. Dry environments increase failure risk during handling.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
- → T9451K17 : Direct — Verify hardware revision suffix
- → T9402 : Incompatible — Digital Input module, not output
- → T8461 : Incompatible — Different chassis and channel count
Benchmarks:
- Scan cycle: 0.924 ms (simulated load, 8 DO points)
- Comms throughput: N/A (TriBus backplane)
