Product Core Brief
- Model: T8800
- Brand: ICS Triplex / Rockwell Automation
- Series: Trusted TMR Safety System
- Core Function: Acquires isolated analog field signals with HART support for safety-critical logic evaluation.
- Product Type: 8-Channel Isolated Analog Input Module
- Key Specs: 8 Channels | 4-20mA / 0-20mA | 12-bit Resolution | SIL3 Certified
- Condition: New Original (New Surplus)
Product Introduction
The is a high-integrity 8-channel analog input module specifically engineered for the Trusted TMR (Triple Modular Redundancy) safety system. It serves as the critical sensing interface for continuous process variables, providing galvanic isolation between each channel and ground to ensure signal integrity in electrically noisy industrial environments.
Built on the Trusted TMR platform, the supports standard 4-20mA and 0-20mA current loops, as well as HART protocol pass-through communication. This allows operators to retrieve advanced field device diagnostics without compromising the safety loop’s integrity. With 12-bit resolution and comprehensive per-channel diagnostics, it is ideal for SIL3 safety applications in oil & gas, power generation, and chemical processing.

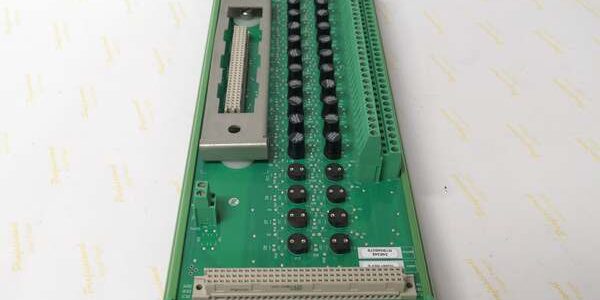

ICS TRIPLEX T8800
Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | 8-Channel Isolated Analog Input Module |
| System Compatibility | ICS Triplex Trusted TMR Rack |
| Channel Count | 8 Independent Isolated Channels |
| Input Signals | 0-20 mA, 4-20 mA (Single-ended, Unipolar) |
| Resolution | 12-bit |
| HART Support | HART Pass-Through Communication |
| Safety Integrity Level | SIL3 (IEC 61508 / EN 954-1 Cat 4) |
| Isolation | 1 Group of 8 Channels Isolated from Ground |
| Diagnostics | Loop Monitoring, Open/Short Detection, Over/Under Range |
| Power Supply | Per-Channel Current-Limited Transmitter Power |
| Certifications | IEC 61508 SIL3, TÜV Certified, NAMUR NE43 |
Quality Control Process (Engineer’s Perspective)
We don’t just box these and ship them. Here is our actual bench test workflow.
- Incoming Verification: We verify the serial number against ICS Triplex traceability records. A visual inspection checks for bent pins on the backplane connector and ensures the front panel status LEDs are intact.
- Live Functional Test: We mount the unit in a live TMR test rack. We inject calibrated 4-20mA signals across all 8 channels and verify the 12-bit ADC conversion accuracy and HART communication handshake.
- Electrical Parameter Test: We perform a 500 V Megger test between the field input terminals and the backplane/ground. Insulation resistance must exceed 10 MΩ. Ground continuity is verified.
- Diagnostic Injection Test: We intentionally inject open-circuit, short-circuit, and out-of-range faults to confirm the module’s internal diagnostics trigger the correct fault codes and NAMUR NE43 limits without false tripping.
- Final QC & Packaging: The module is sealed in an anti-static bag with silica gel. A QC sticker showing the test date and technician initials is applied to the exterior.
Replacement Pitfall Guide
Field replacements on TMR safety systems are unforgiving. Watch out for these traps.
- Firmware Mismatch: ❗ Critical. A brand-new might have a newer firmware revision than your existing TMR CPU. The controller will block it with a configuration mismatch fault. Always check your system’s allowed firmware matrix before installing.
- HART Configuration: ❗ Critical. Verify whether your system requires HART pass-through. If you replace a standard AI module with the (or vice versa), the controller may flag a configuration mismatch. Ensure the HART setting matches the original module.
- Terminal / Cable Incompatibility: Inspect the shielded cabling before connecting. Analog signals are highly susceptible to electrical noise; a broken shield or ground loop will cause erratic readings that mimic process alarms or trigger false diagnostics.
- Power Supply Headroom: This module provides per-channel current-limited transmitter power. Verify your external 24 VDC field power supply has adequate headroom to handle the cumulative load of all connected 2-wire transmitters.
- ESD Damage: Safety modules are highly sensitive to electrostatic discharge. Always wear a grounded wrist strap when handling the bare PCB. I’ve seen modules fail bench testing because they were handled on a dry winter day without protection.
Keep these in mind and you’ll cut 90% of rework time.
ICS TRIPLEX T8800
Compatibility Matrix & Benchmarks
Compatibility
- ICS Triplex Rev A → Rev B : Direct Replacement — Verify firmware compatibility with TMR CPU.
- ICS Triplex T8432 → : Needs Adaptation — T8432 is a dual AI module; replacing with 8-channel requires logic and configuration re-validation.
Benchmarks
- Signal Conversion: 12-bit resolution (verify exact % tolerance with OEM datasheet)
- Diagnostic Response: < 10 ms (from fault detection to controller notification)
Need the wiring diagram for the 8-channel analog inputs? I can pull up the termination schematic showing the 2-wire HART transmitter configurations, shield grounding points, and isolated channel grouping.
