Product Core Brief

• Model: T8850 (also known as 1092350000)
• Brand: ICS Triplex / Rockwell Automation
• Series: Trusted TMR Safety System
• Core Function: Provides 40 channels of high-reliability digital outputs for safety-critical control applications.
• Product Type: 40-Channel Digital Output Module / High-Performance Interface
• Key Specs: 40 TMR Channels | 1ms SOE Resolution | Hot-Swappable
• Condition: New Original (New Surplus)

Product Introduction

The is a high-performance digital output module designed for the Trusted TMR (Triple Modular Redundancy) safety system. Engineered for critical industrial environments, this module provides 40 independent output channels with comprehensive fault tolerance.

The features advanced diagnostic capabilities, including automatic line monitoring for open and short circuits, as well as automatic overcurrent protection for each channel without the need for external fuses. It supports online hot-swapping via dedicated companion modules, ensuring maximum system availability and zero process interruption during maintenance.

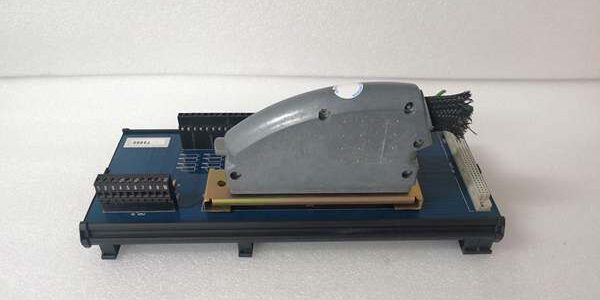

TRICONEX T8850

Key Technical Specifications

Quality Control Process (Engineer’s Perspective)

We don’t just box these and ship them. Here is our actual bench test workflow.

1. Incoming Verification: We verify the serial number against ICS Triplex traceability records. A visual inspection checks for bent pins on the backplane connector and ensures the front panel LEDs are intact.
2. Live Functional Test: We mount the unit in a live TMR test rack. We force outputs across all three redundant slices (A, B, C) and verify accurate switching and status LED updates.
3. Electrical Parameter Test: We perform a 500 V Megger test between the field output terminals and the backplane. Insulation resistance must exceed 10 MΩ. Ground continuity is verified.
4. Diagnostic Injection Test: We intentionally inject open-circuit and short-circuit faults to confirm the module’s auto-line monitoring triggers the correct fault codes without tripping adjacent channels.
5. Final QC & Packaging: The module is sealed in an anti-static bag with silica gel. A QC sticker showing the test date and technician initials is applied to the exterior.

Replacement Pitfall Guide

Field replacements on TMR safety systems are unforgiving. Watch out for these traps.

1. Firmware Mismatch: ❗ Critical. A brand-new might have a newer firmware revision than your existing TMR CPU. The controller will block it with a configuration mismatch fault. Always check your system’s allowed firmware matrix before installing.
2. Power Group Wiring: The 40 outputs are powered in groups of 8 (Power Groups). If you are replacing the module, ensure the field power wiring matches the original PG configuration. Missing a power group will result in dead output channels.
3. Terminal / Cable Incompatibility: Inspect the field wiring before plugging in the new card. A shorted solenoid or grounded cable will immediately trip the ‘s internal overcurrent protection, locking out the channel and mimicking a module failure.
4. Hot-Swap Procedure: While the module supports hot-swapping, always follow the TMR system’s specific hot-swap procedure. Improper removal can cause a momentary mismatch in the redundant slices, potentially triggering a system fault.
5. ESD Damage: Safety modules are highly sensitive to electrostatic discharge. Always wear a grounded wrist strap when handling the bare PCB. I’ve seen modules fail bench testing because they were handled on a dry winter day without protection.

Keep these in mind and you’ll cut 90% of rework time.

TRICONEX T8850

Compatibility Matrix & Benchmarks

Compatibility

• ICS Triplex Rev A → Rev B : Direct Replacement — Verify firmware compatibility with TMR CPU.
• ICS Triplex → 1092350000 : Direct Replacement — Same module, OEM part number format.

Benchmarks

• SOE Resolution: 1 ms (verified timestamp accuracy during fault injection)
• Diagnostic Response: < 10 ms (from fault detection to controller notification)
