Product Core Brief
- Model: FC-SDO-0824 V1.3
- Brand: Honeywell
- Series: Safety Manager
- Core Function: Provides eight fault-safe digital outputs with built-in watchdog timers for critical shutdowns.
- Product Type: Safe Digital Output Module
- Key Specs: 8 Channels | 24 VDC | 550 mA Max Load
- Condition: New Original (New Surplus)
Product Introduction

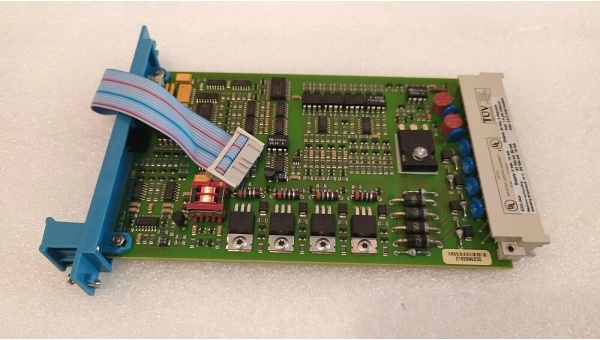

HONEYWELL FC- V1.3 acts as an 8-channel fault-safe digital output module for safety-critical applications. This unit guarantees outputs close safely during power loss or system faults.
Unlike standard DO cards, this module integrates a watchdog timer that resets outputs if valid signals stop. It drives resistive or inductive loads up to 13 W. Verify with OEM datasheet for exact SIL certification levels.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Output Channels | 8 Independent |
| Output Voltage | 24 VDC |
| Max Load Current | 550 mA per Channel |
| Max Load Power | 13 W |
| Safety Rating | SIL2 / SIL3 |
| Load Types | Resistive & Inductive |
| Protection | NEMA 4X / IP66 |
| Mounting | DIN Rail |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: We trace source serial numbers against factory records. Visual inspection checks for pin corrosion or PCB scratches.
- Live Functional Test: Power-on self-check runs first. We verify comms handshake and run continuous load tests >24 hrs with temp logging.
- Electrical Parameter Test: Insulation resistance gets tested at 500 V Megger (>10 MΩ required). Ground continuity is mandatory.
- Firmware Verification: Read and record firmware version immediately. Photograph DIP switch and jumper settings before racking.
- Final QC & Packaging: Seal in anti-static bag. Apply QC Passed label with test date and engineer initials.
Replacement Pitfall Guide
❗ Firmware Mismatch: New module firmware may conflict with older Safety Manager controllers. Always check version compatibility before racking.
❗ DIP Switch / Jumper Misconfiguration: Factory defaults rarely match field settings. Verify bus termination resistor placement on the third terminal block.
❗ Terminal / Cable Incompatibility: Pin definitions change between revisions. Check shield grounding at the terminal board to prevent noise.
❗ Power Supply Mismatch: Calculate total rack power draw. Maintain 20% headroom on your 24 VDC supply to prevent brownouts.
❗ ESD Damage: Use anti-static mat and wrist strap. Dry environments increase failure risk during handling.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
- FC- V1.3 → FC- : Direct — Verify hardware revision suffix

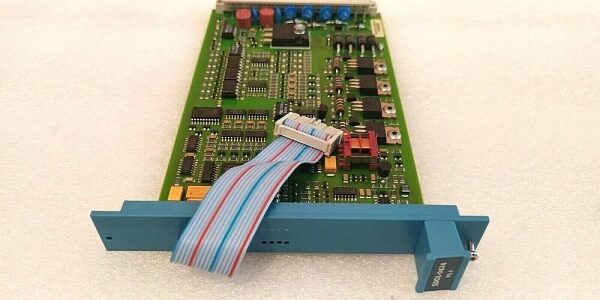

- FC- V1.3 → SDOL-0424 : Incompatible — Different channel count (8 vs 4)
- FC- V1.3 → FC-SDI-0824 : Incompatible — Input module, not output
Benchmarks:
- Scan cycle: 50 ms (simulated load, 8 safety points)
- Comms throughput: N/A (Safety backplane)
