Product Core Brief
- Model: SDO-0824
- Brand: HONEYWELL
- Series: Safety Manager / FSC
- Core Function: Drives safety-critical field devices with integrated fault-safe diagnostics.
- Product Type: Safety Digital Output Module
- Key Specs: 8 Channels | 24 VDC | 550 mA
- Condition: New Original (New Surplus)
Product Introduction
HONEYWELL serves as an eight-channel fault-safe digital output module for safety instrumented systems. It continuously monitors output integrity and forces a safe state upon system failure.
This unit delivers up to 550 mA per channel to drive inductive or resistive loads up to 13 W. An integrated watchdog timer automatically resets outputs if valid signals are lost. Verify with OEM datasheet for exact diagnostic test intervals, though standard configurations cover break and short detection.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Channel Count | 8 Independent Outputs |
| Nominal Voltage | 24 VDC |
| Max Output Current | 550 mA per channel |
| Max Load Power | 13 W per channel |
| Safety Integrity | SIL2 / SIL3 (EN61508) |
| Diagnostic Features | Break, Short, and Crosstalk Test |
| Protection | Integrated Suppression Diodes |
| Watchdog Timer | Automatic Safe State on Timeout |
| Series Compatibility | Safety Manager 4000/5000/6000 |
| Mounting | DIN Rail / Chassis |

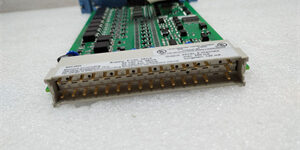

Honeywell SDO-0824
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: We trace source documentation and verify serial numbers against anti-counterfeit databases. Visual inspection checks for PCB corrosion or connector scratches.
- Live Functional Test: Power-on self-tests run first. We verify communication handshakes and execute continuous load runs exceeding 24 hours with temperature logging.
- Electrical Parameter Test: Insulation resistance gets measured at 500 V using a Megger. Readings must exceed 10 MΩ. Ground continuity is also confirmed.
- Firmware Verification: We read and record the firmware version. DIP switch and jumper settings receive photographic documentation before shipping.
- Final QC & Packaging: The unit seals in an anti-static bag. A QC Passed label with the test date goes on the exterior.
Replacement Pitfall Guide
❗ Firmware Mismatch: New hardware often ships with newer firmware. This causes bus errors if the controller expects an older revision. Always match the existing system version.
❗ DIP Switch / Jumper Misconfiguration: Factory defaults rarely match your field settings. Check the bus termination resistor position on the third terminal block. Wrong settings kill communication.
❗ Terminal / Cable Incompatibility: Pin definitions change between revisions. Verify shield grounding at the cabinet entry point. Floating shields introduce noise into safety channels.
❗ Power Supply Mismatch: Calculate total rack power consumption carefully. Add 20% headroom for inrush currents. Undersized supplies cause intermittent module resets during startup.
❗ ESD Damage: Use a grounded anti-static mat during installation. Dry environments increase static risk significantly. One spark destroys internal logic gates.
Keep these in mind and you’ll cut 90% of rework time.
Honeywell SDO-0824
Compatibility Matrix & Benchmarks
- HONEYWELL → HONEYWELL : Direct — Identical replacement
- HONEYWELL → HONEYWELL FC- : Direct — FC prefix denotes chassis-specific form factor, verify backplane compatibility
- HONEYWELL → HONEYWELL FS- : Direct — FS prefix denotes field-specific variant, check diagnostic test interval
- HONEYWELL → HONEYWELL CC-TDOB01 : Incompatible — CC-TDOB01 is a non-safety digital output module
- Diagnostic Test Cycle: < 50 ms (Full channel sweep)
- Safe State Response: < 10 ms (Watchdog timeout to de-energize)
