Product Core Brief

• Model: 2104B2131
• Brand: Honeywell
• Series: Searchline Excel
• Core Function: Receives infrared signals to detect hydrocarbon gas over long open paths.
• Product Type: Open Path IR Receiver (ATEX)
• Key Specs: 40–120 m Range | ATEX Certified | 4–20 mA Sink
• Condition: New Original (New Surplus)

Product Introduction

The Honeywell 2104B2131 is the ATEX-certified medium-range receiver for the Searchline Excel open-path gas detection system. It pairs with a transmitter to monitor hydrocarbon concentrations across distances up to 120 meters in hazardous areas.

This unit features a 4–20 mA sink output and supports MODBUS digital diagnostics for remote health monitoring. Unlike point detectors, the Honeywell 2104B2131 provides continuous line-of-sight coverage, making it ideal for perimeter leak detection in refineries and LNG terminals.

Key Technical Specifications

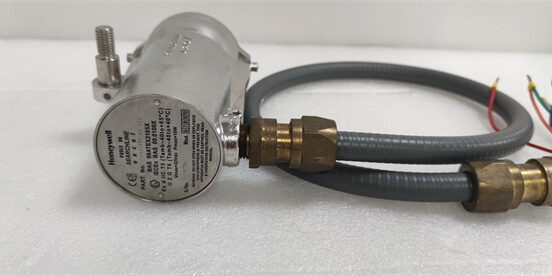

Honeywell 2104B2131

Quality Control Process (Engineer’s Perspective)

We don’t just box these and ship them. Here is our actual bench test workflow.

1. Incoming Verification: We verify the serial number against Honeywell’s traceability records. A visual inspection checks the IR window for micro-scratches and ensures the ATEX cable glands are intact.
2. Live Functional Test: We pair the unit with a calibrated transmitter in a test tunnel. We verify the 4–20 mA output scales linearly with gas concentration using a Fluke 754 process calibrator.
3. Electrical Parameter Test: We perform a 500 V Megger test between the signal leads and the chassis. Insulation resistance must exceed 10 MΩ. Ground continuity is verified.
4. Firmware Verification: We read the module’s internal firmware revision via the MODBUS port. We photograph the DIP switch settings to ensure they match factory defaults before shipping.
5. Final QC & Packaging: The module is sealed in an anti-static bag with silica gel. A QC sticker showing the test date and technician initials is applied to the exterior.

Replacement Pitfall Guide

Field replacements on open-path systems are unforgiving. Watch out for these traps.

1. Firmware Mismatch: ❗ Critical. A brand-new Honeywell 2104B2131 might have a newer firmware revision than your existing transmitter. The Searchline Excel system requires matched firmware for accurate path-length compensation. Always check your system’s allowed firmware matrix before installing.
2. DIP Switch / Jumper Misconfiguration: This receiver uses hardware jumpers for sink/source selection and MODBUS addressing. If you pull the old card and forget to transfer the jumper settings, the controller will read 0 mA or fail to poll the device.
3. Terminal / Cable Incompatibility: Inspect the shielded cable before connecting. Open-path IR signals are sensitive to ground loops; a broken shield or double-grounded cable will cause erratic 4–20 mA readings that mimic gas alarms.
4. Power Supply Mismatch: Verify your loop power supply has at least 20% headroom. The receiver draws current from the transmitter loop; if you have long cable runs, calculate voltage drop to ensure the receiver gets >18 VDC.
5. ESD Damage: The IR detector is sensitive to electrostatic discharge. Always wear a grounded wrist strap when handling the bare PCB. I’ve seen receivers fail bench testing because they were handled on a dry winter day without protection.

Keep these in mind and you’ll cut 90% of rework time.

Honeywell 2104B2131

Compatibility Matrix & Benchmarks

Compatibility

• Honeywell 2104B2131 (Medium) → 2104B2151 (Long) : Incompatible — Different optical path length; requires recalibration.
• Honeywell 2104B2131 Rev A → 2104B2131 Rev B : Direct Replacement — Verify firmware compatibility with transmitter.

Benchmarks

• Response Time (t90): < 30 s (to 90% of final value)
• Alarm Accuracy: ±3% LEL (verified at 50% LEL setpoint)

Need the MODBUS register map for the Honeywell 2104B2131? I can pull up the address table so you can verify the diagnostics without the Optima Plus hand-held.
