Product Core Brief

• Model:
• Brand: GE Fanuc / Emerson Automation
• Series: PACSystems RX3i
• Core Function: High-performance non-redundant main CPU module, executes IEC control logic, manages local RX3i I/O and serial expansion racks, provides dual serial communication interfaces.
• Product Type: Dual-width RX3i CPU Controller (occupies 2 consecutive backplane slots)
• Key Specs: 1 GHz Intel Celeron M | 64MB Battery-backed RAM + 64MB Flash | Dual RS232/RS485 serial ports | Dual backplane bus (RX3i PCI + Series 90-30 serial expansion bus) Note: Discontinued legacy RX3i CPU; new original stock limited, surplus & refurbished widely available. -HS = PCB hardware revision suffix, mechanically interchangeable with other variants (-HU, -GL, -HV etc.). Does NOT support hot swap. No onboard Ethernet; Ethernet communication requires IC695ETM001 module. Not designed for hot standby redundancy (redundant systems must select IC695CRU320).



Key Technical Specifications

• Processor: 1 GHz Intel Celeron M
• Boolean Execution Speed: Typical 0.047 ms / 1000 Boolean instructions
• Supported Programming Languages: LD, FBD, ST, IL, C program blocks
• Memory
  • 64 MB Battery-backed RAM
  • 64 MB Non-volatile Flash memory
• I/O Tag Capacity
  • Discrete: 32K %I / 32K %Q
  • Analog: Configurable up to 32K %AI / 32K %AQ
• Onboard Serial Interfaces
  • COM1: RS232 (9-pin D-Sub)
  • COM2: RS485 (9-pin D-Sub)
  • Protocols: SNP/SNPX, Modbus RTU Master/Slave, Serial I/O
• Backplane Architecture: Dual bus
  • Native high-speed RX3i PCI backplane
  • Serial expansion bus for Series 90-30 I/O via IC695LRE001
• Power Consumption
  • 3.3 VDC: 1.0 A
  • 5 VDC: 1.2 A
• RTC: Battery-backed real-time clock
• Required Backup Battery: IC695ACC302 lithium battery for retentive memory & RTC

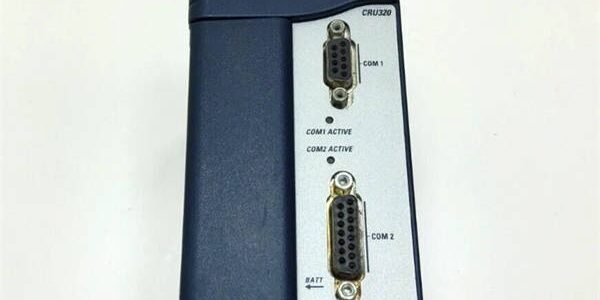

• Front Panel LED Indicators: CPU OK, RUN, OUTPUTS ENABLED, FORCE, SYS FLT, COM1/COM2 activity
• Operating Temperature: 0°C ~ +60°C horizontal cabinet mounting
• Storage Temperature: -40°C ~ +85°C
• Form Factor: Dual-width module, occupies two adjacent RX3i slots
• Compatible Baseplates: IC695CHS012, IC695CHS016 universal RX3i racks
• Supported Software: Proficy Machine Edition
• Agency Certifications: UL508, Class I Div.2, CE



Product Introduction

is a high-performance non-redundant dual-slot CPU for PACSystems RX3i platform. It serves as the main process/machine controller for non-redundant automation systems.

Unique dual-bus design allows mixing modern RX3i I/O on the main rack and legacy Series 90-30 I/O on remote serial expansion racks, supporting incremental plant migration from Series 90-30 systems.

Important Distinction

1. : Cannot pair with RMX redundancy modules for hot standby failover.
2. IC695CRU320 = Redundant CPU: Supports primary/backup hot standby with IC695RMX128/RMX228. They share similar physical appearance but are not interchangeable.

No built-in Ethernet port. Network communication (SRTP, EGD, Modbus TCP) requires installing IC695ETM001 Ethernet module on adjacent slots.



QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Verify part marking and -HS revision suffix. Inspect backplane gold pins for bending/corrosion; check serial D-Sub connectors and housing integrity.
2. Live Testing: Mount onto validated RX3i baseplate. Load user control program, verify logic cyclic execution, test Modbus/SNP serial communication, run continuous 24-hour scan stability test.
3. Electrical Testing: Monitor backplane 3.3V/5V rail stability. Insulation resistance ≥10MΩ between serial field terminals and chassis protective ground.
4. Firmware Record: Document CPU firmware revision; photograph front panel labels before clearing resident program and retentive data.
5. Final QC & Packaging: Place module inside anti-static shielding. Attach dated QC test tag confirming logic execution and serial communication validation prior to shipment.



Installation Pitfalls & Guide

❗ No Hot Swap Support: The dual-slot CPU module cannot be hot swapped. Full rack power shutdown required before removal. Standard I/O modules support hot swap on certified baseplates. ❗ Dual Slot Occupancy Rule: Must occupy two consecutive empty slots. Do not place any single-width module between the two CPU slots. ❗ Redundancy Hardware Incompatibility: This CPU cannot use IC695RMX128/RMX228 redundancy synchronization modules. For hot standby redundancy, select IC695CRU320. ❗ Ethernet Layout Planning: If deploying IC695ETM001, reserve adjacent slots and avoid occupying the CPU’s required dual slot space. ❗ Battery Maintenance: Without IC695ACC302 battery, retentive variables and real-time clock will be lost after power cycle. ❗ Revisione: and other suffix variants (-HU, -GL etc.) are mechanically plug-compatible. After replacement, verify firmware compatibility and full system I/O validation. ❗ ESD Risk: Static discharge damages serial transceivers and backplane interface circuits, leading to intermittent serial communication faults.

Replacement Guide

1. Pre-install: Lockout-tagout rack power; back up complete PLC project. Photograph slot layout, serial wiring and battery connection.
2. Removal: Disconnect serial cables; unlatch dual-slot CPU and slide straight out without twisting backplane pins.
3. Instew into original two consecutive slots, reconnect serial cables and confirm battery installation.
4. Power-on Test: Restore rack power; confirm CPU OK / RUN LED status, download project, verify all local and expansion I/O channels and serial communication functions.



FAQ

es support hot swapping? A: No. The CPU module itself cannot be hot swapped. Standard RX3i I/O modules support hot swap on hot-swap rated backplates.

Q: What is the diffeen and IC695CRU320? A:

• : Non-redundant CPU, no hot standby capability, incompatible with RMX redundancy modules.
• IC695CRU320: Redundant CPU, designed for primary/backup hot standby, requires IC695RMX128/RMX228. They are not interchangeable.

Q: Can this CPU connect Series 90-30 I/O modules? A: Yes, via IC695LRE001 serial expansion transceiver on remote racks. IC693 modules cannot be plugged directly into the RX3i main backplane.

es have built-in Ethernet port? A: No. Ethernet connectivity requires separate IC695ETM001 module.

Q: What does the -HS suffix mean? A: -HS represents a specific PCB hardware revision. Core CPU functionality is identical to other suffix variants. Mechanically interchangeable, always perform full system testing after replacement.

Q: Will the PLC program work directly on a replacement CPU320-HS? A: Control program is fully portable. After replacement, verify serial port parameters, I/O configuration and retentive data settings.

Q: Can multiple expansion racks be connected to this CPU? A: Yes, up to 7 serial expansion racks via IC695LRE001 transceiver modules, subject to overall I/O quantity and backplane bandwidth limits.
