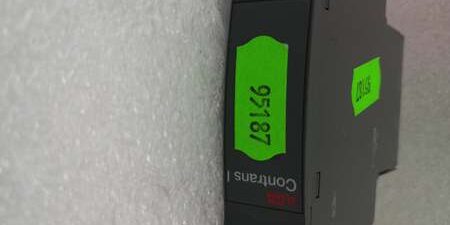

Product Core Brief
- Model: V17152-310
- Brand: ABB
- Series: Contrans I Isolation Signal Conditioner Line for NAMUR Proximity Sensors
- Core Function: Isolate single NAMUR sensor input and convert current states to transistor binary output with wiring fault supervision
- Product Type: DIN rail mounted single-channel intrinsic safety signal isolator
- Key Specs: 3-way 2300 V AC isolation | Built-in wire break/short detection | Ex ib hazardous area rating ⚠️ EOL — limited stock remaining
Product Introduction
ABB processes single NAMUR 2-wire proximity sensor signals, isolating hazardous field circuits from safe control rack logic without external barriers. It triggers a red LED alert for open or shorted sensor wiring. This unit differs from dual-channel V17111-110 by cutting channel count to one while adding intrinsic safety certification. It holds a fixed 1.2–2.1 mA switching span across -20 °C to +60 °C cabinet operating bands and limits field wiring to 100 m shielded cable runs.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Supported input signal | EN 50227 NAMUR 2-wire proximity sensors |
| Nominal input supply voltage | 7.8 V DC per sensor loop |
| Switching current threshold band | 1.2 mA (OFF) to 2.1 mA (ON) |
| Short-circuit maximum input current | 7.9 mA DC |
| Isolation rating (Input / Output / Power) | 2300 V AC reinforced 3-way galvanic separation |
| Auxiliary supply voltage | 19.2 V DC to 30 V DC SELV |
| Continuous power consumption | 0.62 W maximum draw |
| Maximum shielded field cable length | 100 m |
| Hazardous area certification | EEx ib IIC, verify with OEM datasheet for zone classification |
| Operating cabinet temperature | -20 °C to +60 °C |
| Storage temperature range | -40 °C to +85 °C |
| Mechanical mounting | EN 50022 standard 35 mm DIN rail |
| Net unit weight | 0.09 kg |
| Front status indicators | Green RUN, Yellow Switch State, Red Fault (Wire Break/Short) |
| Compliance standards | IEC 61000-6-2, EN 50227, CE certified |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross-reference serial numbers against ABB Contrans I spare asset database to flag counterfeit hardware. Inspect spring terminal blocks and front LED array with a 10x magnifier for pin corrosion or cracked housing; log serial numbers for hazardous plant traceability.
- Live Functional Test: Mount the unit on a grounded DIN rail test bench paired with a UNITROL 1010 controller and calibrated NAMUR current simulators. Inject full-range 1.2–2.1 mA signals, run continuous 26-hour load testing while logging cabinet temperature shifts and transistor output state consistency.
- Electrical Parameter Test: Use a 500 V Megger to measure insulation resistance between hazardous input terminals and chassis ground; pass threshold set at >10 MΩ. Verify PE ground loop resistance below 0.5 Ω with a Fluke 115 multimeter.
- Firmware Verification: This unit uses passive analog conditioning circuits with no programmable firmware. Photograph jumper polarity labels printed on the housing for field commissioning reference.
- Final QC & Packaging: Wipe plastic housing with anti-static microfiber cloth, cap all signal terminal blocks with plastic dust covers. Seal inside a shielding ESD bag, attach a QC Passed label stamped with full test completion date.
Replacement Pitfall Guide
❗ Firmware Mismatch: The unit has no onboard firmware, but host UNITROL 1010 controller logic must enable NAMUR input scaling. Older v4.0 controller builds lack NAMUR signal mapping, or all sensor states lock as fixed OFF permanently. ❗ DIP Switch / Jumper Misconfiguration: Factory default wire break monitoring jumper is disabled. Most hazardous area rack layouts require the jumper parked to enable fault detection; missed settings hide broken field wiring during runtime. ❗ Terminal / Cable Incompatibility: This unit uses 1.5 mm narrow spring terminals, unlike heavy-duty UUD148AE02 4 mm power blocks. Oversized wire strands create loose NAMUR loops and intermittent fault alarms; shield drain wires must land on dedicated protective ground terminals only. ❗ Power Supply Mismatch: Single NAMUR channel draws 0.62 W peak auxiliary power. Calculate rack power budget with 20 % overhead; undersized 24 V supplies trigger low-voltage lockout and blank sensor status readings. ❗ ESD Damage: Dry cabinet environments above 40 % relative static risk degrade internal signal conditioning resistors on the unit. Always use an anti-static mat and grounded wrist strap when handling exposed terminal pins in low-humidity cabinets. Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- V17111-110 → : Needs Adaptation — dual-channel design reduced to single channel, hazardous area certification added
- UNITROL 1010 → : Direct — transistor output signals match controller binary input logic without scaling edits
- UUD148AE02 → : Incompatible — medium voltage CT measuring hardware, no NAMUR signal circuit support
