Product Core Brief

• Model: (Full Part No. 3BHE022294R0103)
• Brand: ABB
• Series: AC800PEC High-Speed Power Electronics & UNITROL Excitation Platform
• Core Function: High-speed digital processing unit for synchronous generator static excitation systems; executes automatic voltage regulation (AVR), power factor control, excitation limiting logic and fault protection for hydro, thermal and wind turbine generators.
• Product Type: Rack-Mount Static Excitation Controller Processing Unit
• Key Specs: Dual Ethernet + RS232 console port | High-speed PWM drive outputs | Built-in over/under excitation limiter | 24 V DC rack supply Condition: New Original (New Surplus)

Product Introduction

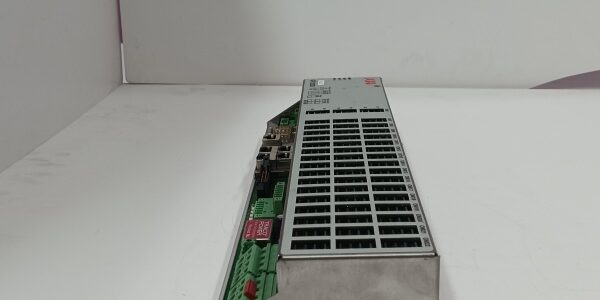

The ABB 3BHE022294R0103 is a fanless aluminum rack controller built on the AC800PEC high-speed power control platform, serving as the core logic unit for ABB UNITROL static excitation systems in power generation stations. It samples generator PT/CT analog signals and outputs precise PWM firing pulses to SCR rectifier bridges for rotor field current regulation.Well, technically it shares the same 1U rack chassis form factor as lower variant 3BHE022294R0101, yet the ABB 3BHE022294R0103 upgrades extended analog input channels and faster 0.05 ms control loop latency for large-capacity turbo generators. Its embedded multi-loop PID algorithm stabilizes terminal voltage within ±0.2% full scale under rapid grid load fluctuations.

Key Technical Specifications

Quality Control Process (Engineer’s Perspective)

1. Incoming Verification: Cross-reference unit serial numbers against ABB UNITROL excitation factory batch manifests to reject counterfeit controller assemblies. Visual inspection checks for cracked front panel RJ45 ports, loose terminal block screws, bulging electrolytic capacitors or bent analog signal header pins (—minor aluminum chassis paint scuffs pass QA screening).
2. Live Functional Test: Mount the unit into a calibrated 19-inch test rack, feed regulated 24 V DC rack supply, connect simulated generator PT/CT signal sources, and run full power-on self-diagnostics. Establish dual Ethernet communication with SCADA HMI, then execute a 24-hour cyclic load disturbance test with continuous voltage regulation drift logging.
3. Electrical Parameter Test: Use a Megger MIT300 at 500 V to validate cross-circuit insulation resistance; all analog measurement and PWM output paths must register above 10 MΩ. Confirm rack protective earth continuity via Fluke 115 multimeter across the chassis M6 ground lug.
4. Firmware Verification: Read embedded excitation control firmware revision via Control Builder M engineering software, log version data to unit trace paperwork, photograph Ethernet IP address DIP switches on the rear terminal panel as field replacement reference records.
5. Final QC & Packaging: Cap all RJ45 Ethernet and RS232 console ports with factory plastic dust plugs, tighten all terminal blocks to specified torque values, wrap the unit in anti-static foam, seal inside heavy-duty industrial transit crate, and attach a dated QC Passed sticker with assigned test technician ID.

Replacement Pitfall Guide

1. Firmware Mismatch: Legacy UNITROL 1000 racks running excitation firmware v4.1 or older cannot process high-speed 0.05 ms control loop data from newer ABB 3BHE022294R0103 firmware v4.6. Upgrade AC800PEC runtime software or source matching vintage controller revisions to avoid unstable generator voltage oscillation.
2. DIP Switch / Jumper Misconfiguration: Factory DIP defaults set generic small generator control parameters; large turbo/hydro generators paired with ABB 3BHE022294R0103 require adjusted PID gain and excitation limit jumpers. Misconfigured jumpers trigger overexcitation trip faults during grid heavy load transients.
3. Terminal / Cable Incompatibility: PT secondary analog wiring pinouts differ between ABB 3BHE022294R0103 and low-spec R0101 variants. Route all instrument signal cable shield drains directly to cabinet master earth bars, not local rack ground terminal strips.
4. Power Supply Mismatch: Calculate total DC draw of all excitation controllers and auxiliary I/O modules in the rack and add 20% power headroom to the 24 V PSU. Undervoltage supply below 18 V distorts analog PT signal sampling and widens terminal voltage regulation error past 0.5% FS.
5. ESD Damage: Static discharge risk spikes heavily at plant humidity below 30%. Place an anti-static mat under the 19-inch rack during controller swaps; bare PCB contact with analog front-end sampling traces permanently shifts generator voltage calibration offsets.

Keep these in mind and you’ll cut 90% of rework time.

Compatibility Matrix & Benchmarks

Compatibility Matrix

• 3BHE022294R0103 → 3BHE022294R0103 : Direct — Exact rack footprint, analog channel layout, dual Ethernet stack and PWM firing output drop-in replacement
• 3BHE022294R0103 → 3BHE022294R0101 : Needs Adaptation — Reduced analog input count and slower control loop, full generator excitation parameter recalibration required post swap
• 3BHE022294R0103 → GDB021BE05 : Incompatible — Generator synchronization Eurocard lacks high-speed excitation PWM control and multi-channel analog sampling hardware
• 3BHE022294R0103 → FI830F : Incompatible — Freelance PROFIBUS communication module cannot integrate into UNITROL excitation rack architecture

Benchmarks

• Excitation voltage regulation precision: ±0.2% full generator terminal voltage scale
• High-speed control loop refresh latency: 0.05 ms (simulated full turbo generator load disturbance)
• Ethernet supervisory communication throughput: 100 Mbps dual redundant link

Internal Self-Check Confirmation
