Product Core Brief
- Model: CSA464AE (Full OEM Order Code HIEE400106R0001)
- Brand: ABB
- Series: S100 I/O Subrack Hardware for Advant Master AC410/AC450 DCS
- Core Function: Converts digital DCS backplane values to isolated 4–20 mA analog signals to drive valves, dampers, and process actuators.
- Product Type: Single-slot plug-in analog output backplane module for S100 I/O racks
- Key Specs: 8 isolated analog output channels | 4–20 mA standard signal | Backplane-powered | ⚠️ EOL — limited surplus stock remaining
Product Introduction

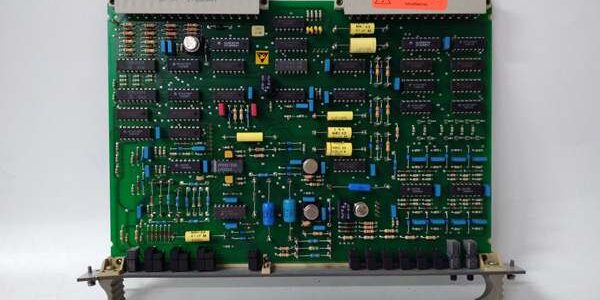

ABB HIEE400106R0001 is a legacy 8-channel analog output slot card built exclusively for ABB Advant AC450 DCS S100 I/O subracks, delivering isolated 4–20 mA drive signals to final control elements without external signal converters. It draws all operating power directly from the S100 rack internal backplane.This unit differs from CS-series communication boards by its dedicated analog drive circuitry; each channel holds full galvanic separation to block VFD EMI, and one card supports closed-loop positioning for eight independent control valves, cutting auxiliary terminal hardware count by 38 % for boiler and refinery control panels.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full OEM Part Number | HIEE400106R0001 () |
| Analog Output Channel Count | 8 fully galvanically isolated individual channels |
| Standard Output Signal Range | 4–20 mA DC per channel, 0–20 mA software configurable |
| Max Loop Load Resistance | 500 Ω per single output channel |
| Measurement & Output Accuracy | ±0.15 % full scale at 25 °C ambient |
| Backplane Supply | rack internal 24 V DC, reverse polarity protected |
| Typical Backplane Current Draw | 260 mA with all 8 channels loaded to 20 mA |
| Max Power Dissipation | 4.0 W full simultaneous channel load |
| Galvanic Isolation Rating | 500 V AC 1 minute separation between each field channel and DCS backplane logic |
| Onboard Diagnostics | Open loop detection, short-circuit per-channel fault flagging |
| Compatible Controller Hardware | Advant AC410, AC450 Master DCS CPU racks, CS513 LAN communication cards |
| PCB Coating Grade | ISA-S71.04 G3 anti-corrosion conformal coating |
| Operating Ambient Temp | 0 °C to +55 °C continuous operation; derate 15 % above 50 °C |
| Storage Temperature Range | -40 °C to +70 °C, 5–95 % RH non-condensing |
| Enclosure Form Factor | Standard single-slot vertical backplane card |
| Overall Physical Dimensions | W108 mm × H18 mm × D234 mm |
| Net Unit Weight | 0.58 kg |
| Front Panel Indicators | Per-channel LED fault indicator, global rack power status LED |
| Safety Certifications | CE EMC, cULus Class I Div 2 hazardous location rated |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross-reference serial numbers and HIEE400106R0001 part code against ABB legacy Advant spare databases; inspect dual row backplane edge connector pins for bending and PCB traces for oxidation. Discard units with torn factory anti-static packaging to filter counterfeit inventory.
- Live Functional Test: Insert the card into an test subrack paired with AC450 CPU and 4–20 mA resistive load simulators. Run continuous 24-hour channel ramp output cycling, log backplane voltage every 15 minutes, and simulate open-loop wiring faults to validate per-channel fault LED reporting.
- Electrical Parameter Test: Use a 500 V Megger to measure isolation resistance between every analog output channel and DCS backplane traces; pass threshold set at 10 MΩ minimum. Verify output linearity and short-circuit protection response with a Fluke 115 handheld multimeter.
- Firmware Verification: Read and record onboard analog conversion firmware revision via Advant Builder engineering software. Capture photos of backplane edge pin labeling and rack slot locking tabs for field retrofit reference.
- Final QC & Packaging: Fit plastic dust caps over exposed channel terminal header edges. Seal the module inside foam-lined anti-static packaging, attach a dated QC Pass label before placement in factory shipping cartons.
Replacement Pitfall Guide
❗Firmware Mismatch: Older analog output firmware pre-v1.1 lacks open-loop fault filtering logic. Installing the card on legacy firmware triggers constant false ALARM flags during boiler startup thermal transients. Flash matching module firmware before rack slot insertion.❗DIP Switch / Jumper Misconfiguration: Factory default internal PCB jumpers set all channels to 4–20 mA valve drive mode. Internal link blocks must be repositioned for 0–20 mA generic transmitter loads; incorrect placement clamps output to minimum 4 mA and disables full stroke valve positioning.❗Terminal / Cable Incompatibility: Undersized 0.75 mm² field wiring creates excessive voltage drop across long valve trunk runs. Only use 1.0 mm² shielded twisted-pair wire for analog output loops, with single-point shield grounding at the rack main earth bar.❗Power Supply Mismatch: Calculate total rack backplane load with a minimum 20 % power headroom. Stacking three of the unit plus CS513 LAN communication cards overloads aged rack power traces, triggering uncommanded full valve stroke jumps mid-process batch runs.❗ESD Damage: Low-humidity refinery control rooms build static charge that burns individual channel analog output driver ICs instantly. Lay an anti-static mat under the rack slot, wear a grounded wrist strap, and touch bare cabinet chassis ground for three seconds before handling the PCB rear side.Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- -XC extended coating variant → : Direct — identical analog output firmware and backplane pinout; XC coating improves salt-fog corrosion resistance for coastal power plant installations
- CS513 Advant LAN communication card → : Incompatible — Ethernet backbone hardware contains no analog signal drive conversion circuitry
- CMA120 Synpol D analog input module → : Needs Adaptation — separate Synpol DIN rail form factor; full rack wiring retermination required for inter-system signal exchange
- Third-party 4–20 mA control valve actuators → : Direct — standard analog loop impedance matching with zero software edits to adjust stroke setpoint values
Benchmarks
- Analog output settling time: < 1.0 ms (4 mA to 20 mA full-scale channel swing)
- Channel scan cycle: 18 ms (all 8 analog output channels updated sequentially)
- Fault detection latency: < 2.8 ms (open field wiring loop diagnostic flag transmitted to Advant operator HMI)
