Product Core Brief
- Model: UFC921A101
- Full OEM Part Code: 3BHE024855R0101
- Brand: ABB
- Series: UFC auxiliary mixed signal interface board family for AC 800PEC power electronics / UNITROL generator excitation systems
- Core Function: Process auxiliary analog measurement signals, binary breaker/limit switch status, and local interlock logic for UNITROL 5000/6000 synchronous generator excitation cabinets; transmit auxiliary monitoring data to main UFC760BE42 power CPU via subrack backplane and RS485 Modbus RTU. Acts as secondary signal conditioning board alongside UAC383 (HIEE300890R0001) main measurement PCB for redundant excitation sensing.
- Product Type: Single-width hot-swappable power electronics dedicated mixed I/O auxiliary PCB (incompatible with AC800M System800xA S800 DCS racks)
- Key Specs: Multi-channel auxiliary AI/DI signal conditioning | Isolated RS485 Modbus RTU slave | G3 anti-corrosion conformal coating | 24 VDC subrack powered | Hot-swap certified | 1000 V analog field isolation ⚠️ EOL legacy excitation spare, limited original surplus stock
Product Introduction

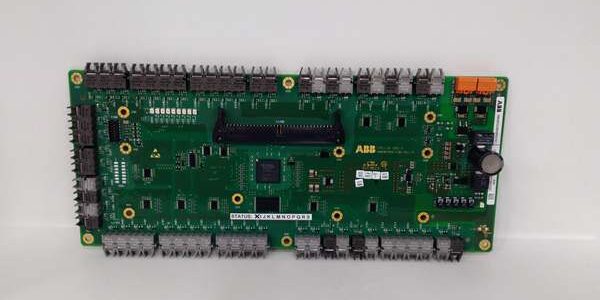

The ABB 3BHE024855R0101 is a secondary auxiliary signal interface board exclusively deployed inside ABB UNITROL series generator excitation subracks, paired with the main UFC760BE42 AC800PEC power control CPU and UAC383 primary PT/CT measurement board.It handles secondary plant auxiliary signals: lube oil temperature, cooling water flow, cubicle door interlock, fan running status, backup power monitoring, and excitation cubicle ambient temperature. It offloads non-critical auxiliary measurement tasks from the main measurement board to reduce primary control loop bus load.Unlike general System800xA I/O modules, this PCB is optimized for high-vibration generator hall environments with full G3 conformal coating, high-voltage analog isolation, and excitation-specific fault flag logic (cooling loss, cabinet door open, auxiliary power failure). OEM field logging records a 56,000 hour MTBF under continuous 50 °C excitation cabinet runtime.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Compatible Hardware | UNITROL5000 / UNITROL6000 excitation dedicated subrack backplane; matched with UFC760BE42 CPU, UAC383 measurement board; incompatible with AC800M UFC760BE43/1142 & S800 I/O racks |
| Full OEM Part Number | 3BHE024855R0101 (silkscreen on PCB) |
| Operating Supply | 24 VDC ±10% subrack backplane feed; typical 260 mA steady-state draw |
| Signal Channels | Auxiliary analog inputs (0–10 V / 4–20 mA) + sinking 24 V binary discrete inputs for auxiliary interlock status |
| Communication Interface | Isolated RS485 Modbus RTU multi-drop slave for upper plant DCS auxiliary data upload |
| Galvanic Isolation Rating | 1000 V AC isolation between all auxiliary analog field circuits and internal logic ground |
| PCB Environmental Protection | Full G3 conformal coating, resistant to coastal, sulfur-rich power plant cabinet atmospheres |
| Hot Swap Compliance | UNITROL excitation system certified hot-swap; main excitation voltage regulation loop remains stable during board replacement |
| Onboard Diagnostics | Auxiliary analog open/short circuit detection; discrete input loss alarm; backplane undervoltage monitoring; Modbus communication fault LED indicators |
| Mechanical Form Factor | Single-width dedicated excitation subrack PCB, gold multi-pin backplane connector + field terminal block layout |
| Mechanical Dimensions | 165 mm L × 102 mm W × 22 mm D |
| Net Unit Weight | 0.35 kg |
| Continuous Operating Ambient Temp | -10 °C to +55 °C full rated measurement accuracy; linear performance derate above 50 °C |
| Storage Temperature Range | -40 °C to +85 °C, 5–95 % RH non-condensing |
| Integrated Protection Circuits | Auxiliary analog line surge clamping, backplane reverse polarity lockout, discrete input transient suppression, Modbus port ESD protection |
| Certifications | UL, CE, EN61000 Class A industrial EMC filtering for high-EMI generator excitation rooms |
Quality Control Process
- Incoming Verification: Cross-reference serial numbers against ABB UNITROL OEM trace databases; inspect conformal coating for chipping, gold subrack edge connector for oxidation, analog signal solder joints for microcracks, terminal block screw threads for corrosion. Photograph full auxiliary channel pin mapping for excitation cabinet wiring cross-check reference.
- Live Functional Test: Insert PCB into populated UNITROL test subrack paired with UFC760BE42 main CPU, programmable 4–20 mA temperature simulators and dry contact interlock banks; run continuous 24-hour cyclic auxiliary signal sampling test with simulated cooling system fault events. Log 24 V subrack supply stability with a Fluke 115 digital multimeter for full test duration.
- Electrical Parameter Test: Perform 1000 V Megger insulation resistance test between all auxiliary analog field circuits and PCB chassis ground; pass threshold >10 MΩ. Verify Modbus RTU auxiliary data polling maintains stable communication at maximum baud rate.
- Firmware & Modbus Verification: Record factory auxiliary board firmware revision via UNITROL Service Tool software; document default Modbus baud rate and auxiliary signal scaling register settings for generator site commissioning reference.
- Final QC & Packaging: Wipe gold backplane edge connectors to remove oxidation and dust; seal PCB inside anti-static foam sleeve, attach dated QC Pass label listing channel continuity, insulation, Modbus communication and self-test fault detection metrics before shock-resistant carton shipping packaging.
Replacement Pitfall Guide
❗ ❗ Partial Subrack Slot Insertion Risk: Incomplete PCB seating creates high-resistance backplane contact points that distort auxiliary temperature/cooling flow analog readings and generate false cubicle door open fault alarms during generator startup ramp transients. Push PCB fully into dedicated excitation slot and lock front retention latches flush against subrack faceplate.❗ Auxiliary Field Cable Shield Ground Misconfiguration Risk: Unshielded twisted-pair auxiliary sensor wiring routed parallel to high-current generator excitation power cabling injects severe 50/60 Hz EMI noise, skewing cooling system measurement values. Use factory shielded analog cable assemblies; terminate shield ground only at main excitation cabinet terminal block single-point grounding (avoid dual-end grounding to eliminate ground loops).❗ ❗ Uncontrolled ESD Damage Risk: Dry generator excitation room air generates high static charge rapidly. Touch grounded anti-static mat for three full seconds before handling gold backplane connectors and auxiliary analog terminal blocks; ungrounded contact will damage low-tolerance auxiliary signal conditioning ASICs.Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- S800 System800xA standard analog/discrete I/O module → : Incompatible — different mechanical form factor, backplane bus protocol, missing excitation dedicated auxiliary fault detection logic
- UFC760BE42 (3BHE004573R0042) AC800PEC power excitation CPU → : Direct — dedicated subrack fiber/backplane bus natively transmits all auxiliary analog/discrete signal data to main excitation control logic
- UAC383 AE01 (HIEE300890R0001) main PT/CT measurement board → : Direct — dual complementary measurement boards split primary generator sensing and secondary cabinet auxiliary monitoring tasks
- UNITROL5000 / UNITROL6000 dedicated excitation subrack backplane → : Direct — single-width mechanical form factor and 24 V power distribution matching
- VM310 24 V cabinet auxiliary power supply → : Direct — regulated 24 V output matches board ±10% operating voltage window without extra voltage conditioning
- ABB CI854 PROFIBUS DP DCS communication module → : Needs Adaptation — Modbus RTU to PROFIBUS gateway required to upload cabinet auxiliary monitoring data to System800xA plant DCS
- CML40.2-SP-330-NA-NNNN-NW Rexroth SERCOS motion PLC → : Needs Adaptation — wire board auxiliary cooling/fault dry contact outputs to PLC digital inputs; map cabinet temperature/flow registers via Modbus RTU polling
