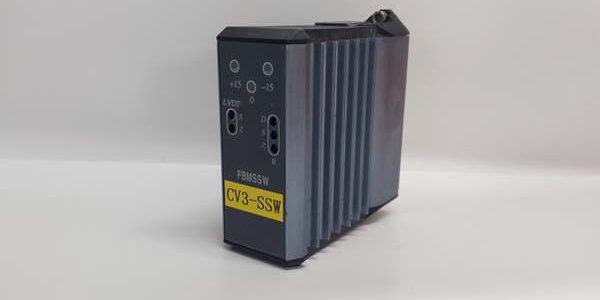

Product Core Brief
- Model: FBMSSW
- Brand: FOXBORO (Schneider Electric EcoStruxure Foxboro)
- Series: I/A Series Compact 200 specialized servo & LVDT control FBM family
- Core Function: Generate proportional servo drive current and demodulate LVDT position feedback for closed-loop valve/linear actuator regulation
- Product Type: Rack-mount hot-swappable dedicated LVDT servo fieldbus module
- Key Specs: 1 kHz integrated LVDT oscillator | ±21 mA servo coil drive | ±15 V external auxiliary power | ⚠️ EOL — limited stock remaining, Condition: New Surplus Original
Product Introduction
FOXBORO FBMSSW is a purpose-built closed-loop servo module engineered exclusively for I/A Series and Foxboro Evo DCS to regulate high-precision hydraulic and pneumatic control valves fitted with LVDT stroke sensors. It eliminates external signal conditioners by embedding native AC LVDT demodulation circuitry on the PCB.This unit differs from standard analog input/output FBMs by handling bidirectional servo coil drive, with OEM-measured MTBF of 295,000 hours at 40 °C cabinet ambient. Onboard analog trim pots adjust loop gain and stroke offset without workstation software edits for rapid field calibration.
Key Technical Specifications
| Parameter | Value |
|---|---|
| LVDT Excitation Circuit | 1000 Hz fixed oscillator, max 18 Vpp AC drive to LVDT sensor windings |
| Servo Output Drive Range | ±21 mA proportional current for two-pole servo valve coils |
| Position Feedback Output | Isolated 0–20 mA DC analog stroke signal, 50 Ω output impedance |
| Auxiliary External Power Requirement | ±15 V DC regulated supply, 250 mA draw per voltage rail |
| Onboard Calibration Adjustments | Gain trim (1–20x), bias offset (-8 V DC to +8 V DC) analog pots |
| Galvanic Isolation Rating | 1500 VAC withstand between LVDT/servo field circuits and DCS backplane |
| Backplane Fieldbus Consumption | < 1 W total power drawn from 24 V DC ±5 / -10 % module bus |
| Diagnostic Hardware | Front-panel ±15 V rail power LED, LVDT signal detect indicator, DIP switch config bank |
| Operating Temperature Range | -20 °C to +70 °C operational; -40 °C to +85 °C storage |
| Environmental Coating | ISA S71.04 G3 full conformal PCB coating for corrosive refinery/chemical atmospheres |
| Hazardous Certifications | FM Class I Div.2, ATEX Ex ec IIC Gc (cabinet-only mounting enclosure) |
| Safety Integrity Classification | SIL 2 capable for critical boiler and reactor valve interlock loops |
| Mechanical Mounting | Standard 35 mm DIN rail Compact 200 rack slot form factor |
| Backplane Communication | Redundant dual A/B 2 Mbps proprietary I/A Series HDLC Fieldbus |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross-reference serial numbers printed on the FBMSSW housing to OEM production batch logs; inspect aluminum heat sink fins, ±15 V terminal lugs, and PCB conformal coating for scratches or oxidation. Reject units with cracked DIP switch trim housing.
- Live Functional Test: Seat the unit on a certified Compact 200 backplane, connect calibrated LVDT simulator and resistive servo coil load bank, run a 26-hour continuous full-stroke cycling load cycle. Log position output linearity and confirm unbroken 2 Mbps HDLC Fieldbus handshake to an FCP280 controller.
- Electrical Parameter Test: Use a 500 V Megger to test LVDT/servo field circuits-to-backplane insulation resistance (minimum pass threshold 10 MΩ); verify chassis ground continuity to DIN rail mounting lugs.
- Firmware Verification: Extract embedded servo control firmware revision via I/A engineering workstation diagnostic menus; photograph factory default gain/bias trim pot positions for post-delivery reference.
- Final QC & Packaging: Purge PCB and heat sink internal surfaces with dry nitrogen to remove industrial particulate buildup; seal the module in anti-static vacuum bag, apply QC Passed sticker stamped with full test completion date.
Replacement Pitfall Guide
❗ Firmware Mismatch: Older FCP270 controller firmware revisions lack native LVDT stroke scaling function blocks for the module. Confirm controller firmware rev before ordering spare hardware — site DCS upgrade schedules often lag spare component stock.❗ DIP Switch / Jumper Misconfiguration: Factory default DIP switches set loop gain = 1 for small-stroke control valves. The rear ±15 V auxiliary power header includes reverse polarity protection, but miswiring can permanently damage the servo drive stage without blowing internal fuses.❗ Terminal / Cable Incompatibility: Unshielded twisted pair LVDT wiring introduces severe 50/60 Hz mains noise near MCC motor control cabinets. Deploy shielded coaxial LVDT cable with single-point chassis ground at the module end only.❗ Power Supply Mismatch: Calculate total rack DC draw with 20% headroom. Four FBMSSW modules installed on one Compact 200 backplane pull 4 W combined from the module bus; undersized ±15 V external auxiliary power supplies trigger sustained servo valve hunting under full stroke demand.❗ ESD Damage: Always deploy an anti-static mat in low-humidity winter cabinet environments. Static discharge to exposed LVDT input pins destroys internal demodulator ASICs with no visible exterior damage to the aluminum heat sink housing.Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- FCP280 Controller → FBMSSW : Direct compatible — no backplane wiring edits required
- FCP270 Controller → FBMSSW : Direct compatible — requires minimum controller firmware v11.4 with LVDT servo function library
- FBM201 8-Channel Analog Input → FBMSSW : Incompatible — general current measurement vs dedicated closed-loop LVDT servo hardware function split
- FBM230 P0926GU Serial Modbus Gateway → FBMSSW : Incompatible — serial field communication vs analog actuator servo control split
- DeltaV M-Series DIN Rail Carrier → FBMSSW : Incompatible — proprietary 2 Mbps I/A HDLC Fieldbus backplane pinout mismatch
- Experion PKS I/O Chassis → FBMSSW : Incompatible — no native Foxboro LVDT servo control logic block support
Benchmarks
- Closed-loop servo stroke response time: < 12 ms (0–100% full valve travel setpoint change)
- Position feedback linearity error: ±0.08% full stroke (calibrated simulated LVDT sensor load)
- 50/60 Hz mains noise rejection ratio: > 90 dB for unfiltered plant wiring environments
