Product Core Brief

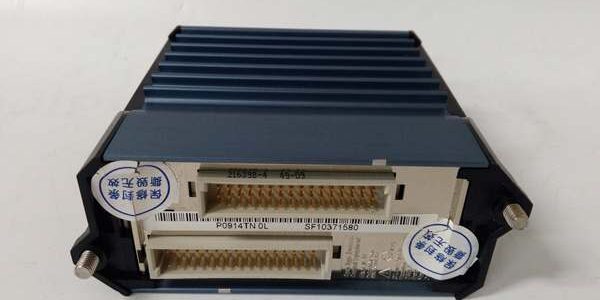

- Model: P0914TN (FBM211 main part number)
- Brand: FOXBORO (Schneider Electric EcoStruxure Foxboro)
- Series: I/A Series Compact 200 high-density analog FBM family
- Core Function: Convert differential 0–20 mA two-wire transmitter signals to digital data for FCP control processors
- Product Type: Rack-mount hot-swappable 16-channel differential analog input fieldbus module
- Key Specs: 16 isolated differential channels | 0–20 mA input range | transparent HART FSK support | ⚠️ EOL — limited stock remaining, Condition: New Surplus Original
Product Introduction
FOXBORO is the part number designation for the FBM211 high-density analog input module built exclusively for I/A Series and Foxboro Evo DCS plant control racks. It accepts differential current signals from pressure, flow, and level smart transmitters without external signal conditioners.This unit differentiates from 8-channel FBM201 by doubling channel density to cut rack slot usage in half, with OEM-measured MTBF of 318,000 hours at 40 °C cabinet ambient. Independent channel isolation eliminates ground loop noise on long multi-conductor field cables near high-current MCC equipment.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Input Channel Configuration | 16 fully galvanically isolated differential analog input circuits |
| Nominal Field Signal Range | 0–20 mA DC, fully compliant with 4–20 mA two-wire transmitters |
| Per-Channel Isolation Withstand | 600 VAC channel-to-backplane 1-minute dielectric rating |
| HART Protocol Support | Unfiltered FSK pass-through for HART 5 and HART 7 smart devices |
| Onboard Signal Processing | Configurable conversion speed and rate-of-change alarm limits |
| Common Mode Rejection Ratio | >100 dB at 50 / 60 Hz industrial mains interference |
| Module Operating Supply | 24 V DC ±5 %, maximum total power draw 8 W |
| Backplane Communication | Redundant 2 Mbps proprietary I/A Series module Fieldbus |
| Operating Temperature Range | -20 °C to +70 °C operational; -40 °C to +85 °C storage |
| Environmental Coating | ISA S71.04 G3 full PCB conformal coating for corrosive plant atmospheres |
| Hazardous Certifications | FM Class I Div.2, ATEX Ex ec IIC Gc (cabinet-only mounting) |
| Compatible Termination Hardware | Dedicated 16-point screw-clamp TA wiring assemblies for Compact 200 racks |
| Diagnostic Hardware | Front-panel operational status LED for bus health and module faults |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross-reference serial numbers printed on label to OEM production batch logs; inspect aluminum heat sink fins, gold backplane edge connectors, and PCB coating for scratches or oxidation. Reject units with cracked channel isolation barriers.
- Live Functional Test: Seat the unit on a certified Compact 200 backplane, connect a precision 0–20 mA signal generator to matched termination hardware, run a 26-hour continuous full-channel load cycle. Log channel temperature and confirm redundant 2 Mbps Fieldbus handshake to an FCP280 controller.
- Electrical Parameter Test: Use a 500 V Megger to test channel-to-backplane insulation resistance (minimum pass threshold 10 MΩ); verify chassis ground continuity to DIN rail mounting lugs.
- Firmware Verification: Extract embedded FBM firmware revision via I/A engineering workstation diagnostic menus; photograph factory default bus baud rate settings for post-delivery reference.
- Final QC & Packaging: Purge PCB and heat sink internal surfaces with dry nitrogen to remove industrial dust buildup; seal the module in anti-static vacuum bag, apply QC Passed sticker stamped with full test completion date.
Replacement Pitfall Guide
❗ Firmware Mismatch: Older FCP270 controller firmware revisions lack full HART polling support for the module. Confirm controller firmware rev before ordering spare hardware — site DCS upgrade schedules often lag spare component stock.❗ DIP Switch / Jumper Misconfiguration: Factory default backplane jumpers disable redundant Fieldbus A/B paths. The terminal assembly header controls loop power polarity; reversed field wiring burns front-end ADC chips instantly.❗ Terminal / Cable Incompatibility: Thin 18 AWG twisted pair wiring creates excessive voltage drop for long transmitter field runs. Use minimum 16 AWG shielded twisted pair for all cable lengths over 20 m.❗ Power Supply Mismatch: Calculate total rack DC draw with 20% headroom. Four of these modules on one Compact 200 backplane pull 32 W combined; undersized rack power supplies trigger intermittent signal dropouts under full transmitter load.❗ ESD Damage: Always deploy an anti-static mat in low-humidity winter cabinet environments. Static discharge to exposed gold backplane connectors destroys channel isolation circuits with no visible exterior damage to the aluminum housing.Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- FCP280 Controller → (FBM211) : Direct drop-in replacement — no backplane or TA wiring edits required
- FCP270 Controller → (FBM211) : Direct drop-in replacement — requires minimum controller firmware v11.0
- FBM201 8-Channel AI Card → (FBM211) : Needs Adaptation — workstation channel scaling and field marshalling must be reconfigured
- FBM230 P0926GU Serial Modbus Gateway → () : Incompatible — serial communication hardware vs analog signal acquisition function split
- DeltaV M-Series Carrier → () : Incompatible — proprietary 2 Mbps I/A Fieldbus backplane pinout mismatch
- Experion PKS I/O Chassis → () : Incompatible — no native Compact 200 backplane bus support
Benchmarks
- Analog measurement scan cycle: 220 ms (simulated full load, 16 active HART 4–20 mA transmitters)
- Comms throughput: 2 Mbps (redundant proprietary I/A Fieldbus backplane protocol)
- HART diagnostic poll interval: 5 seconds per channel (software-configurable upper polling limit)
