Product Core Brief

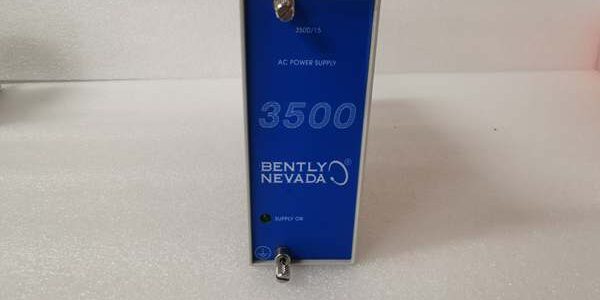

• Model: 106M1079-01 (3500/15 universal AC input power supply assembly)
• Brand: Bently Nevada (Baker Hughes)
• Series: 3500 Machinery Protection TSI Rack System
• Core Function: Delivers regulated multi-rail DC power to the rack backplane for all vibration, temperature, speed, and communication monitor hardware
• Product Type: Half-height rack-mount AC input power supply module, dual redundant capable
• Key Specs: 85–264 VAC universal input | 150 W total output power | Hot-swap compatible
• Condition: New Original (Factory Sealed), refurbished fully tested inventory available with 3-day lead time

Key Technical Specifications

• AC Input Range: 85 to 264 VAC RMS, 47–63 Hz single-phase
• DC Output Rails: +5 VDC, +12 VDC, −12 VDC regulated backplane power
• Maximum Continuous Output Power: 150 W, 90% minimum efficiency under full load
• Physical Form Factor: Half-height slot, installs in dedicated left rack power bays
• Unit Dimensions: 120.7 mm H × 50.8 mm W × 251.5 mm D
• Net Weight: 1.39 kg (3.06 lb)
• Operating Ambient Temperature: −30 °C to +65 °C; storage −40 °C to +85 °C
• Humidity Rating: 0–95% RH, non-condensing cabinet environment
• Built-In Protection Circuits: Overvoltage, overcurrent, short-circuit, overtemperature auto-shutdown
• Status Indicator: Front-panel green OK LED for normal operational state
• Compliance Standards: API 670, CE EMC, CSA NRTL/C, optional ATEX Zone 2 hazardous certification
• Redundancy Function: Two identical units may be installed in parallel to eliminate single-point power failure

Product Introduction

Most critical turbine and compressor protection racks require redundant power feeds to meet API 670 safety rules, and this unit is purpose-built to satisfy that requirement for full-size 3500 chassis. It converts wide-range global AC mains into tightly controlled multi-rail DC power for every inserted monitor card without voltage sag under full 14-slot rack load.Its universal 85–264 VAC input removes the need to stock region-specific power variants, cutting spare parts inventory overhead by 50% for multi-site plant fleets. This component cannot be used standalone; it requires a compatible empty rack backplane chassis to distribute power to measurement modules. Not recommended for mini 7-slot 3500 rack layouts that use low-wattage DC-only power hardware.

Key Selling Points & Differentiators

1. Global wide AC input eliminates site-specific voltage conversion hardware, reducing commissioning labor for cross-border industrial facilities.
2. 150 W full-load capacity supports a fully populated 14-slot chassis with mixed vibration, temperature, relay, and communication I/O without derating.
3. Parallel redundant operation maintains unbroken backplane power if one unit faults, complying with mandatory single-failure elimination standards for steam and gas turbine safety systems.
4. Hot-swap design allows replacement while the rest of the rack’s protection logic stays energized, avoiding full machine shutdown during power supply maintenance windows.
5. 12-month functional warranty covers power regulation, protection circuits, and backplane connector integrity for refurbished stock; factory-new units carry a full 36-month OEM manufacturer warranty.
6. Integrated multi-layer fault protection automatically cuts output current during shorted wiring events, preventing permanent damage to expensive measurement monitor cards.

Quality Transparency SOP

1. Incoming Verification: Cross-reference serial numbers against OEM production archives to reject counterfeit assemblies. Complete visual audit of PCB solder joints, front LED lens, rack edge gold pins, and terminal block hardware; timestamp photos of cracked casings or burned connector traces.
2. Live Bench Test: Mount the unit into a calibrated full-size test rack with a full simulated 14-slot load bank for a continuous 24-hour thermal cycling test. Record DC rail voltage stability every two hours across minimum and maximum AC input limits.
3. Electrical Tests: 500 V megohmmeter insulation test confirms resistance >10 MΩ between AC input terminals and rack protective ground; validate all overcurrent and overvoltage shutdown trigger thresholds.
4. Firmware & Layout Backup: This power supply contains no user-configurable firmware, but technicians document paired redundant unit serial numbers and planned rack slot assignments for site maintenance records.
5. Final QC & Packaging: Run a 10-minute full-load soak test as final validation. Attach serialized QC Passed tag with timestamped voltage readout data. Wrap the unit in anti-static foam and ship inside rigid shock-resistant cardboard crates. Test bench photos and raw voltage logs are available to buyers on formal request.

Technical Risk Avoidance Section

❗ Single Supply Operation Risk: Running the chassis with only one installed unit creates a single point of power failure, violating API 670 rotating machinery protection requirements. Prevention: Populate both dedicated left half-slots with matching identical units for all critical turbine/compressor racks. Field anecdote: A combined-cycle gas turbine experienced an unplanned trip after one power unit failed, with no backup supply to sustain vibration protection interlocks.❗ AC Input Wiring Underrating Risk: 18 AWG or smaller wire gauge leads cause voltage drop under full 150 W load, triggering intermittent OK LED fault states. Prevention: Specify minimum 16 AWG copper conductors for AC mains termination at the rear terminal block.❗ Thermal Clearance Violation Risk: Stacking cables directly against the unit’s ventilation slots restricts passive heat dissipation, raising internal PCB temperatures above rated limits and shortening component service life. Prevention: Maintain minimum 20 mm unobstructed air gap along the top and bottom edges of each power supply module.❗ Hot-Swap Misalignment Risk: Twisting the unit during extraction bends fragile backplane gold contact pins, creating permanent intermittent power rail voltage fluctuations. Prevention: Use both front extraction levers to evenly disengage the edge connector before sliding the unit free of the rack slot.❗ ESD Damage Risk: Ungrounded field tools touching exposed backplane pins discharge static and destroy internal PWM control ICs; OEM PCB repair labor costs exceed $1,400 for failed power assemblies. Prevention: Mandate grounded ESD wrist straps for all rack module insertion and removal tasks.

Quick summary: Deploy dual redundant units, size AC wiring correctly, preserve ventilation clearance, and use balanced extraction lever motion during hot-swap service to eliminate nearly all common rack power supply field failures.

FAQ

Q: Can I install this unit inside the compact 7-slot mini 3500 rack?A: No. Mini chassis half-height power bays accept only low-wattage DC input power variants with different pinout and form factor geometry. This AC unit cannot physically seat into mini rack guide rails.Q: Does hot-swapping this unit interrupt active machinery protection relay logic on the rack’s measurement cards?A: With a second redundant unit installed in the adjacent power slot, backplane power remains fully stable during hot-swap removal and replacement. If operating with a single unit, all monitor card power drops momentarily, triggering full rack fault annunciations.Q: What input voltage range will the unit operate within for offshore oil platform global deployments?A: The universal AC input accepts any mains feed from 85 VAC up to 264 VAC at 47–63 Hz, covering all standard industrial grid voltages across North America, Europe, Asia, and Australia without transformer conversion.Q: I only need to monitor non-critical auxiliary cooling pumps with no ESD trip interlocks. Is single-unit operation acceptable for this low-risk rack?A: Electrically it will function, but it does not meet API 670 safety standards for any rotating machinery monitoring. For non-safety auxiliary equipment with no hard shutdown interlocks, single-supply deployment is allowable per plant internal risk assessment procedures.Q: What warranty coverage applies to refurbished surplus inventory of this power unit?A: Refurbished assemblies carry a 12-month functional warranty covering DC regulation output, fault protection circuits, and rack connector integrity. Cosmetic surface scuffs and minor terminal block wear are excluded from claim eligibility. Factory-new OEM units ship with a full 36-month manufacturer warranty.Q: Will mixing mismatched wattage power supply models in the redundant slots create cross-load instability?A: Yes. Parallel operation requires two identical assemblies with matching part numbers and production firmware revisions; mismatched units will unevenly split the rack load and trigger persistent OK LED fault alerts.Q: Does this power supply store any machine vibration or speed measurement data locally on its PCB?A: No. All steady-state and transient fault measurement data is processed and stored exclusively by the rack’s Slot 1 TDI master communication module; this component only handles raw power conversion and distribution tasks.
