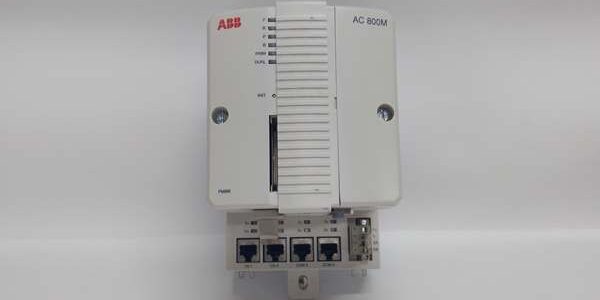

Component Snapshot At-a-Glance

• Model: PM866AK02
• Alt. P/N: 3BSE081637R1; single CPU variant PM866K01
• Product Series: ABB AC 800M DCS Controller Platform
• Hardware Type: Hot-swappable redundant-capable main processor unit paired with TP830 baseplate
• Key Feature: Dual isolated Ethernet + dual RS232 serial ports, full CPU/CEX-Bus/I/O redundancy with <10ms failover
• Primary Field Use: Execute complex continuous/batch control logic for boilers, refinery process units and water treatment plants, drives S800 I/O via CEX-Bus.

Hard-Numbers: Technical Specifications

• Protocol Support: MMS, IAC, Modbus TCP, Profibus DP, ABB proprietary CEX-Bus/ModuleBus
• Port Count: 2×RJ45 control Ethernet (CN1/CN2), 2×RJ45 RS232 serial (COM3 modem, COM4 isolated config), CompactFlash slot, front LED array, DIN rail backplane connectors
• Baud/Data Rate: Ethernet 10/100 Mbps auto-negotiate; RS232 max 115.2 kbps; CEX-Bus high-speed parallel I/O scan
• Operating Temperature: 0°C to +55°C full rated load; storage -40°C to +70°C
• Isolation Rating: 500 VAC isolation between serial/Ethernet ports and core CPU logic
• Power Draw: Typical 5.1W / Max 8.6W; 24VDC supply range 19.2–30VDC, 210mA typical / 360mA max current
• Core Hardware: 133 MHz MPC866 processor, 64MB total RAM (51.389MB user application space), onboard real-time clock
• Backup Power: Replaceable 3.6V lithium battery for RAM/RTC data retention
• Physical Size: 119mm W × 186mm H × 135mm D; full assembly weight 2.7kg
• Mount: DIN rail slide & lock mechanism; IP20 enclosure rating
• Hot Swap: Fully hot-swappable on live redundant racks without full rack LOTO

The Real-World Problem It Solves

Single non-redundant CPUs create single points of failure; minor CPU hardware or firmware faults trigger full process shutdown and lost production. Low-performance older PM860/PM864 models lack sufficient memory for advanced PID, batch and interlock logic on large refinery boiler systems. Controllers without dual Ethernet suffer total HMI/historian disconnection if one network cable or switch port fails mid-run.Where you’ll typically find it:

• Combined-cycle power plant AC 800M racks for boiler combustion, drum level and turbine auxiliary control
• Refinery distillation and hydrotreater DCS cabinets running redundant CPU pairs for 24/7 unattended operation
• Municipal water/wastewater treatment facilities with large S800 analog/digital I/O point countsDual redundant Ethernet and full CPU failover eliminate unplanned downtime, ample memory supports complex process control algorithms, and hot-swap capability cuts maintenance outage windows for critical process units.

Hardware Architecture & Under-the-Hood Logic

This standalone CPU runs independent real-time control logic separated from field I/O processing; redundant CPU pairs continuously sync application logic, I/O data and alarm buffers to enable seamless switchover if one unit faults. It relies on the TP830 baseplate for power, port routing and hardware MAC address storage.

1. 24VDC DIN rail power feeds isolated regulators for the 133MHz processor, Ethernet transceivers and serial port circuits.
2. CompactFlash slot stores the complete Control Builder M application, firmware, trend logs and event sequence records.
3. Dual CN1/CN2 Ethernet ports operate active/standby; traffic automatically reroutes to the healthy port if one link drops.
4. COM3 RS232 port supports modem remote access; isolated COM4 port locks local engineering tool access to prevent live system misconfiguration.
5. CEX-Bus expansion connector communicates with BC810/BC820 interface modules to poll all S800 I/O racks cyclically.
6. Front panel multi-color LEDs display power status, Ethernet link health, CEX-Bus activity, CPU redundancy mismatch and fault codes.
7. Lithium backup battery preserves RAM logic values and real-time clock for weeks without mains 24V rack supply.

Field Service Pitfalls: What Rookies Get Wrong

Mismatched Firmware Versions Between Redundant Primary/Standby CPUs

New technicians flash updated firmware to only one PM866AK02 in a redundant pair. Version mismatch breaks cross-CPU data sync, triggers constant redundancy mismatch alarms and disables automatic failover functionality.Field Rule: Upload identical firmware revisions to both primary and standby CPU units; run full redundancy sync test and I/O scan post-upgrade before returning the process online.

Dual-End Grounding Ethernet Cable Shields Introduces Plant Wide Network Noise

Junior technicians ground Ethernet shield braid at both the DCS cabinet and remote switch room patch panels. Parallel ground loops generate AC interference that causes intermittent tag timeouts and delayed alarm reporting to operator HMIs.Quick Fix: Terminate Ethernet cable shield only at the AC 800M control cabinet ground bar; insulate shield conductors fully at all remote network switch enclosures.

Blocked Cabinet Airflow Creates Chronic CPU Thermal Foldback

Field staff stack PM866AK02 units flush against power supply and communication modules with zero vertical clearance above/below each CPU. Internal PCB temperatures exceed 55°C, triggering watchdog resets and random loss of CEX-Bus I/O communication.Field Rule: Maintain minimum 100mm vertical empty clearance top and bottom of each CPU assembly; clean cabinet intake air filters every 90 days in oily refinery and turbine house environments.
