Component Snapshot At-a-Glance

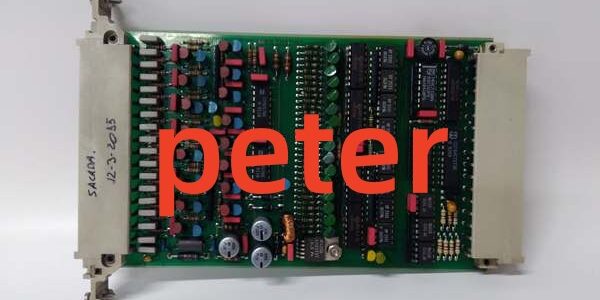

• Model: HIMA F3236
• Alt. P/N: 984323602
• Product Series: HIMatrix F3 Safety I/O Platform
• Hardware Type: 16-channel safety-rated digital input module
• Key Feature: Dual-mode input for dry contacts and 6mA current loop signals
• Primary Field Use: Collect 24VDC switch states and current signals for SIL3 ESD, F&G and BMS safety circuits.

Hard-Numbers: Technical Specifications

• Channel Count: 16 independent input channels
• Input Types: Dry contact, 6mA current loop
• Response Time: 8 ms typical
• Isolation Rating: 1500VAC field-to-backplane isolation
• Operating Temperature: -20°C to +60°C
• Power Draw: 5VDC @ 120mA, 24VDC @ 200mA
• Max Line Resistance: 11 Ω total per channel
• Form Factor: 4TE standard HIMatrix rack module
• Hot-Swap Support: Enabled for online replacement
• Certifications: IEC 61508 SIL3, TÜV, ATEX II 3G Ex nA IIC T4 Gc

The Real-World Problem It Solves

Basic digital input modules lack dual-mode sensing and full channel isolation. Open wiring and high line resistance create undetected faults that leave safety loops unprotected.Where you’ll typically find it:

• Refinery ESD racks for emergency stop buttons and process trip switches
• Offshore F&G panels for flame detectors, gas sensors and manual alarm stations
• Power plant BMS for burner interlocks and furnace pressure limit switchesThis module detects both contact state and wire breaks while blocking interference across all 16 channels.

Hardware Architecture & Under-the-Hood Logic

This is a non-intelligent I/O module with no onboard microprocessor. It relies on optical isolation and dual sampling circuits controlled by the main HIMatrix controller over the backplane.

1. Field dry contacts or 6mA current signals enter per-channel surge suppression components.
2. Signals pass through optocouplers to maintain 1500VAC isolation between field and logic side.
3. Internal circuits sample input status continuously and check for open circuit conditions.
4. Sampled data is transmitted to the main controller via the safety backplane bus.
5. Any channel fault is flagged to the controller for on-screen diagnostics and alarm output.

Field Service Pitfalls: What Rookies Get Wrong

Using Non-Safety Rated Field ContactsStandard single-circuit switches cannot trigger wire break detection. The module fails to identify open lines in active safety loops.

• Field Rule: Use paired normally open and normally closed safety contacts or dedicated 6mA current sensors for full diagnostics.

Exceeding Maximum Line ResistanceLong cable runs with small gauge wire push total resistance over 11 Ω. Input signals become unstable and trigger intermittent false states.

• Quick Fix: Use 18AWG wire for runs longer than 50 meters. Measure total loop resistance before commissioning.

Combining Safety and Non-Safety GroundsTying safety circuit 24V returns to general plant ground creates ground loops. Common-mode noise causes random input flutters.

• Field Rule: Maintain fully isolated 24VDC power for all inputs. Do not share grounds with standard PLC or DCS circuits.
