Component Snapshot At-a-Glance

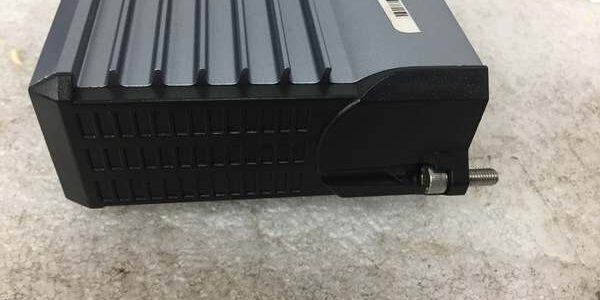

- Model: FBM207B
- Alt. P/N: No direct OEM cross; sibling variants FBM207, FBM207C for differing input voltage ratings
- Product Series: Foxboro I/A Series 200-Series FBM Discrete I/O Family
- Hardware Type: Rack plug-in isolated discrete input PCB, DB36 edge connector mates with dedicated FTA terminal bases
- Key Feature: Hardware-timestamped SOE logging plus per-channel 250Hz pulse counting without external auxiliary boards
- Primary Field Use: Collect breaker position, limit switch and equipment auxiliary contact status across process control racks.
Hard-Numbers: Technical Specifications
- Protocol Support: Exclusive I/A proprietary fieldbus backplane communication, no external fieldbus onboard
- Port Count: 16 galvanically isolated DI input channels; single DB36 interface to site FTA
- Baud/Data Rate: Fixed internal backplane clock speed; pulse sampling up to 250Hz per single channel
- Operating Temperature: 0°C ~ +60°C continuous rated; derate load above 55°C inside fully sealed cabinets
- Isolation Rating: 1500V channel-to-logic galvanic isolation per individual input point
- Power Draw: Max 8.5W total consumption, 24VDC sourced directly from I/A rack backplane
- Input Threshold: 5VDC max OFF state, 15~60VDC valid ON wet contact trigger, 1.4mA typical loop draw at 24VDC
- Configurable Debounce: Software selectable filter: 0ms,4ms,8ms,16ms,32ms per channel via I/A control configuration
The Real-World Problem It Solves
Non-isolated multi-point DI modules let single field surge short drop an entire 16-point bank of equipment feedback tags during motor starter inrush or lightning transients. Older non-SOE DI hardware could not pinpoint exact trip timing during unit shutdown root-cause reviews.Where you’ll typically find it:
- Coal-fired power boiler BMS rack: Fan lube oil switches, furnace damper limit feedback and MCC breaker auxiliary contacts
- Refinery ESD safety cabinet: Emergency shutdown valve limit switches and compressor trip interlock dry contacts
- Natural gas compressor skid control rack: High/low pressure mechanical switch discrete status collectionSingle-card isolation and native SOE cut post-trip troubleshooting hours by eliminating blind spot missing timestamped fault data.
Hardware Architecture & Under-the-Hood Logic
This module houses dedicated onboard ASIC for channel sampling and SOE timestamping, independent from host FCP processing; each input path uses standalone optocoupler barrier separating noisy field wiring from rack logic ground.
- Incoming dry/wet contact voltage feeds isolated optocoupler on each respective channel to convert field potential into internal 5V logic level
- Selected software debounce filter blocks mechanical contact bounce before sampled data locks into local onboard register
- Onboard hardware clock stamps millisecond accurate timestamp for any channel state change for SOE archive storage
- Local buffer IC compiles all 16 channel status and SOE event data before packaging frames for backplane transmission to FCP controller
- External pulse signals get counted via dedicated edge-detect circuitry, accumulated values pulled periodically over fieldbus to DCS database
Field Service Pitfalls: What Rookies Get Wrong
Mismatched FTA Terminal Base Voltage RatingTechs mount 120VAC rated P0914WF onto for standard 24VDC dry contact wiring; excess input potential burns internal optocoupler circuitry and triggers steady FAULT lamp.
- Field Rule: Pair 24VDC site wiring with P0914WH only; reserve WF/WG for 120VAC/240VAC field signals.
Incorrect Debounce Setting For Pulse Meter InputsSetting 32ms channel filter on flowmeter pulse inputs truncates fast pulses; DCS totalizer registers lower cumulative flow than actual site throughput.
- Quick Fix: Switch pulse channels to 0ms filter setting and confirm max input frequency stays below rated 250Hz limit.
Improper Redundancy Adapter InstallationInstalling dual redundant without specified shared redundancy jumper adapter creates conflicting loop bias; sporadic random channel dropout during rack thermal cycling.
- Field Rule: Use Foxboro designated redundancy base when pairing duplicate onto single shared FTA terminal assembly.
