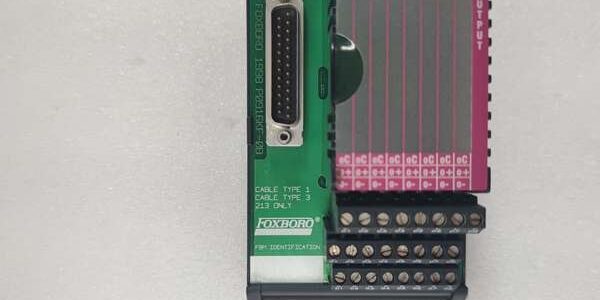

Component Snapshot At-a-Glance
- Model:
- Alt. P/N: Cross variants AD202MW, AD202MV (pin-compatible firmware differentiated)
- Product Series: Foxboro I/A Series DCS Single Station Controller Family
- Hardware Type: Rack-mount standalone field control processor, backplane master for FBM I/O modules
- Key Feature: Native onboard regulatory PID + discrete logic execution without upper FCP host dependency
- Primary Field Use: Standalone closed-loop control for small process skids, boiler auxiliary subsystems and remote tank farm DCS cabinets.
Hard-Numbers: Technical Specifications
- Protocol Support: Proprietary I/A Fieldbus backplane; uplink Modbus-RTU/RS485 for SCADA host polling
- Port Count: Internal backplane bus port + 1x RS485 terminal communication port, no direct field I/O wiring terminals
- Baud/Data Rate: Backplane fixed internal clock; RS485 configurable 1200~38400bps Modbus rate
- Operating Temperature: -20°C ~ +60°C continuous rated; derate above +55°C inside fully sealed cabinets
- Isolation Rating: 1500V isolation between RS485 communication port and internal logic circuit
- Power Draw: 4.1W nominal, 24VDC rack backplane powered, 250mA typical operating current
- Max FBM Loading Capacity: Drives up to 128 total FBM modules (max 64×100-series + remainder 200-series FBM)
- Onboard Conversion Precision: Internal 16-bit DAC/ADC for local loop calculation, ±0.1% full-scale calculation accuracy
The Real-World Problem It Solves
Small process skids historically required full-size central FCP rack to run PID and interlock logic, wasting expensive cabinet rack space and forcing oversize spare part inventory. Remote unmanned tank sites lacked standalone control hardware, requiring constant host DCS uplink to maintain valve/level closed-loop regulation.
Where you’ll typically find it:
- Combined-cycle power plant boiler blowdown skid cabinet: Feedwater level PID + drain valve interlock logic
- Refinery offloading tank farm remote cabinet: Tank level regulation and pump start-stop discrete control
- Wastewater treatment chemical dosing skid: Flow proportional reagent feed closed-loop control
Single-unit standalone CPU eliminates large central controller requirement and sustains full local control if SCADA host communication drops offline entirely.
Hardware Architecture & Under-the-Hood Logic
carries dedicated standalone control MCU separate from rack main backplane arbitration chip; onboard nonvolatile flash stores user control logic to retain configuration after full power cycle loss.
- Backplane bus scans all connected FBM channels sequentially to pull raw AI/DI field measurement values into local RAM register pool
- Onboard processor executes preloaded PID equations and discrete interlock ladder logic per user configured scan cycle
- Calculated setpoint outputs get packaged and pushed back over fieldbus to corresponding AO/DO FBM output channels
- Alarm and process tag data buffered locally before packing into Modbus frames for outbound RS485 SCADA transmission
- Built-in hardware watchdog triggers safe fail-state output preset if internal processor hangs or scan cycle timeout occurs
Field Service Pitfalls: What Rookies Get Wrong
Overloading Backplane With Excessive High-Power FBM CardsNew tech stacks dozens of high-wattage FBM241/FBM203 on single backplane exceeding total bus current rating; intermittent FBM dropouts and sporadic control scan freeze during peak load cycles.
- Field Rule: Split dense high-power I/O across two separate racks once FBM count exceeds 90 total modules.
Improper RS485 Bus Termination At Cable EndpointsUnfitted 120Ω end termination resistor on Modbus trunk creates signal reflection; random missing SCADA tag values and delayed alarm uploads.
- Quick Fix: Install factory specified 120Ω resistor only at physical two far endpoints of trunk cable.
Loading latest MU firmware revision onto rack populated with legacy 100-series FBM; incompatible bus handshake causes continuous rack FAULT red LED and zero I/O data acquisition.
- Field Rule: Match controller firmware revision to FBM production date per Foxboro I/A hardware compatibility matrix prior to commission download.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
