Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB PDP22-FBP |
| Manufacturer | ABB |
| Product category | Industrial Communication Module |
| Operating Voltage | 24V DC (19.2 – 31.2V DC) |
| Power Consumption | 31 mA at 31.2V, 37 mA at 24V, 46 mA at 19.2V |
| Communication Interface | PROFIBUS DP (V0 and V1) |
| Data Transfer Rate | Up to 12 Mbit/s |
| Protection Rating | IP65 |
| Dimensions (W x H x D) | Varies by cable length (e.g., 0.25m, 0.5m, 1m, 2m, 5m) |
| Weight | Varies by cable length (e.g., 0.09 kg for 0.25m, 0.35 kg for 5m) |
| Certifications | CE, cUL |
| Operating Temperature Range | 0°C to +55°C |
| Storage Temperature Range | -20°C to +70°C |

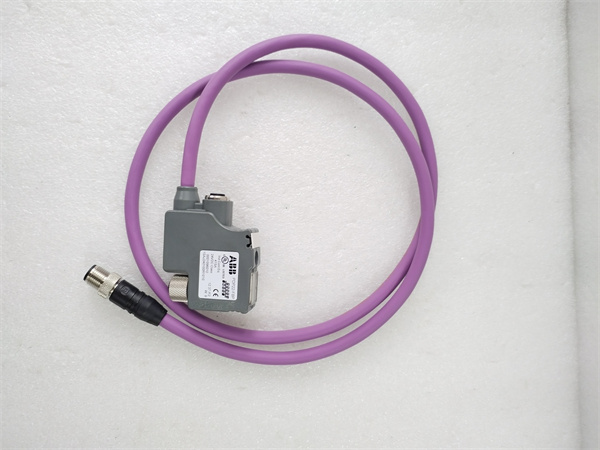

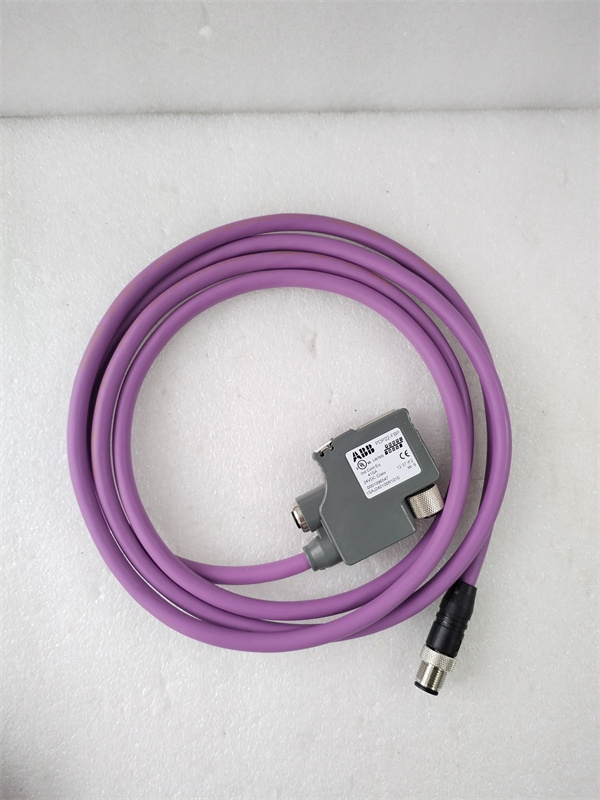

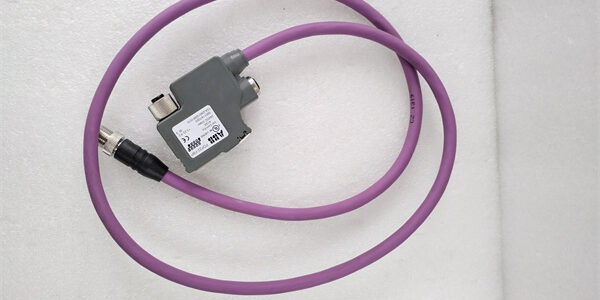

ABB PDP22-FBP
Product Introduction
The ABB PDP22-FBP is a high-performance industrial communication module designed to establish a reliable connection between PROFIBUS DP networks and terminal devices. It is widely used in industrial automation and power systems for efficient data communication and signal conversion.
Core Advantages and Technical Highlights
High-Speed Data Transfer:
-
The ABB PDP22-FBP supports data transfer rates of up to 12 Mbit/s, ensuring efficient and fast communication in industrial environments.
Robust Industrial Design:
-
With an IP65 protection rating, the module is designed to withstand harsh industrial conditions, including dust and water ingress.
Easy Installation and Maintenance:
-
The module features status LEDs that provide real-time information about the bus status and connected devices, simplifying troubleshooting and maintenance.
Versatile Applications:
-
The ABB PDP22-FBP is suitable for a wide range of industrial applications, including motor control centers, power systems, and automation lines.
Certifications and Compliance:
-
The module is certified to international standards such as CE and cUL, ensuring reliability and compatibility in global industrial settings.
ABB PDP22-FBP
Typical Application Scenarios
The ABB PDP22-FBP is widely used across various industrial sectors:
-
Manufacturing: For connecting motor starters and other terminal devices to PROFIBUS DP networks.
-
Power Systems: For efficient communication between control systems and power equipment.
-
Automation: For integrating various devices into a unified communication network, enhancing process control and monitoring.
Related Model Recommendations
-
PDP21-FBP: A similar module for PROFIBUS DP-V0 applications.
-
PDQ22-FBP: A module that allows up to four FBP units to be connected to the PROFIBUS DP, offering enhanced connectivity options.
-
PDA11-FBP.050: An adapter cable for PROFIBUS DP, providing additional flexibility in system design.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation:
-
Ensure the installation environment meets the specified temperature and humidity requirements. The module should be installed in a location with adequate ventilation to dissipate heat. Verify that the power supply voltage is within the specified range (24V DC) to avoid damage to the module.
Maintenance Suggestions:
-
Regularly inspect the installation to ensure the module is securely mounted and all connections are tight. Monitor the operational status of the module using the status LEDs to detect any signs of malfunction early. Conduct functional testing on the module at least once a year to ensure optimal performance.
Service and Guarantee Commitment
ABB provides comprehensive support for the ABB PDP22-FBP, including a robust warranty that ensures product quality and reliability. The company offers extensive after-sales services such as technical support, repair services, and spare part supply. ABB’s global network of service centers ensures prompt assistance and expert guidance, demonstrating the company’s commitment to customer satisfaction and product excellence.
