Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB PCD235A101 3BHE032025R0101 |
| Manufacturer | ABB |
| Product category | Industrial Control Module |
| Operating Voltage | 24V DC (±10%) |
| Power Consumption | <4W |
| Communication Interface | Modbus TCP/IP, RS485, CAN Bus, Ethernet/IP |
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Protection Rating | IP20 |
| Dimensions (W x H x D) | 132 mm x 105 mm x 52 mm |
| Weight | 1.5 kg |
| Certifications | CE, UL, IECEx |

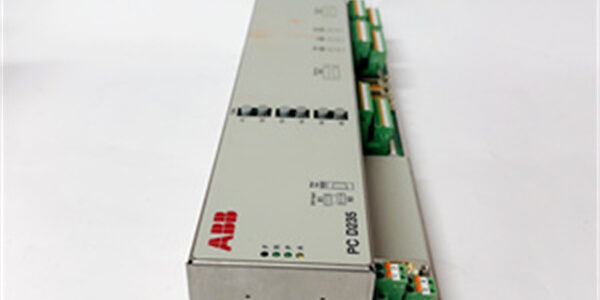

PCD235A101 3BHE032025R0101
Product Introduction
The ABB PCD235A101 3BHE032025R0101 is a high-performance industrial control module designed for precise and reliable control in various industrial automation applications. It is part of the ABB PCD235A series, known for its robustness and flexibility in harsh industrial environments.
Core Advantages and Technical Highlights
High Performance and Reliability:
-
The ABB PCD235A101 3BHE032025R0101 features a high-performance ARM Cortex-A9 dual-core processor running at 1.2 GHz, providing up to three times the performance of its predecessor (e.g., PCD230) with floating-point operation acceleration.
-
It supports up to 1024 PID loops with configurable sampling times as short as 1ms, making it suitable for high-speed control applications such as hydraulic servo systems.
Advanced Communication Capabilities:
-
The module supports multiple communication protocols, including Modbus TCP/IP, RS485, CAN Bus, and Ethernet/IP, ensuring seamless integration with existing industrial networks and systems.
Robust Industrial Design:
-
Designed for harsh industrial environments, the module features an IP20 protection rating and operates reliably within a wide temperature range of -20°C to +60°C.
User-Friendly Configuration:
-
The module supports programming in multiple IEC 61131-3 standard languages, including Function Block Diagram (FBD), Ladder Logic (LD), and Structured Text (ST), providing flexibility for users to customize control logic.
Energy Efficiency:
-
With low power consumption (<4W), the module is designed to optimize energy use without compromising performance.
PCD235A101 3BHE032025R0101
Typical Application Scenarios
The ABB PCD235A101 3BHE032025R0101 is widely used across various industrial sectors:
-
Manufacturing: For precise control of robotic arms, CNC machines, and packaging lines.
-
Energy Management: For monitoring and controlling valve positions and conveyor belts in power plants.
-
Process Control: For precise position and speed control in industrial processes.
-
Robotics: For joint control and motion synchronization in robotic systems.
Related Model Recommendations
-
ABB ACS800: A frequency converter that works seamlessly with the ABB PCD235A101 3BHE032025R0101 for complete control solutions.
-
ABB ACS850: Another compatible frequency converter that benefits from the control capabilities of the ABB PCD235A101 3BHE032025R0101.
-
ABB ACS550: A versatile frequency converter that can utilize the ABB PCD235A101 3BHE032025R0101 for enhanced control.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation:
-
Ensure the installation environment meets the specified temperature and humidity requirements. The module should be installed in a location with adequate ventilation to dissipate heat. Verify that the power supply voltage is within the specified range (24V DC) to avoid damage to the module.
Maintenance Suggestions:
-
Regularly inspect the installation to ensure the module is securely mounted and all connections are tight. Monitor the operational status of the module to detect any signs of malfunction early. Conduct functional testing on the module at least once a year to ensure optimal performance.
Service and Guarantee Commitment
ABB provides comprehensive support for the ABB PCD235A101 3BHE032025R0101, including a robust warranty that ensures product quality and reliability. The company offers extensive after-sales services such as technical support, repair services, and spare part supply. ABB’s global network of service centers ensures prompt assistance and expert guidance, demonstrating the company’s commitment to customer satisfaction and product excellence.
